SIEMENS SITRANS P220 (Kopie)

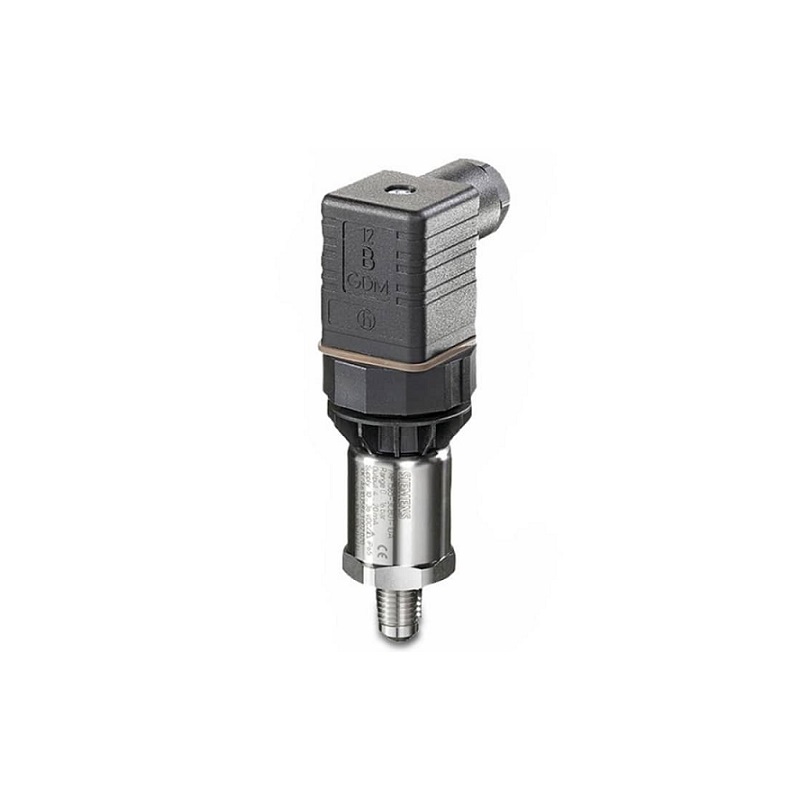

SITRANS P200, P210 and P220 are compact single-range transmitters for measuring absolute and gauge pressure. These series use two types of pressure sensors: two stainless steel sensors and one ceramic diaphragm sensor. This makes it easy to measure process, absolute and hydrostatic pressure. The determined pressure is optionally converted into a 4-20 mA or 0-10 V signal.

Detail

Nonlinearity: ≤ 0,25 %

Long-term stability: ≤ 0,25% / 12 Monate

Measuring range

SITRANS P200: 1 bar to 60 bar gauge

                           0,6 bar to 16 bar absolute

SITRANS P210: 100 mbar to 600 mbar gauge

SITRANS P220: 2,5 bar to 1000 bar gauge

Benefits

• Robust by rugged stainless-steel enclosure and compact design
• High overload capacity
• Suited for a broad range of application: for aggressive and non-aggressive media as well as for measuring the pressure of liquids, gases and vapors
