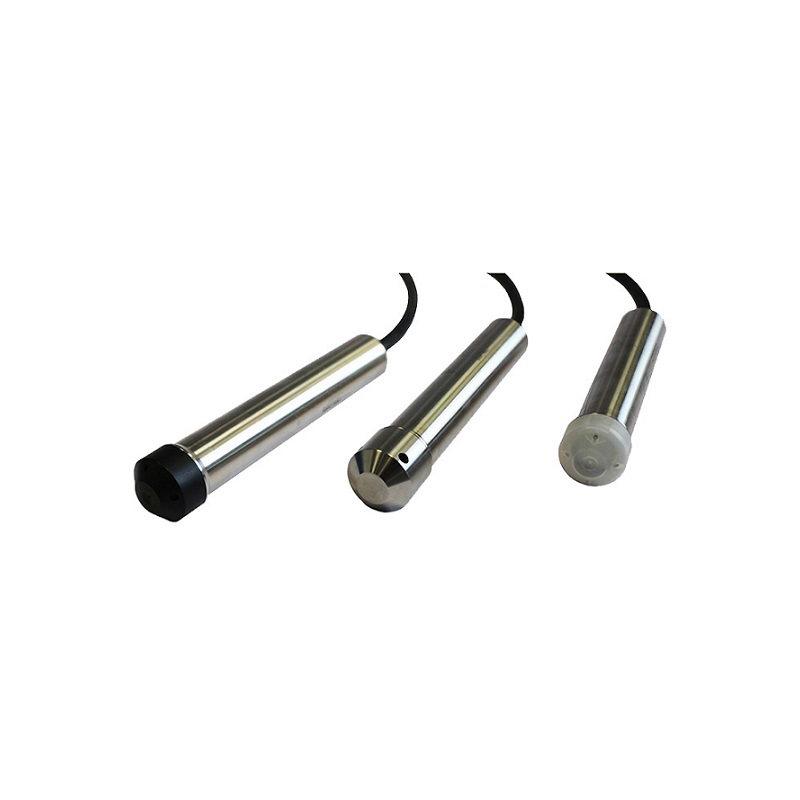

SIEMENS SITRANS LH300 submersible sensor (Kopie)

SITRANS LH300 is a well probe for hydrostatic level measurement with protective caps made of PPE, stainless steel or ETFE. The transmitter converts the pressure into a standard 4 - 20 mA signal. SITRANS LH300 is suitable for tanks, channels and dams, as well as for drinking water systems thanks to the stainless steel housing and piezoresistive sensor with ceramic membrane.

Detail

Accuracy: 0.15 %

Long-term stability: 0.15 % / 12 months

Measuring range: 0 – 1 mH2O to 0 – 40 mH2O

Housing: 316L stainless steel housing (Ø 29 mm), IP68 rated

Diaphragm: 99,6 % ceramic

Cable: PE sheathing; Ø 6 mm with vent pipe

Cable length standard: 5, 10, 20, 30 or 50 m, special lengths up to 1000 m are possible

Certificates/ approvals: Explosion-protected version according to IEC Ex and ATEX

Benefits

• Easy installation and use due to compact design and corrosion-resistant material
• Safe application due to vent pipe in connection cable to prevent condensate formation
• Long service life due to protection of the measuring diaphragm against external influences by protective cap

Standard measuring set: Transmitter, cable hanger, junction box
