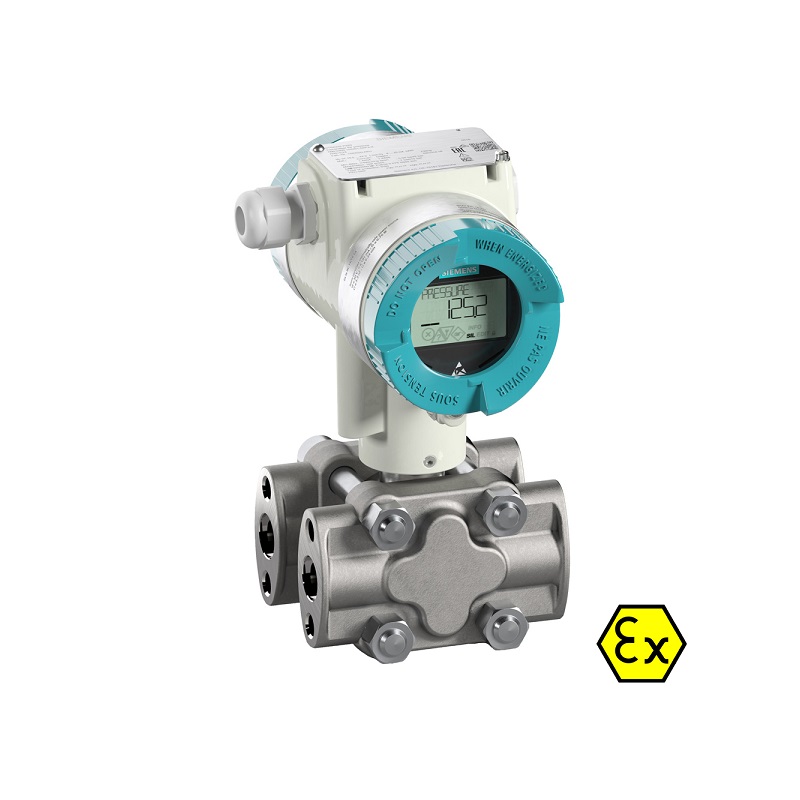

SIEMENS SITRANS P320

SITRANS P320/420 are the first pressure transmitters with remote safety handling: It enables the user to program all devices from the control room instead of each individual transmitter on site. This shortens commissioning, especially in applications that require functional safety. A test period of up to 15 years instead of the usual 2 years ensures low maintenance costs.

Detail

Accuracy: 0.065 % (SITRANS P320), 0.04 % (SITRANS P420)

Response time: Down to 105 ms

Long-term stability: ≤ 0.125 % / 5 years

Measuring cells: From 8 inH2O to 10,000 psi

Max. turndown: 100:1

Measured medium temperature: -40 °F to +212 °F

Certificates/approvals: FM, CSA, ATEX, IEX EX, NEPSI and others

SIL-2/3 certification: Developed according to IEC 61508 standards

HART7 communication

Communication: 4-20 mA/HART, PROFIBUS PA, FOUNDATION Fieldbus (coming soon)

Diaphragm materials: Stainless steel, Hastelloy, Tantalum, Monel, Gold

Benefits of the SITRANS P320/420 pressure transmitters

• Reduced commissioning time due to remote safety handling
• Suitable for harsh conditions due to robust materials
• User-friendly design: large, clear display; diagnostic icons acc. to NAMUR NE107; and quick start wizard
• Pushbutton operation
• Maintenance cost reduction due to proof test interval up to 15 years
• Fast reaction and optimized processes due to reduced response time
