HART FIELD COMMUNICATORS APLIENS MODEL KAP-03 and KAP-03Ex

* Raport 2 software

RAPORT 2 is a software designed for communication and data transfer from transmitters with Hart or Modbus protocol made by APLISENS.

The communication with the transmitters enables:

- Identification of a transmitter,

- Configuration of its output parameters:

- Reading of a PV values (e.g. pressure, output current, degree of output setting in %).

- Enforcement of output current with a given value,

- Transmitter calibration in relation to master pressure,

- Function linearization (user characteristic creator),

- Zeroing

* Aplisens Mobile Configurator

Aplisens Mobile Configurator is an Android application designed for communication and data transfer from transmitters with Hart or Modbus protocol made by APLISENS.

The communication with the transmitters enables:

- Supports wireless Bluetooth connection

- Read basic device information

Configure device's Tag, Descriptor, Message, Address, etc.

Monitor process variables

Configure range and units

Set/Unset write protection

Configure specific features of pressure transmitters (LCD, alarms, transfer function, user variable)

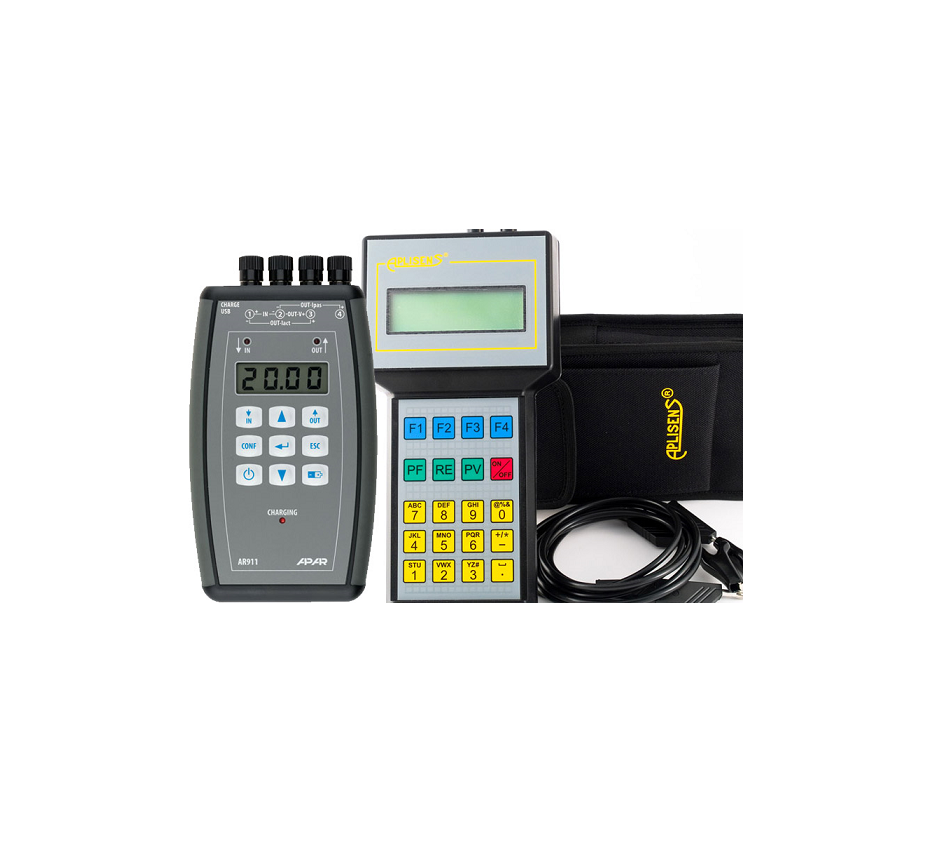

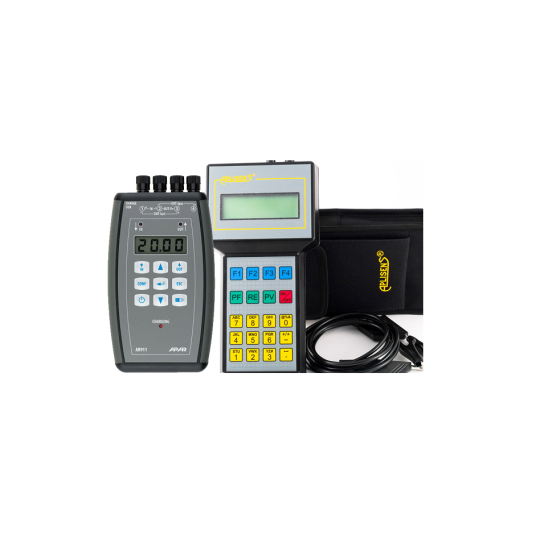

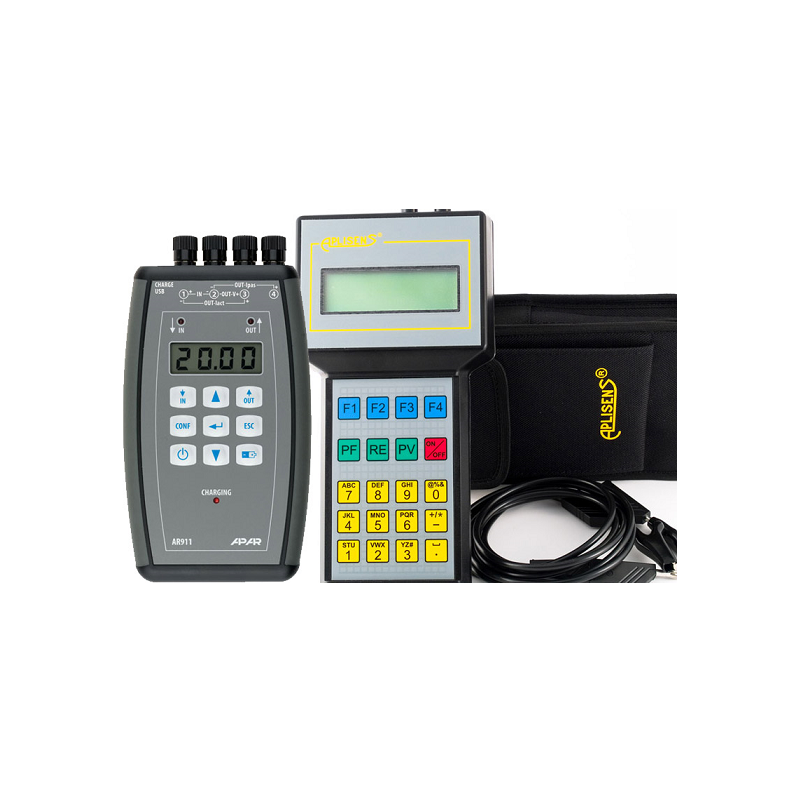

* Hart Field Communicators KAP-03 and KAP-03Ex

Specification:

The KAP-03 (KAP-03Ex)  HART field communicator is a portable battery supplied device used for communication and exchange of data with smart transmitters e. g. pressure, differential pressure transmitters. It features an output built as a standard current loop 4-20 mA, using FSK modulation type BEL 202 with an implemented HART communication protocol revision 5 and revision 6. The communicator is specially designed to configure smart transmitters manufactured by APLISENS.

* HART/USB converter

HART/USB converter allows for connecting and configuration of Hart

transmitters via USB port. It works also with devices equipped in Bluetooth.
