FITTING ACCESSORIES - VALVES APLISENS

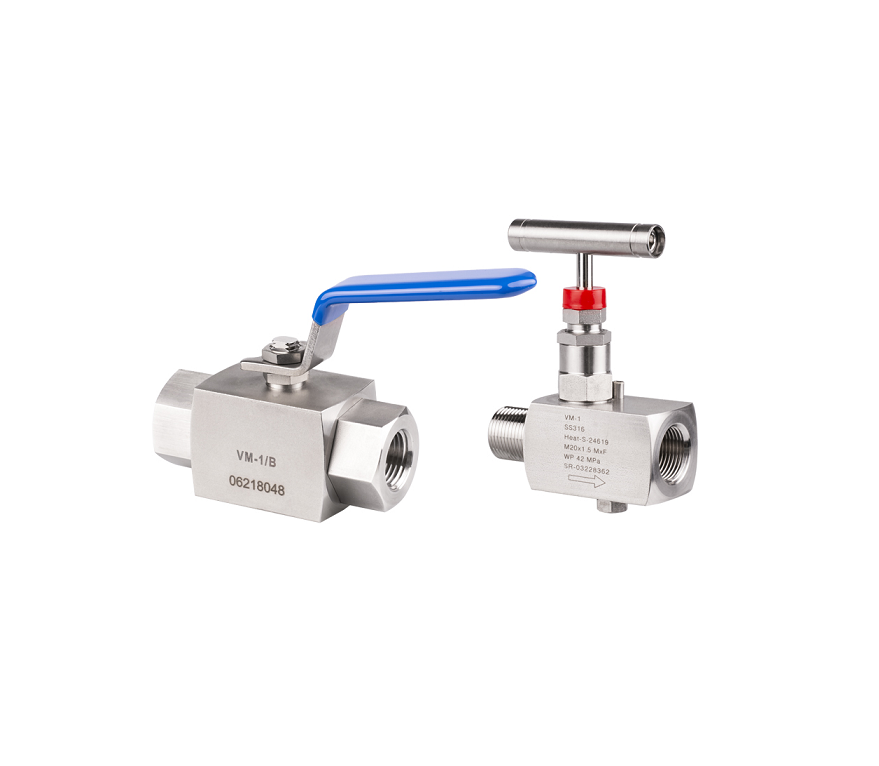

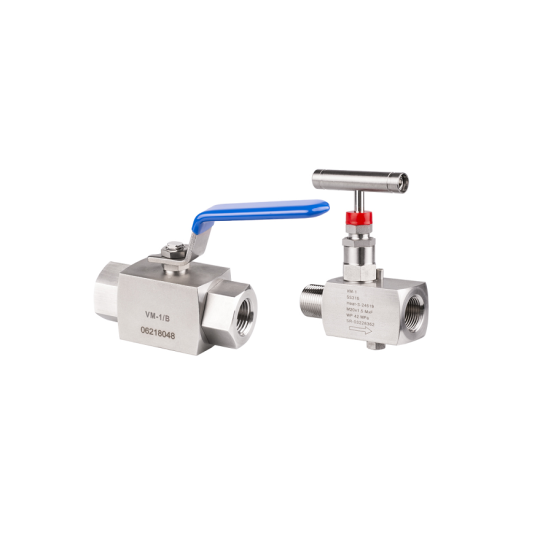

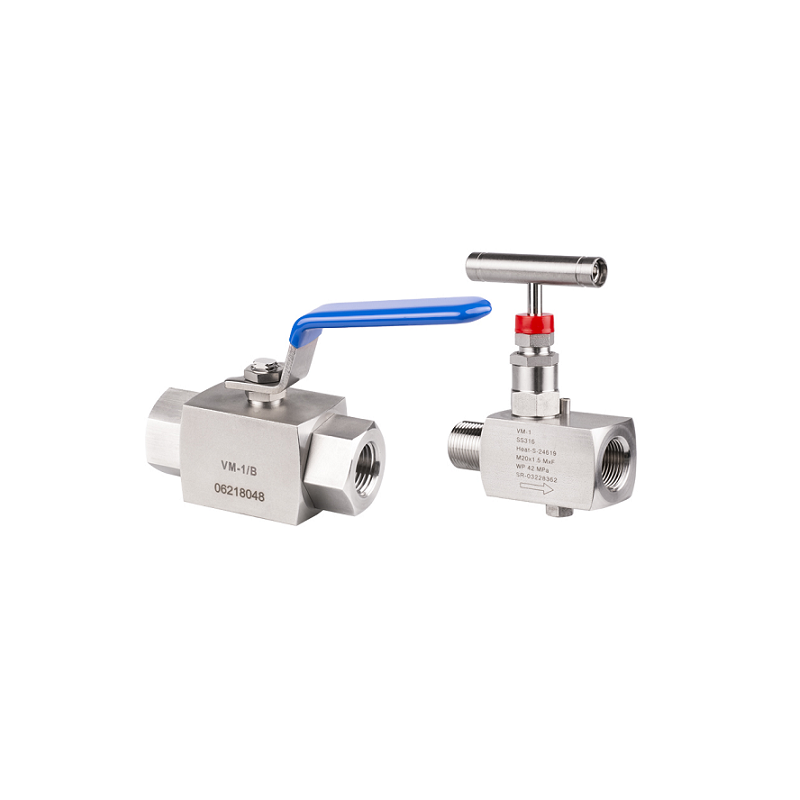

* Needle valve VM-1
Material: SSS316
Medium temperature, working pressure – according to the graph on page III/ 7
Ordering code:
      Valve VM-1/M (input M20×1 .5 M, output M20×1 .5 F, Teflon packing)
      Valve VM-1/G (input G1/2 M, output G1/2 F, Teflon packing
      Valve VM-1/graphite (input M20×1 .5 M, output M20×1 .5 F, Graphite packing)
      Valve VM-1 oxygen (valve designed for contact with oxygen; input M20×1 .5 M, output M20×1 .5 F, Teflon packing)
* Needle valve VM-1-R/R
Material: SS316
Medium temperature, working pressure – according to the graph on page IV/ 3
Input: 1/2NPT F,
Output: 1/2NPT F
Graphite packing, no vent port
Ordering code:
Valve VM-1-R/R/__
      1 – Set of weldable stainless steel connectors (316ss)
      2 – Set of weldable steel connectors (K11562)
      3 – Set of connectors with _12 clamping ring
      4 – Set of connectors with _14 clamping ring
* 2-Valve Manifold VM-2
Material: SS316
Medium temperature, working pressure – according to the graph on page IV/ 3
Input: 1/2NPT F
Output: 1/2NPT F
Teflon packing, vent port ¼ NPT F
Ordering code:
Valve VM-2-R/R/_
Valve VM-2-R/R/__
      1 – Set of weldable stainless steel connectors (316ss)
      2 – Set of weldable steel connectors (K11562)
      3 – Set of connectors with _12 clamping ring
      4 – Set of connectors with _14 clamping ring
Option: .../NACE - NACE MR-01-75 comply
* 2-Valve Manifold VM-2-RM
Material: SS316
Medium temperature, working pressure – according to the graph on page IV/ 3
Input: 1/2NPT F
Output: 1/2NPT F
Teflon packing, vent port ¼ NPT F
Ordering code:
      Valve VM-2-RM/M (input M20x1.5 M, output M20x1.5 F, Teflon packing, vent port ¼ NPT F
      Valve VM-2-RM/G (input G1/2" M, output G1/2" F, Teflon packing, vent port ¼ NPT F
      Valve VM-2-RM/1/2NPT (input 1/2"NPT M, output 1/2"NPT F, Teflon packing, vent port ¼ NPT F
      Option: .../NACE - NACE MR-01-75 comply
* Ball valve
Material: SS316
Medium temperature: - 80°C
Max pressure: - 100 bar
Input, output process connection: 1/2NPT F
Ordering code:
      Valve VM-1/B
