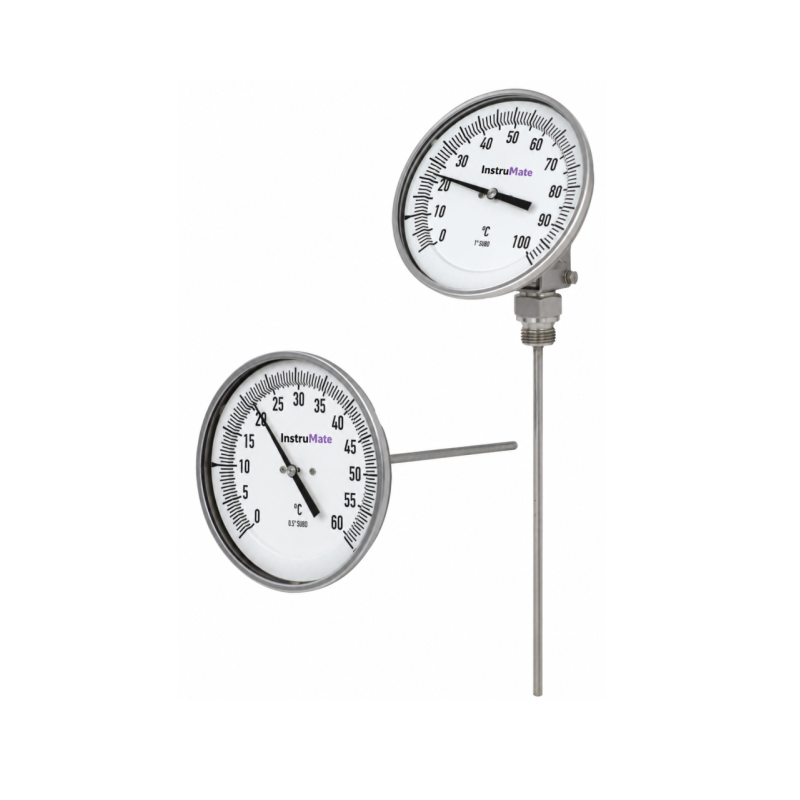

ĐỒNG HỒ ĐO NHIỆT ĐỘ INSTRUMATE MODEL 415

Description: The model 415 bimetal industrial thermometers are full stainless steel temperature gauges whose stem length and thread types are
offered in various combinations. This allows them to be fit for many industrial applications not requiring a better ingress protection than IP65.
InstruMate model 415 has a fast reaction to temperature increase thanks to its high quality bimetal sensor.
Applications
* Temperature indication of liquids and gases under process
* Chemical & Petrochemical plants
* Machine building, food industry, piping
Special Features
* Cost effective industrial temperature measurement
* Fast reaction of bimetal sensor
* Flexible choice of stem length and connection designs
* Bimetal with zero adjustment at the back of case
Specification
Design: EN 13190
Nominal Sizes in mm: 50, 63, 75, 100, 125
Scale Ranges in °C: -30…+50, -30…+60, -30…+70, -20…+120, 0…60, 0…100, 0…120, 0…160, 0…200, 0…250, 0…300, 0…400, 0…500
Standard Insertion Lengths in mm: 50, 63, 80, 89, 100, 150, 200, 300, 400, 500, 600, 700, 800, 900, 1000, …
Mounting: Lower Mount (L) or  Back Mount (B)
Working Range: According to measuring range per EN 13190
Case: Stainless Steel
Pointer: Aluminum, Adjustable Pointer
Window: Glass
Temperature Element: Bi-metal sensor
Storage & Transport: -20…+60 °C
Stem Material: SS316
Stem Diameter: 6mm
Dial: Aluminium
Pressure limitation at Stem: Max. 20 bar
Temperature Units: °C (centigrade)
Accuracy: Class 1
Ingress Protection: IP43
Options
* Other temperature units (F) or dual scale (C/F)
* Supplying suitable thermowell per customer request
* Special dial designs for special applications
* Other wetted parts (SS304, SS316L)
* Other scale units
