ĐỒNG HỒ ĐO NHIỆT ĐỘ INSTRUMATE MODEL 413

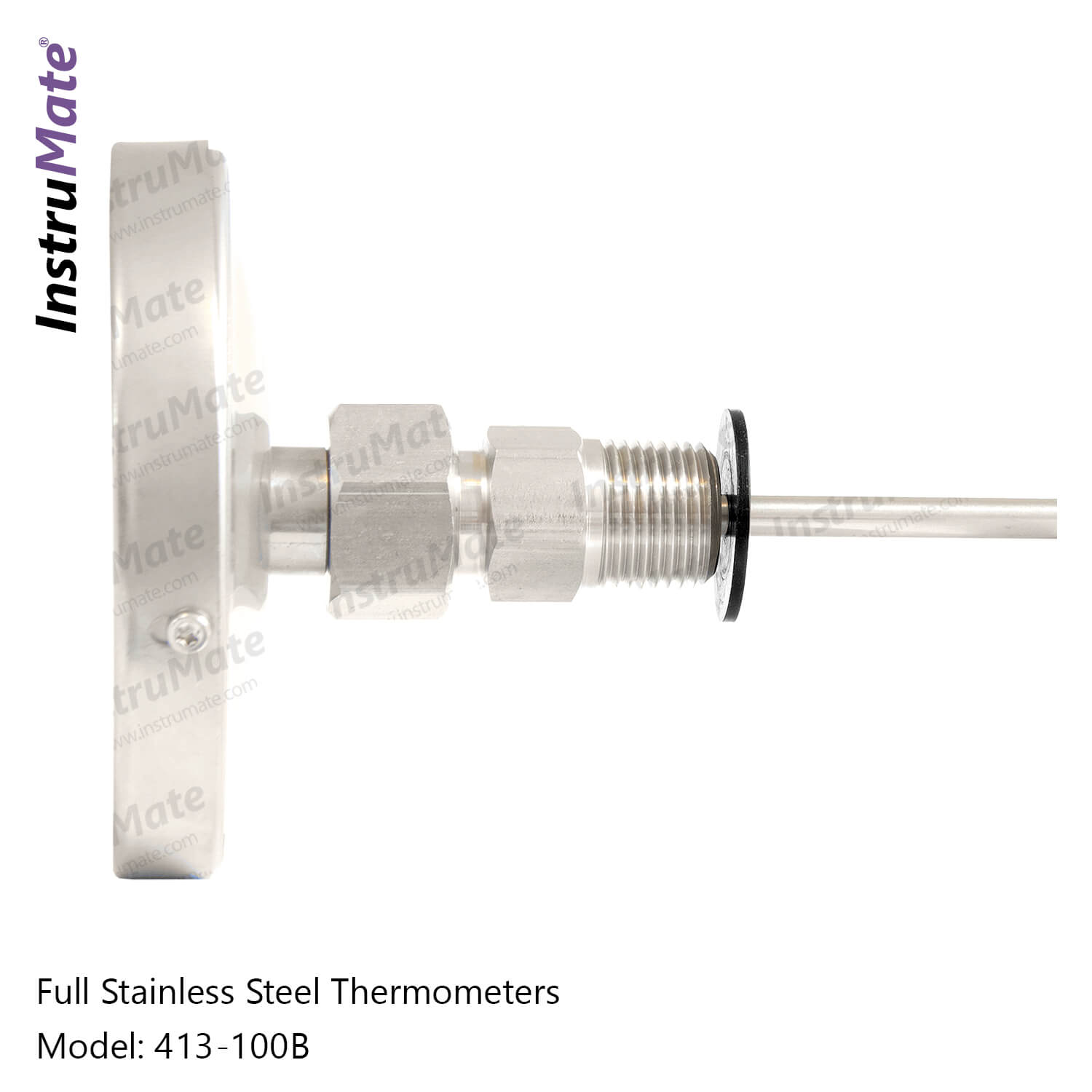

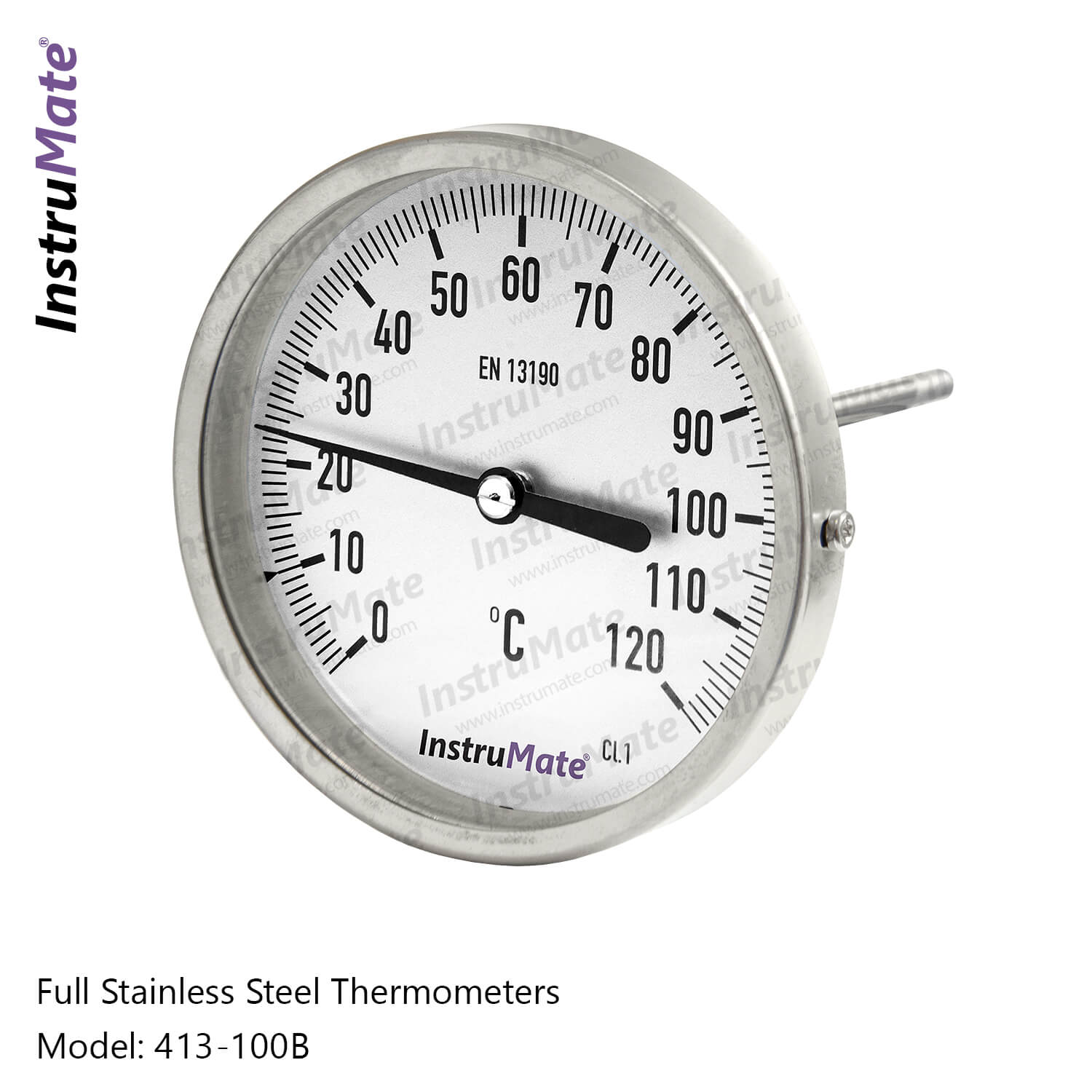

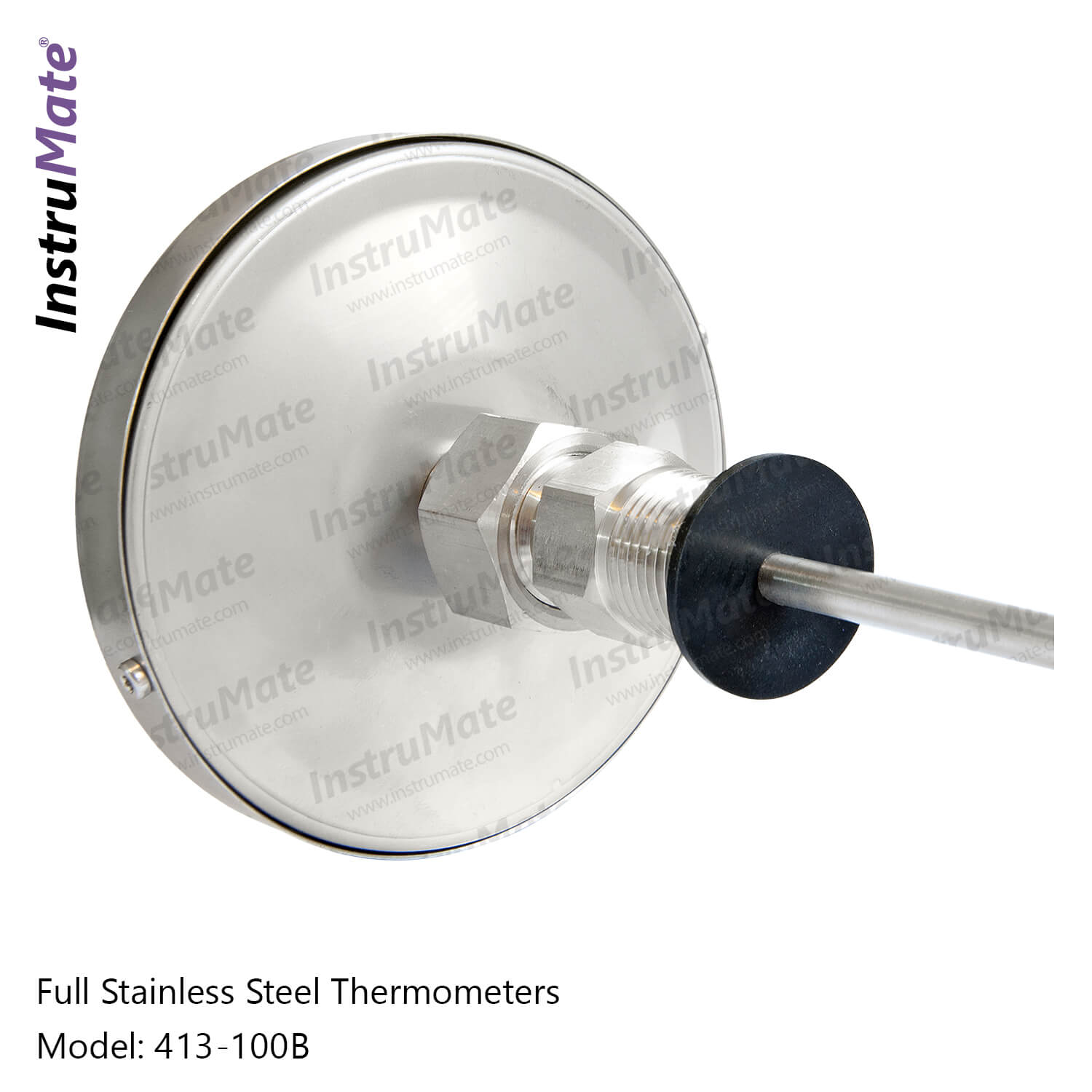

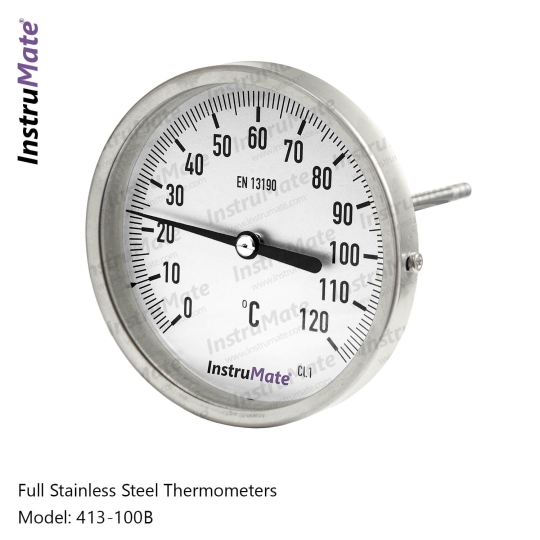

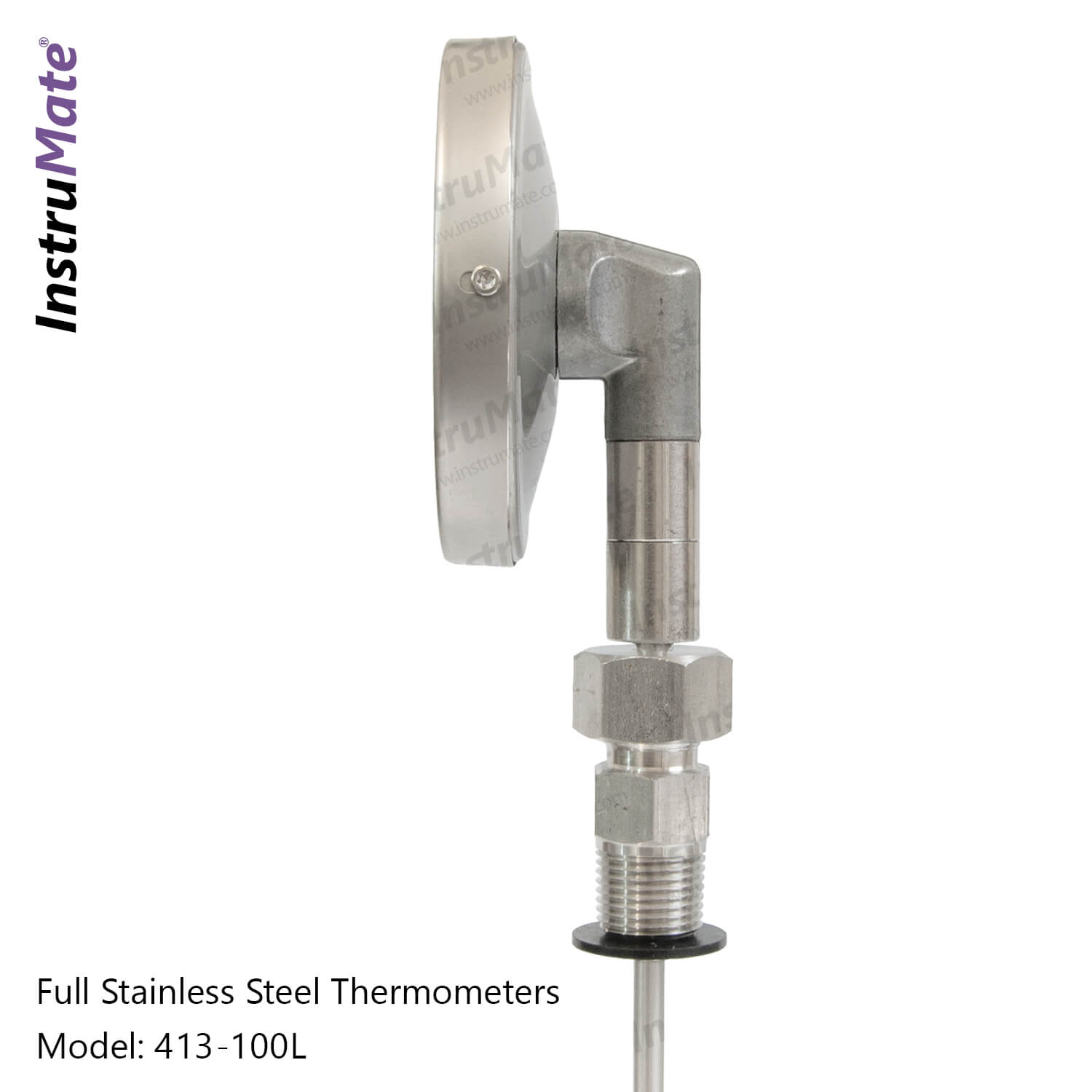

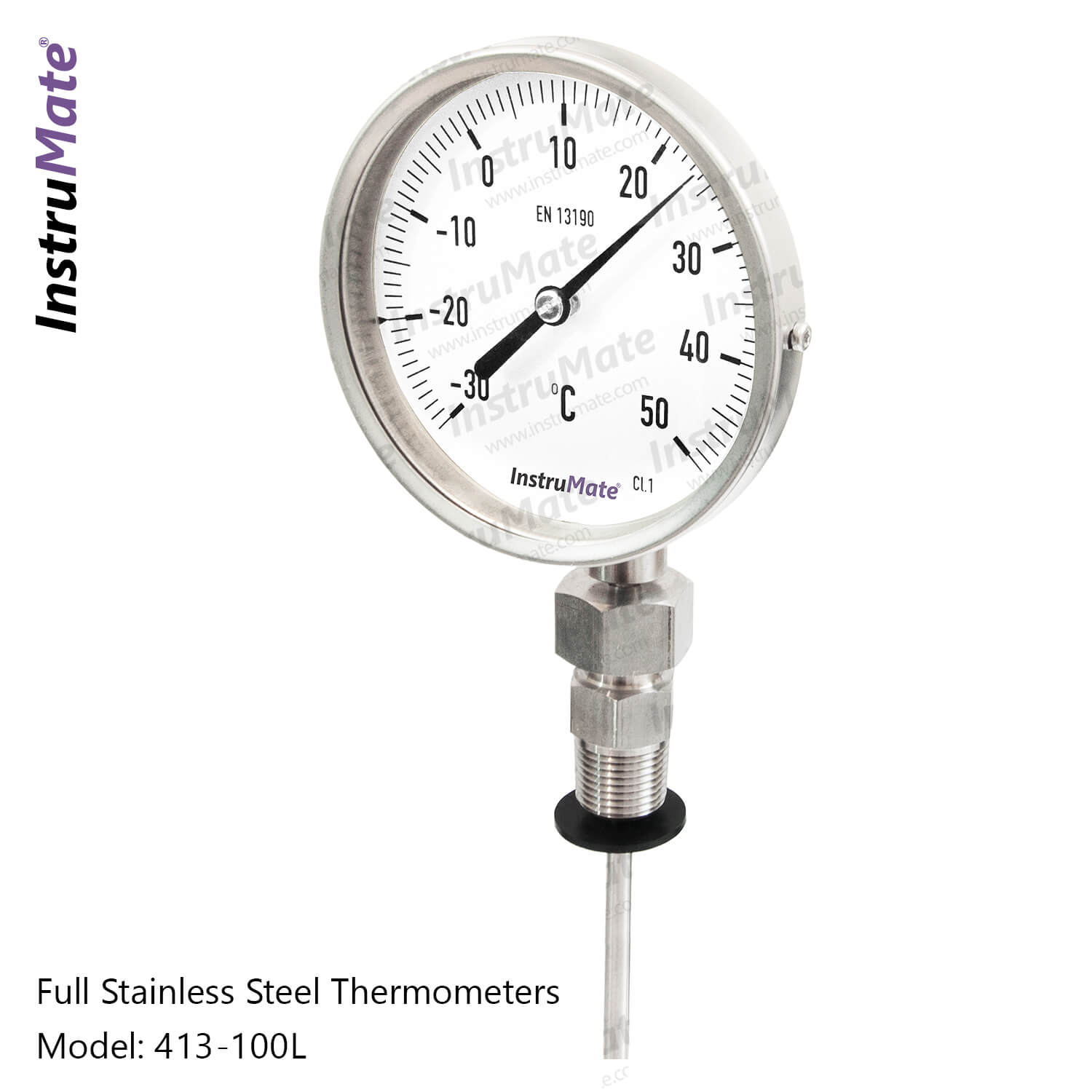

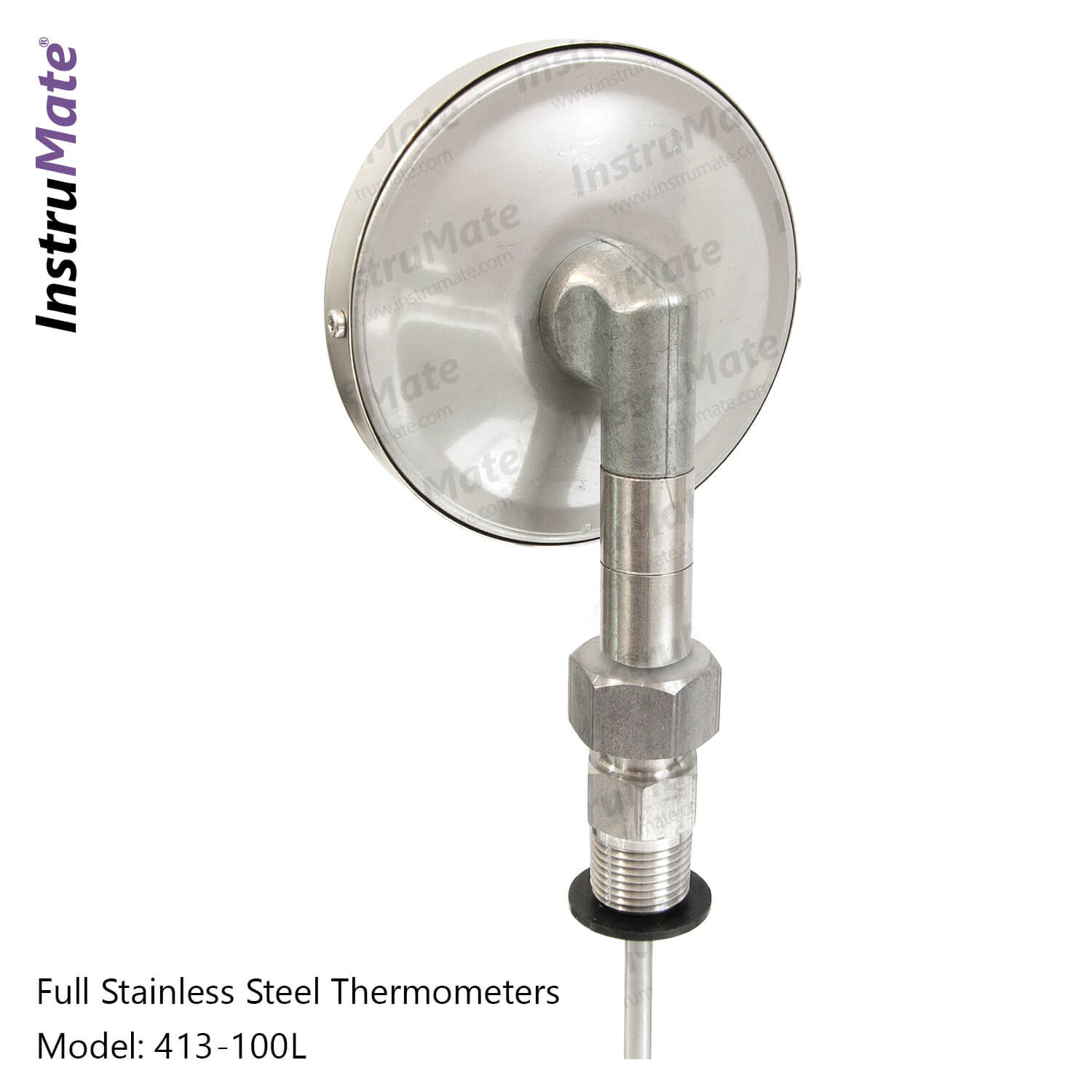

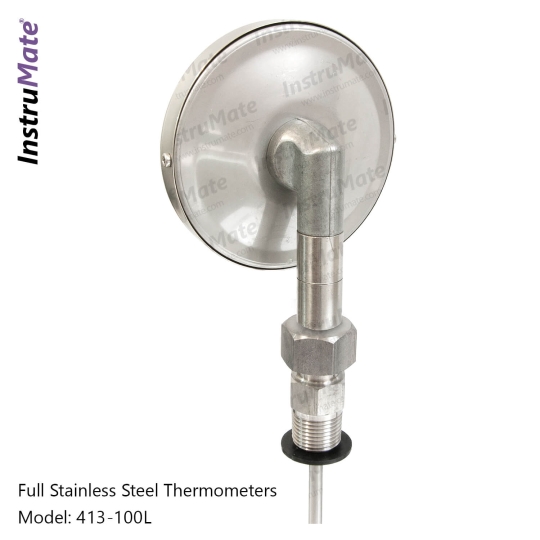

The model 413 bimetal industrial thermometers are full stainless steel temperature gauges whose stem length and thread types are offered in various combinations. This allows them to be fit for many industrial applications not requiring a better ingress protection than IP43. The model 413 bimetal industrial thermometers has a fast reaction to temperature increase thanks to its high quality bimetal sensor.

Applications

* Temperature indication of liquids and gases under process

* Machine building, food industry, piping

* Chemical & Petrochemical plants

Special Features

* Cost effective industrial temperature measurement

* Flexible choice of stem length and connection designs

* Fast reaction of bimetal sensor

Specification

Nominal Sizes in mm: 63, 100, 160

Scale Ranges in °C: -30…+50, -30…+60, -30…+70, -20…+120, 0…60, 0…100, 0…120, 0…160, 0…200, 0…250, 0…300, 0…400, 0…500

Pressure limitation at Stem: Max. 20 bar

Temperature Element: Bi-metal sensor

Pressure Limitations: Storage & Transport: -20…+60 °C

Accuracy: Class 1

Window: Glass

Stem Material: SS316

Diameter: 6mm

Standard Insertion

Lengths in mm: 50, 63, 80, 89, 100, 150, 200, 300, 400, 500, 600, 700, 800, 900, 1000, …
