ĐỒNG HỒ ĐO NHIỆT ĐỘ INSTRUMATE MODEL 412

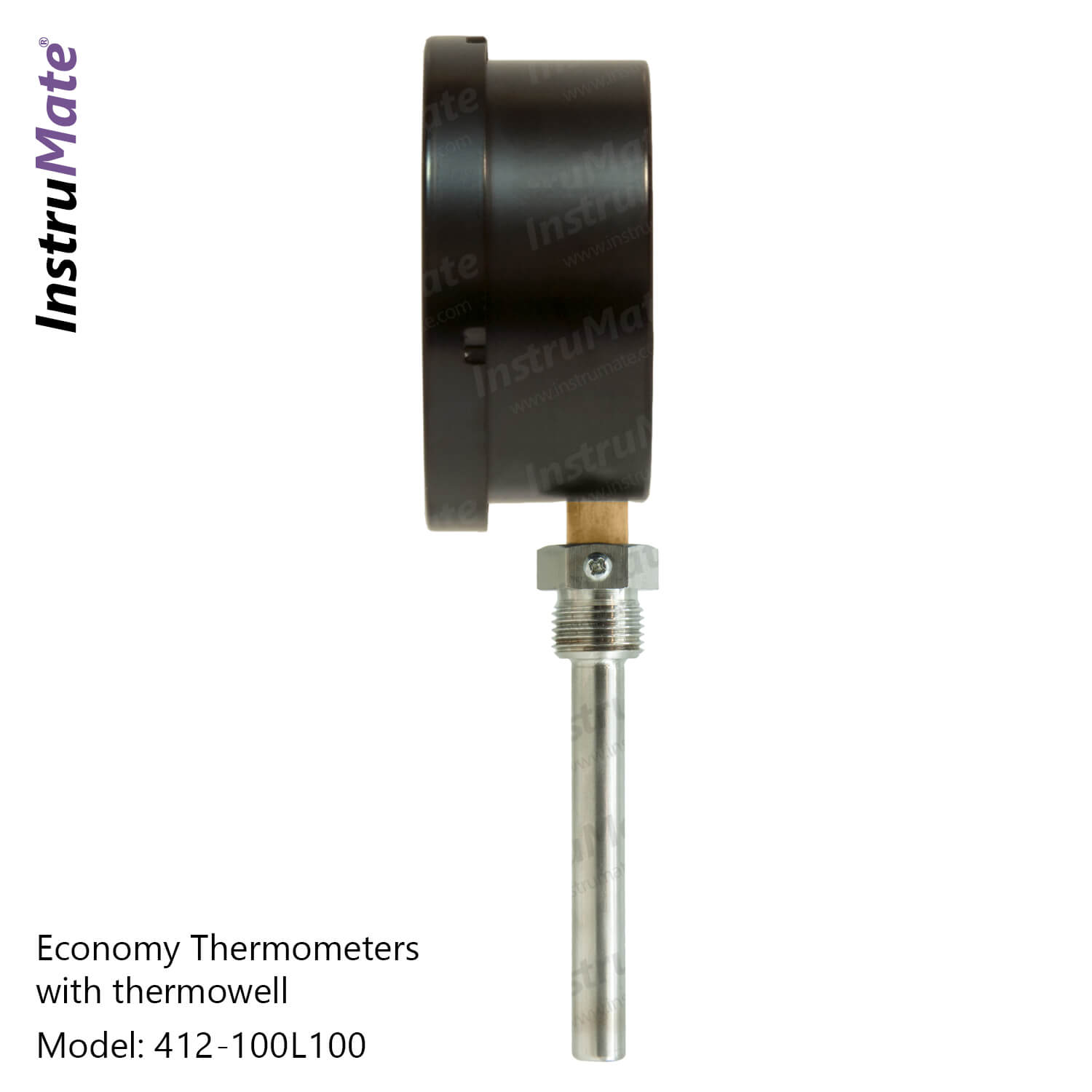

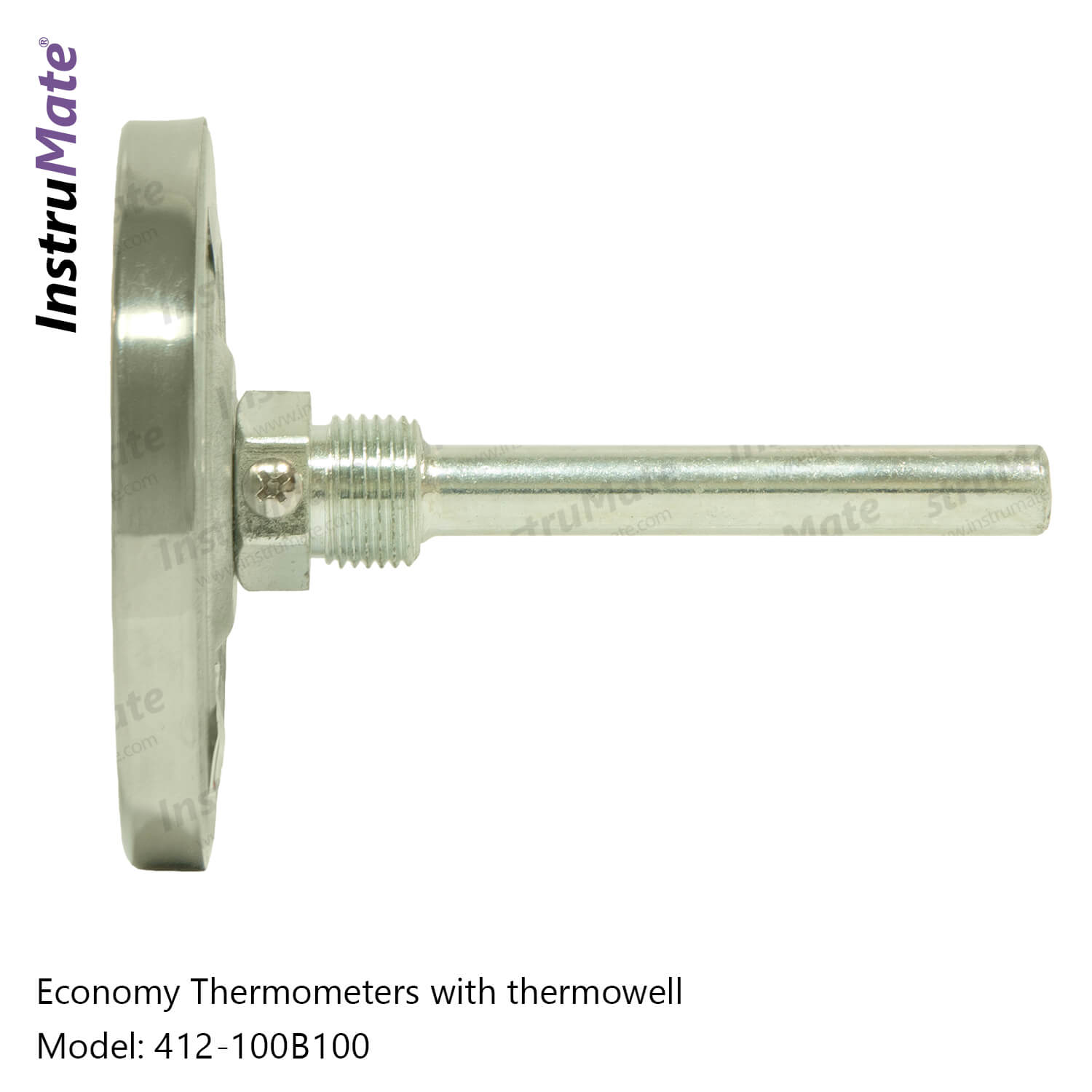

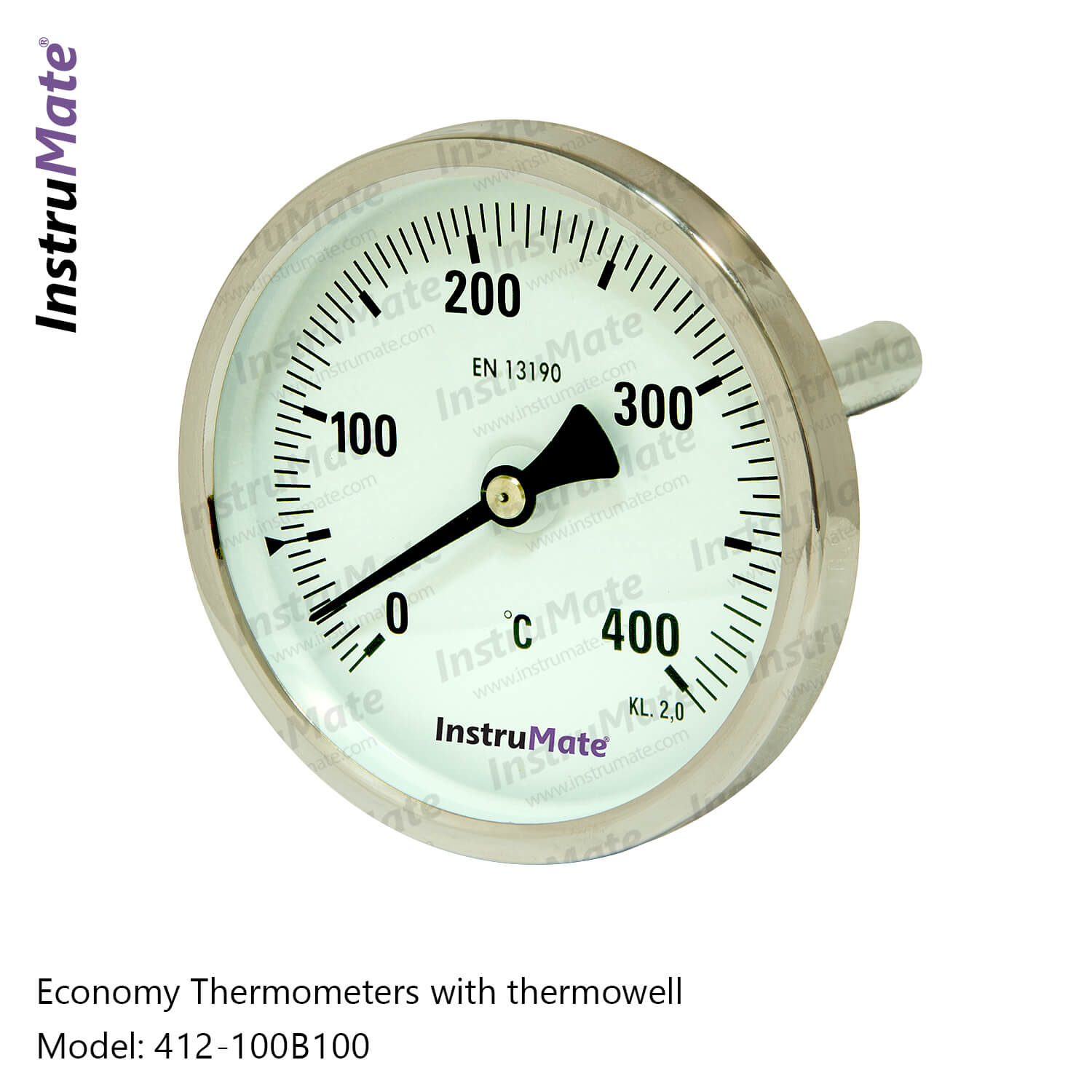

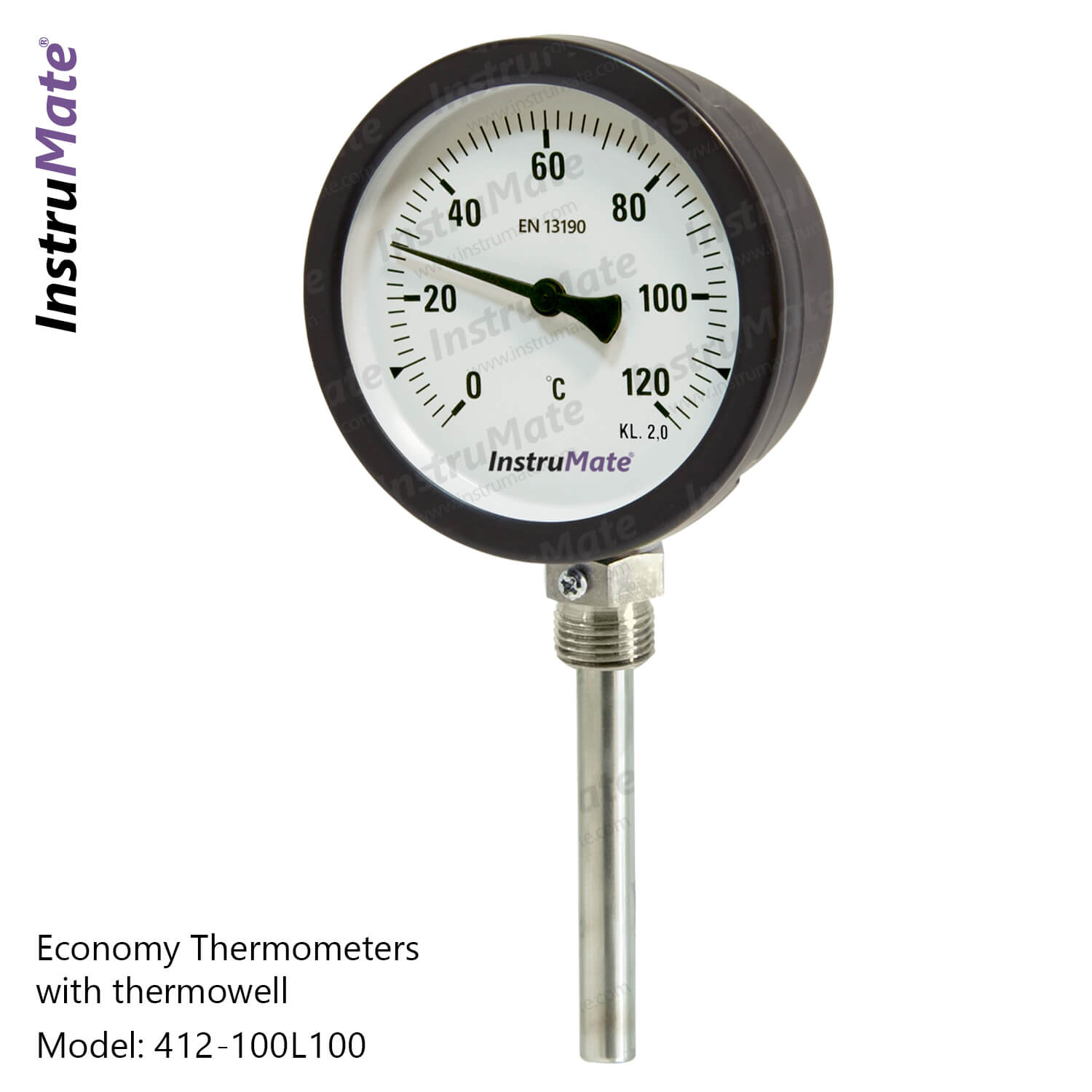

Model 412 InstruMate Economy thermometers also known as hot water thermometers are suitable for use in numerous applications such as HVAC, boilers and heating systems as well as machinery manufacturing. 412 series are equipped with a thermowell with a dual function:

1. Protecting the stem

2. Ease of future replacements

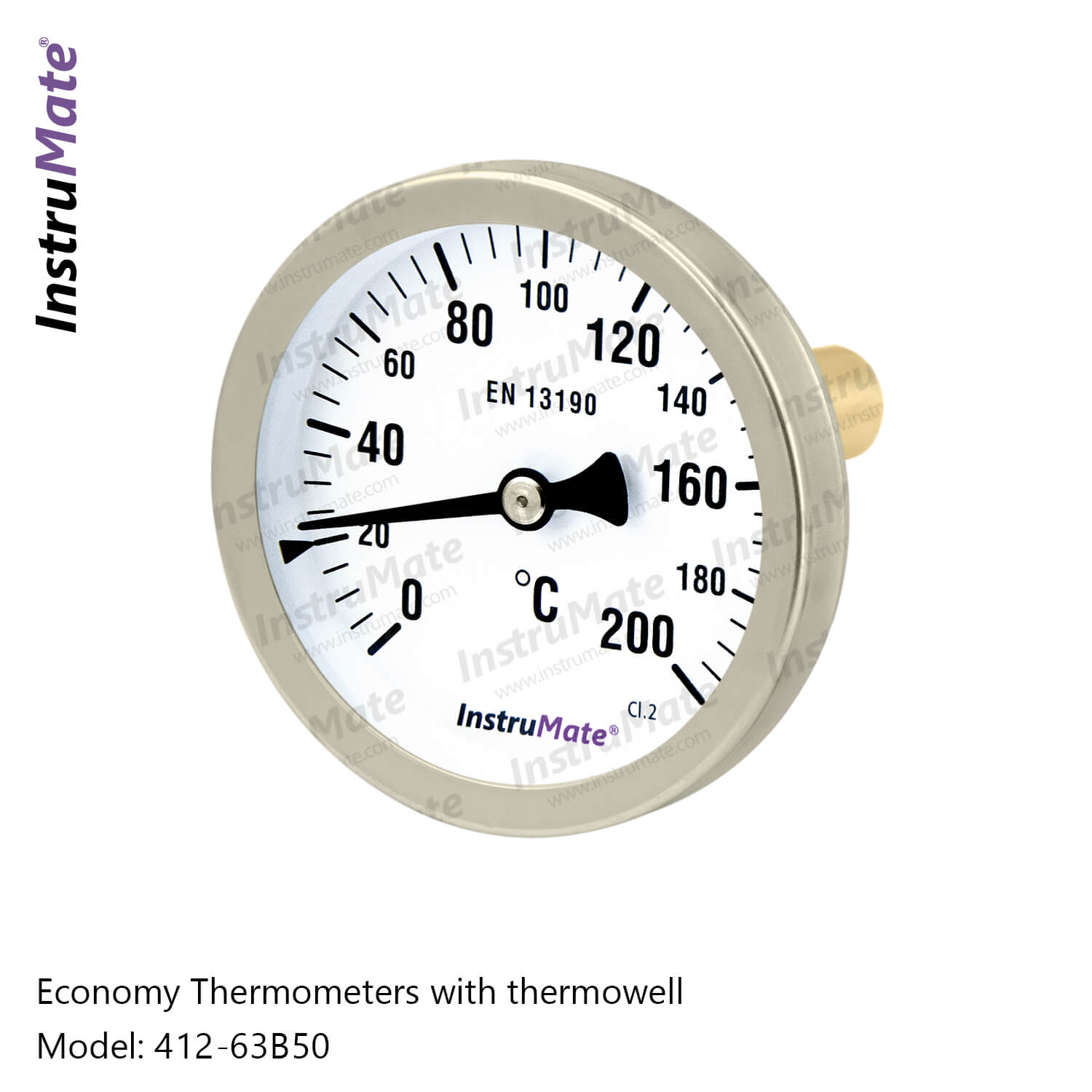

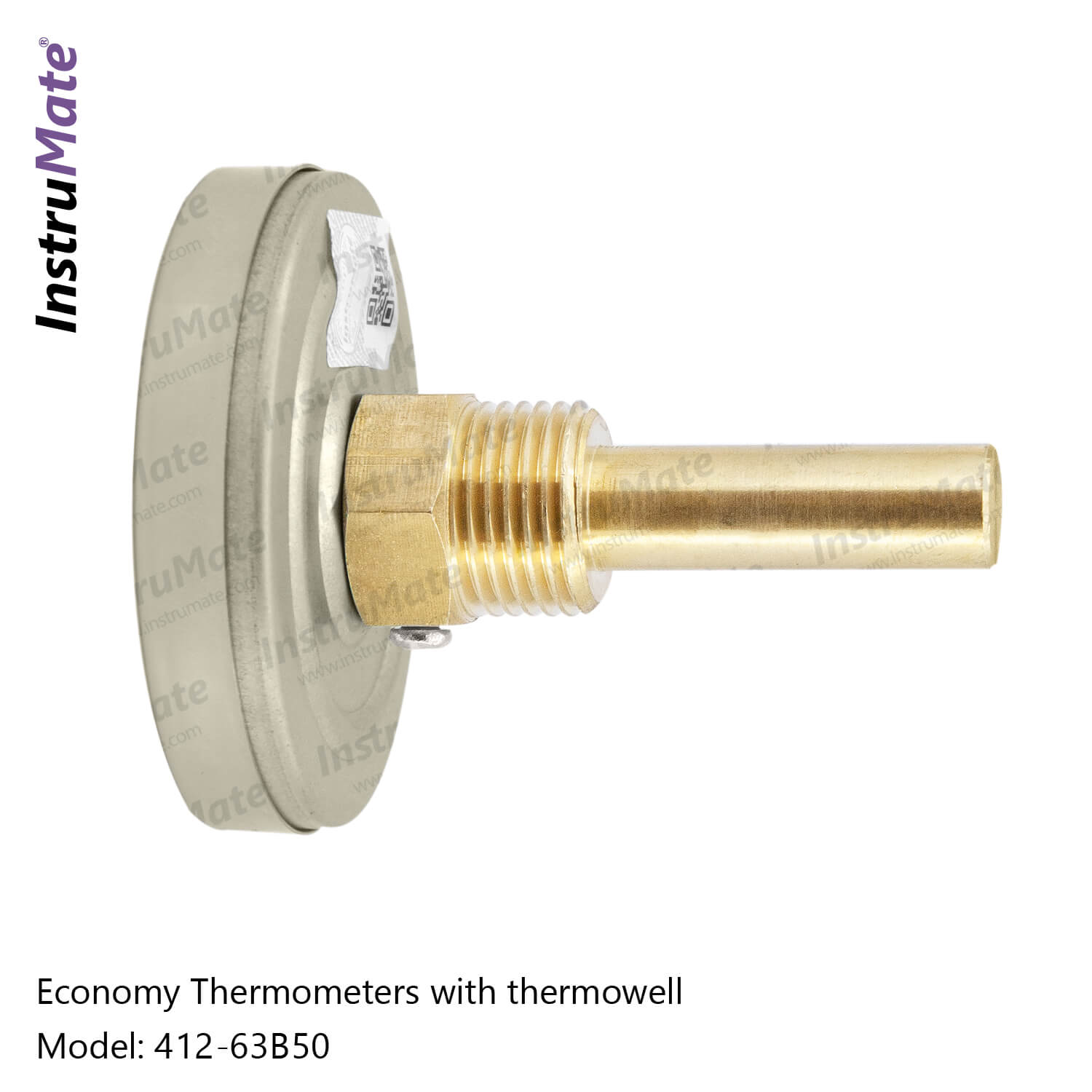

This thermometer with 63mm dial is widely used in coffee and cooking machines. Model 412 temperature gauge is cost effective but it has enjoyed the same care in production process as more expensive models.

Applications

* Temperature indication of liquids and gases under process

* Tanks and collectors

* Hot water & HVAC

Special Features

* Cost effective temperature measurement

* Covering the wide range between -30 to + 500°C

Specification

Nominal Sizes in mm: 63, 100

Scale Ranges in °C: -30…+50, -30…+60, -30…+70, -20…+120, 0…60, 0…100, 0…120, 0…160, 0…200, 0…250, 0…300, 0…400, 0…500

Pressure limitation at Thermowell: Max. 60 bar

Temperature Element: Bi-metal sensor

Pressure Limitations: Storage & Transport: -20…+60°C

Accuracy: Class 2

Window: Glass

Stem Material: Copper Alloy

Diameter: 9mm

Thermowell Material:

      Brass for 412-63

      SS316 for 412-100

Diameter: 12mm

Insertion Lengths in mm: 40, 50, 100, 150, 200, 300, 400, 500, 600

Zero Adjustment: YES, check bottom of the stem
