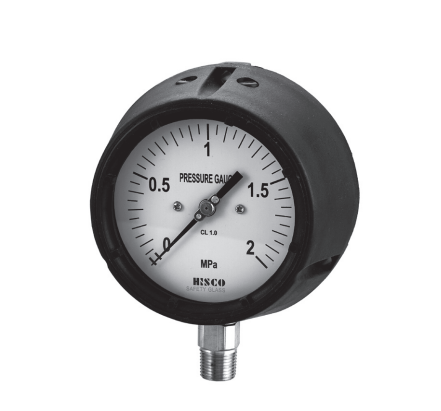

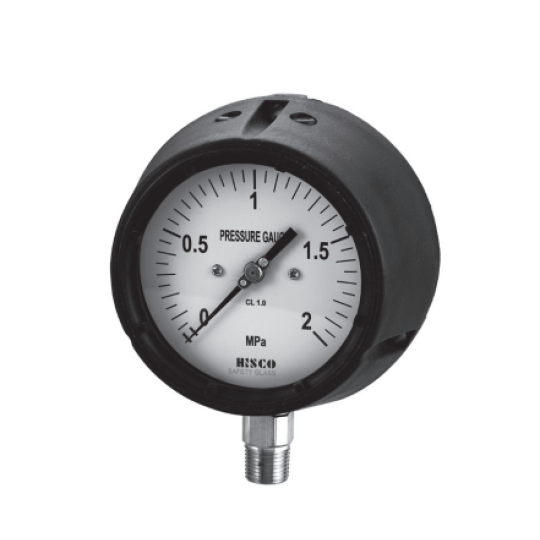

Standard Specification Overview
Dial Size
125mm (5”)
Reference Accuracy
± 1.0% of Full Scale
Scale Ranges
Vacuum, Compound & 0 ~ 100 MPa
Process Connection
PT 3/8”, NPT 1/2”
Ring Type
Screwed
Material
Case
Phenol
Ring (Cover)
Phenol
Window
Laminated Glass
Pointer
Aluminum Alloy, Black Painted
Connection (Plug)
316 SS
Element (Bourdon Tube)
316 SS
Movement
Stainless steel
Dial Plate
White Aluminum with Black Graduations
Degree of Protection
IP 67
Optional Extra
· Test Report by Manufacturer
· Test Report by KOLAS (ILAC-MRA)
· High Accuracy (± 0.5% of F.S.)
· Calibration
· Liquid Filled (Glycerine)
· Liquid Filled (Silicone)
· Monel (Connection & Element)
