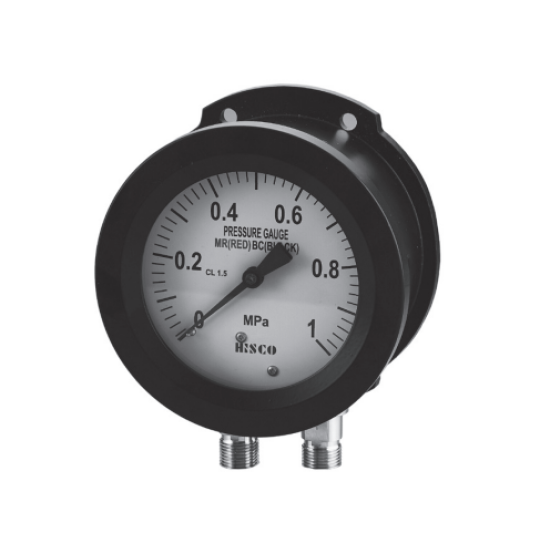

ĐỒNG HỒ ĐO ÁP SUẤT HISCO 371P

Standard Specification Overview
Dial Size
100mm (4”)
Reference Accuracy
± 1.5% of Full Scale
Scale Ranges
100mm (4”) : 0 ~ 0.4 to 0 ~3.5 MPa
Process Connection
PT (“R” in ISO) 3/8” or PF (“G” in ISO) 3/8”
Material
Case

Black Finished Aluminium
Ring (Cover)

Black Finished Aluminium
Window

Glass
Pointer

Aluminum Alloy, Black Painted
Connection

Brass (371P), 316 SS (372P)
Element (Bourdon Tube)

316 SS
Movement

Brass
Dial

White Aluminum with Black Graduations
Ring Type
Screw
Optional Extra
· Test Report by Manufacturer
· Test Report by KOLAS (ILAC-MRA)
