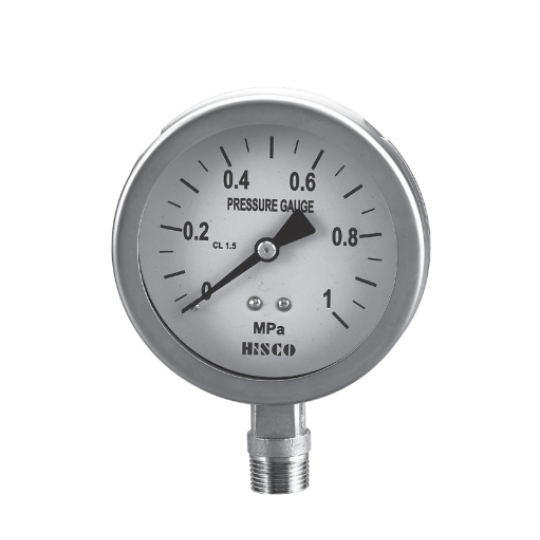

ĐỒNG HỒ ĐO ÁP SUẤT HISCO 301P

Standard Specification Overview
Dial Size
60mm (2.5"), 75mm (3")
Reference Accuracy
60mm, 75mm : ± 1.5% of Full Scale
Scale Ranges
60mm, 75mm : Vacuum & Compound 0 ~ 0.1 to 0 ~ 35 MPa
Standard Process Connection
60mm : PT ("R" in ISO) 1/4"
75mm : PT ("R" in ISO) 3/8"
Ring Type
Crimped (60mm)
Bayonet (75mm)
Material
Case

304 SS with pressure relief on top
Ring (Cover)

304 SS
Window

Safety Glass
Pointer

Aluminum Alloy, Black Finished
Connection

316 SS
Element (Bourdon Tube)

316 SS
Movement

Stainless steel
Dial Plate

 White Aluminum with Black Graduations
Degree of Protection
IP 67
Optional Extra
· Test Report by Manufacturer
· Test Report by KOLAS (ILAC-MRA)
· Laminated Safety Glass
· 316 SS Connection Part
· Cleaning Service (USE NO OIL)
· Supersonic Cleansing Service
· Throttling Screw (Restricting Orifice)
· Protection Cover (Polycarbonate)
