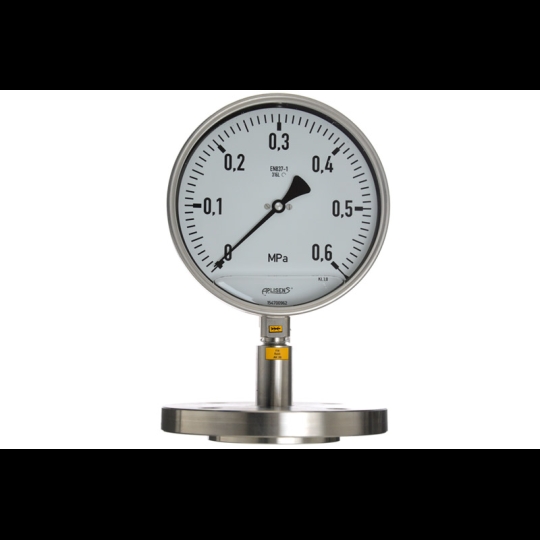

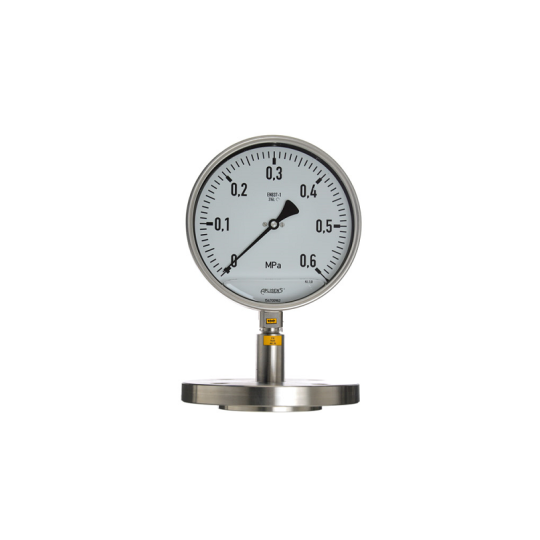

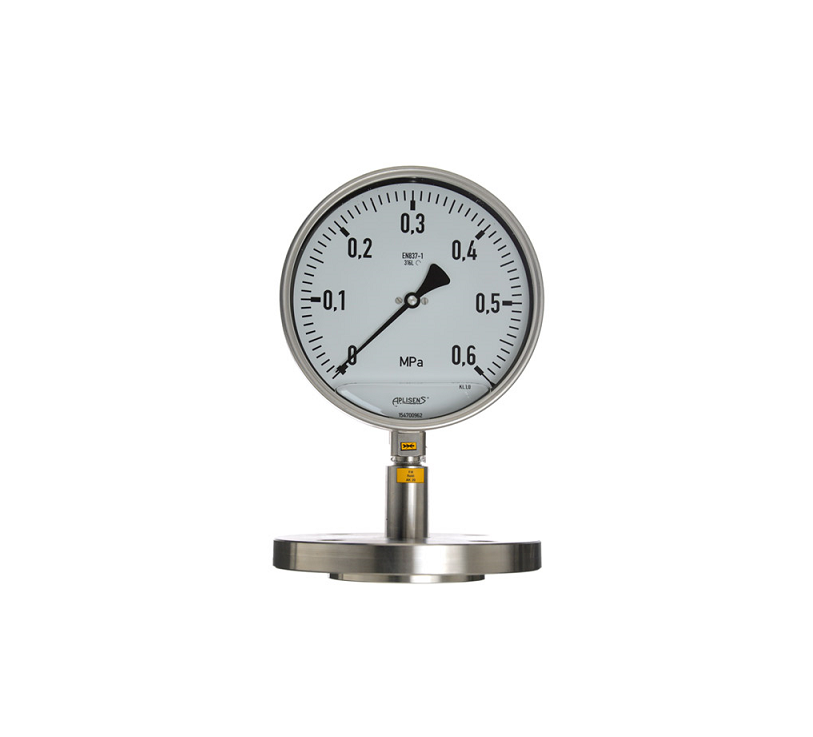

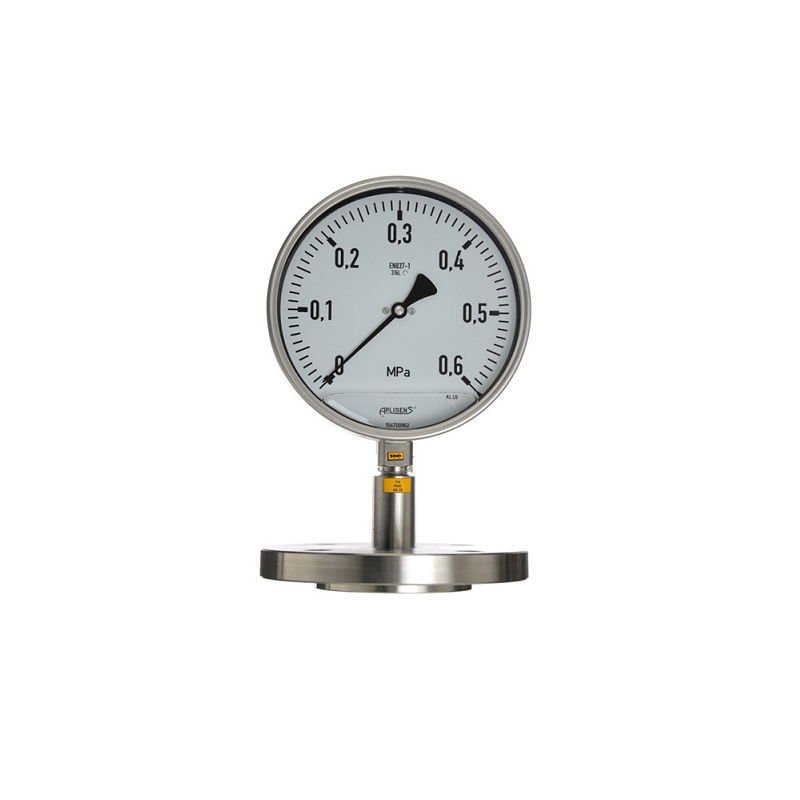

The full range of diaphragm seals which can be used with pressure gauge is described in detail in Chapter III: Diaphragm Seals.
The temperature range of the medium measured using a pressure gauge with diaphragm seal depends on the choice of diaphragm seal and may lie between -60 and +315°C.
With an appropriate selection of pressure gauge and diaphragm seal, taking into account the width of the measurement range, the measurement accuracy of the unit is in accordance with the precision class of the pressure gauge. Detailed recommendations concerning the range of usability of diaphragm seals combined with manometers are contained in Chapter III: Diaphragm Seals.
Technical data
Standard measurement ranges:
0...1, 1.6, 2.5, 4, 6, 10, 16, 25, 40, 60, 100, 160, 250, 400 bar
-1...0, 0.6, 1.5, 5, 9, 15 bar
Accuracy 1%
Diameter of the casing _100
Material of the casing 0H18N9 (304ss)
Material of process connection
and measuring element H17N13M2T (316Ti),
Process connection diaphragm seal
Process connection outlet bottom (special version: back)
Special versions
Glycerine casing filled with glycerine
T back connection
