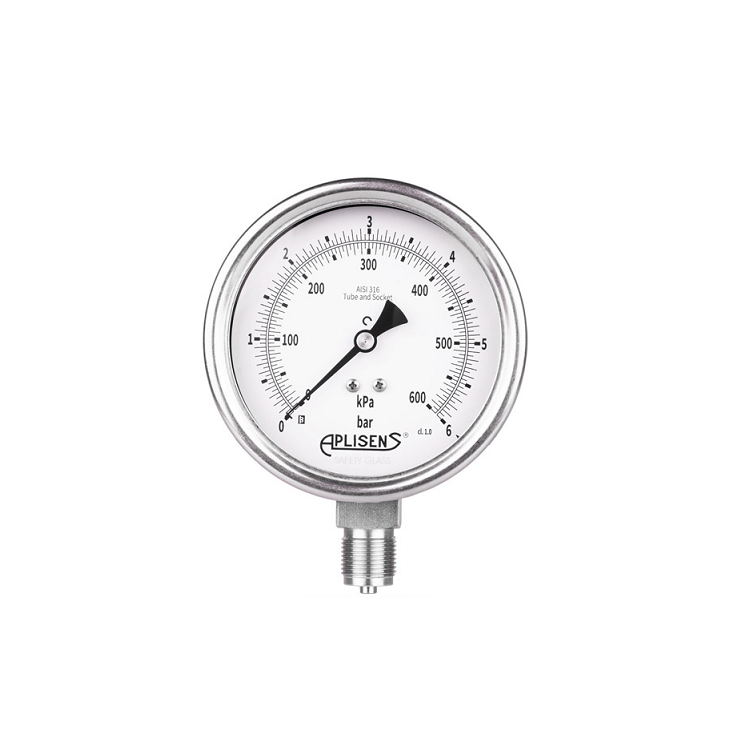

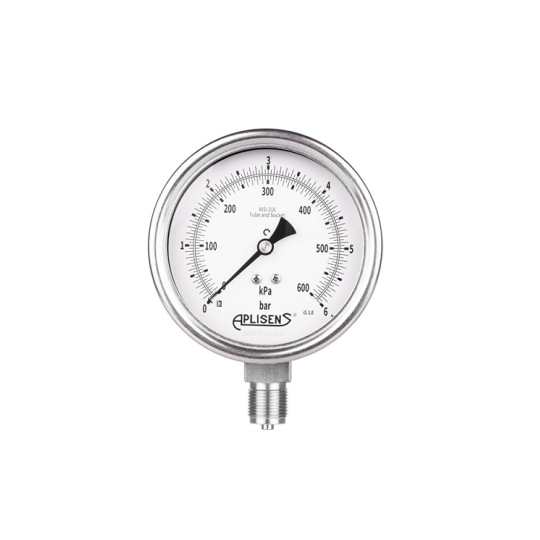

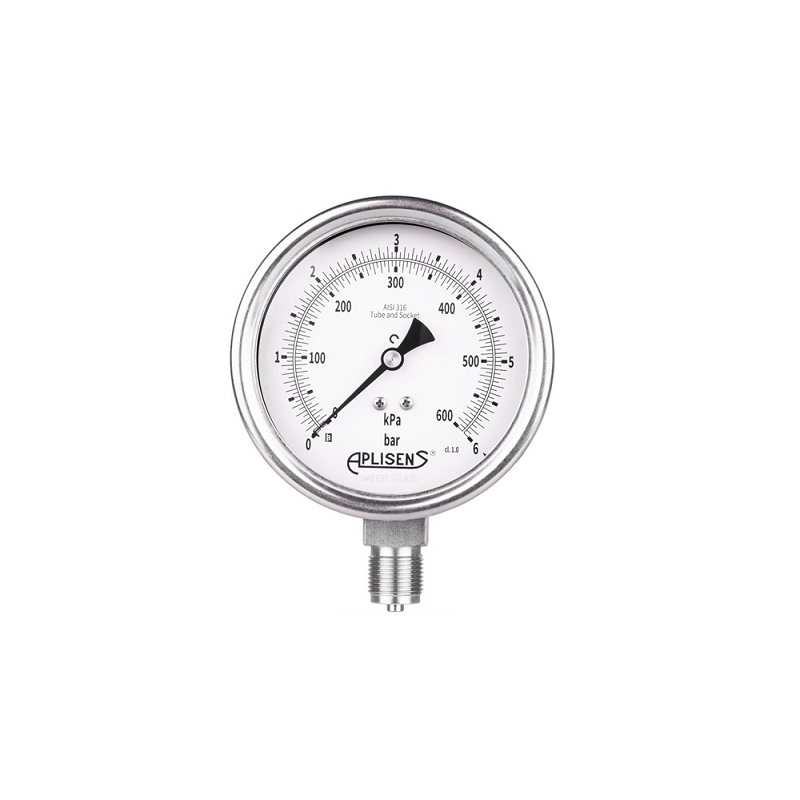

ĐỒNG HỒ ÁP SUẤT APLISENS MODEL MS-100K

Application, construction

MS-100 pressure gauges are applicable to the measurement of the pressure of liquids and gases at temperatures up to 200°C. The range of pressures of the measured medium should correspond to 3/4 of the reading range of the pressure meter for constant pressures or 2/3 of the reading range for pulsating pressures. The casing box is made of stainless steel and has a window made of industrial glass. The pressure gauge’s measuring element and process

Technical data

Standard measurement ranges:

0...1, 1.6, 2.5, 4, 6, 10, 16, 25, 40, 60, 100, 160, 250, 400 bar

-1...0, 0.6, 1.5, 5, 9, 15 bar

Accuracy 1%

Diameter of the casing _100

Material of the casing 0H18N9 (304ss)

Material of process connection

and measuring element H17N13M2T (316Ti),

Process connection G1/2" or M20×1.5

Process connection outlet bottom (special version: back)

Special versions

Glycerine casing filled with glycerine

T back connection

Operating temperature range

Filling fluid:

without -40…90°C

glycerine -20...65°C

Medium temperature range

Filling fluid:

without up to 200°C

glycerine up to 90°C

connection are made of stainless steel (or brass for version with diaphragm

seals).
