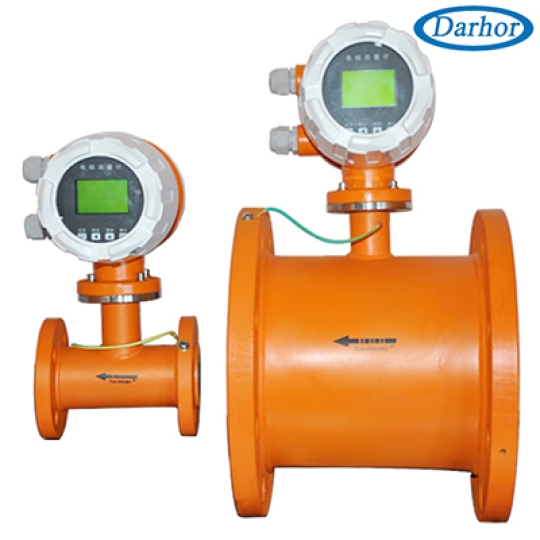

DH1000 Electromagnetic flowmeter

DH1000 Electromagnetic flowmeter

Specification: magnetic flowmeters

Size(mm): DN15mm---DN3200mm

Medium: Conductive liquid, slurry

Medium Temperature: ≤120

Conductivity: ≥5μS/cm

Accuracy: 0.3%, 0.5%

Operating Pressure: 0.25, 0.6, 1.0, 1.6, 4.0MPa, (or specified by customer)

Display: Displaying Flow, totalizer and the velocity of flow with back light

Signal Output:

- Analog 4-20mA, isolated, Loading resistant ≤750ΩPulse frequency 0-1KHz

- Photoelectricity isolated OCT,

- External power <35VDC, 250mA/max

Operating Power: Single Alternating Current 85-265VAC, 45-63Hz, Power <20W, 24VDC, 10VA

Converter Type: Integrated,Remote, Inserted /Flange, Clamp

Protection Grade: IP 65 / IP67 / IP 68

Explosion-Proof Grade: ExdBT4/ExibCT4

Velocity: 0.3-12m/s ( 0.1-15m/s as required)

Lining: Chloroprene Gum (DN25-DN3400)Polyurethane (DN25-DN500)F4 (DN25-DN1200)F46 (PFA) (DN25-DN200)F40 (DN25-DN2800)PO (DN50-DN2800)PPS (DN50-DN2800)

Flowing direction: Forward, Reverse

Repeatability: ±0.1%,±0.15,±0.25%

Electrode material: 316L, Pt, Ta, Ti, HB, HC

Electrode type: Standard, blade, removable

Electrode number: 2-6 pcs

Flange Material: 316 / 304

Alarm (N.O.): empty, excitation, high-low flow rate limit

Ambient

Temperature: -25 - +60, Humidity: 5-90%

Communication: RS-485/ Hart/ profibus-DP

Standard practice: JJG1033-2007/ JJB198-1994

Inspection standard: JJG198-94, JJG0002-94
