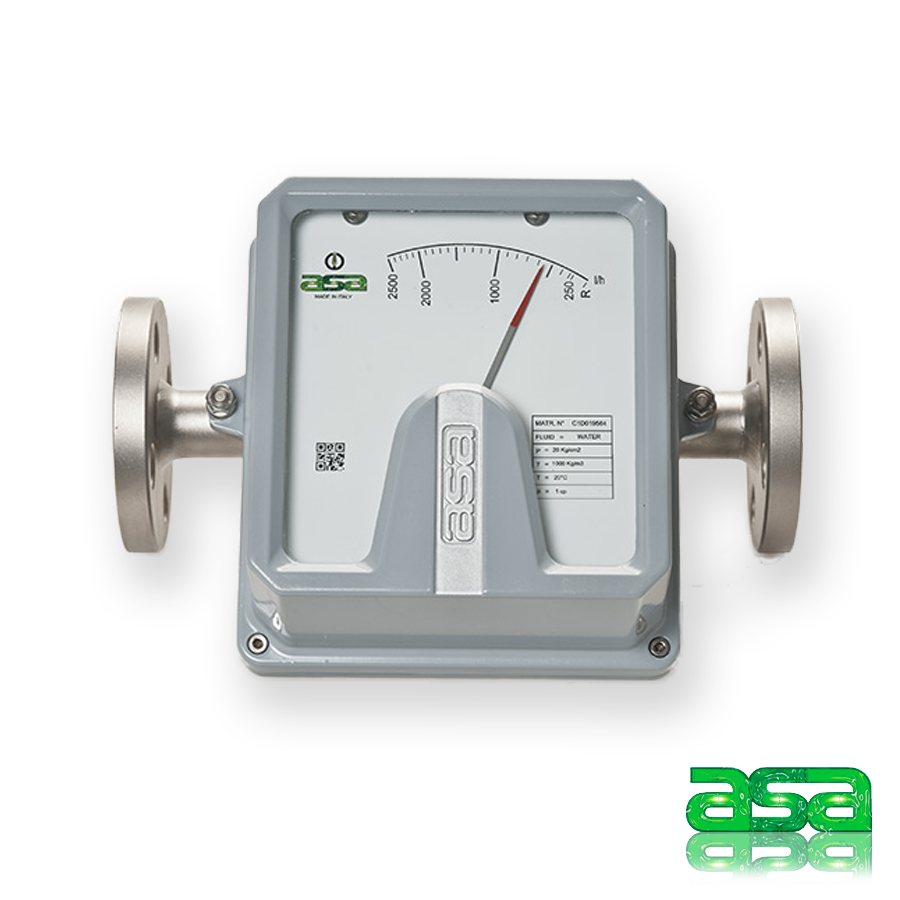

METAL TUBE ASA G Series

CONSTRUCTION MATERIALS
Wetted parts:

      AISI 316L, PTFE.
      Monel, Titanium, Hastelloy “C” on request
Indicator housing: epoxy painted die cast aluminium RAL 7001. Inox AISI 316 (on request)
Housing protection class: IP67. On request IP68
TECHNICAL FEATURES
Measuring Range: 1-10
Scale Length: 80 mm
Accuracy: ± 1.5% f.s.v. (standard)
Repeatability: 0.5% f.s.v.
Max pressure: 40 bar (higher on request)
Temperature: see table 1
Alarms: for minimum or/and maximum flow, inductive type, adjustable on all the scale range. They can be certified for classified areas ATEX - CENELEC
Ex ia IIC T6.
Feeding: 8 Vcc
Current consumption:
      With metal < 1 mA
      Without metal > 3 mA
      Repeatability: < 0.4% f.s.v.
      Otherwise
Alarms: for minimum or/and maximum flow, PNP bistable type, adjustable on all the scale range.
Feeding: 24 Vcc
Connections: flanged PN 16 EN1092-1, DIN 11851, Gas f, NPT f or Triclamp.
      Other connections on request
ATEX Approval:
      CESI 04 ATEX 067X
      1GD c T6 IP65 T85°C
      Ta=-20°C+60°C;
