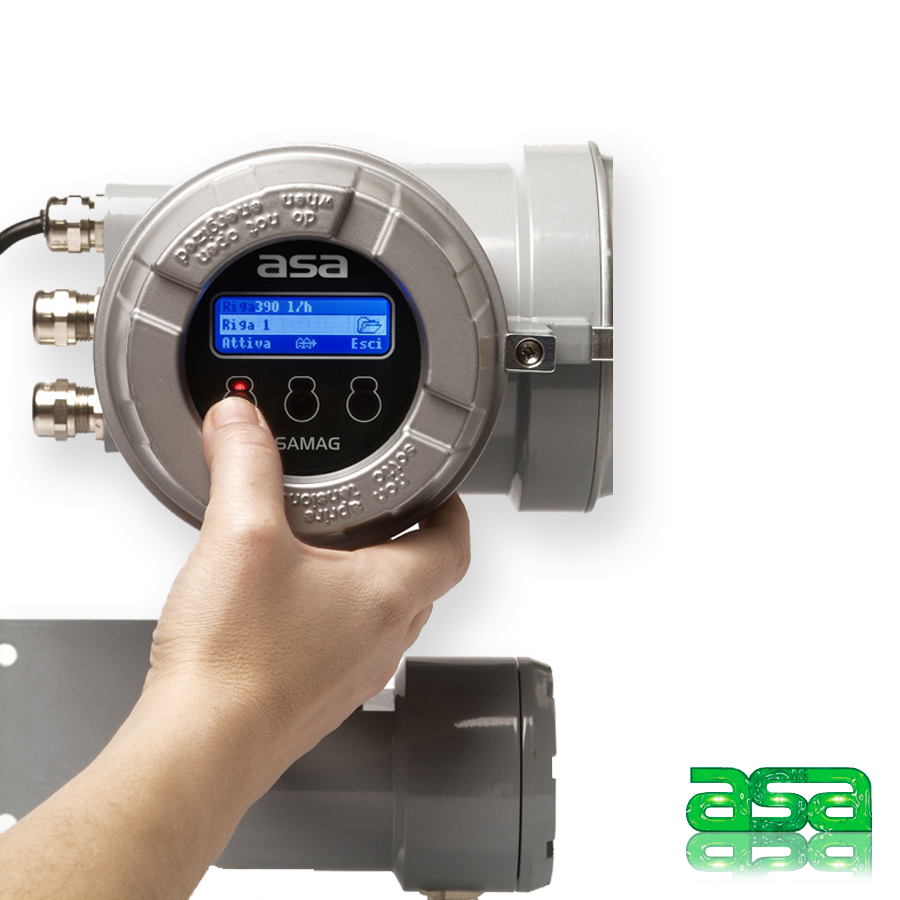

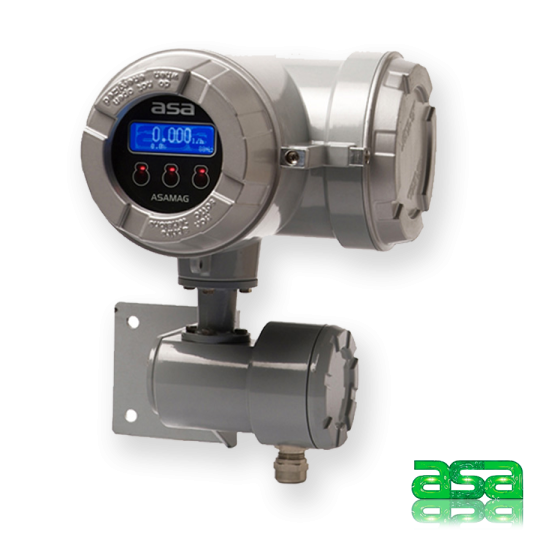

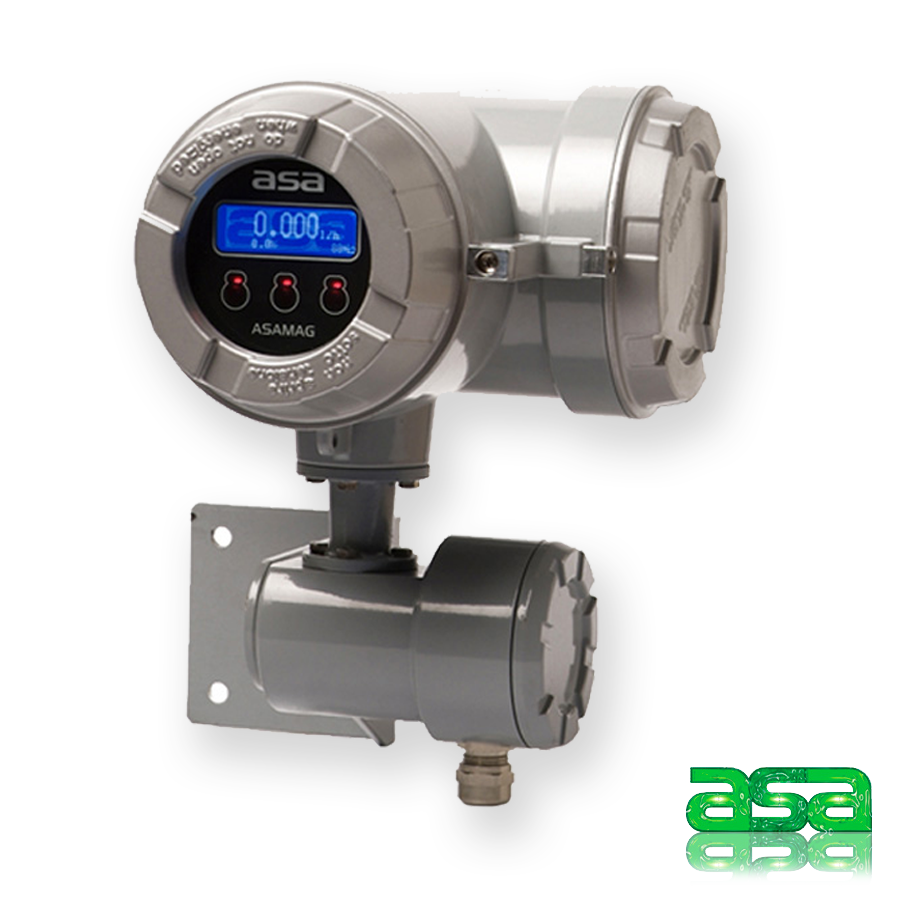

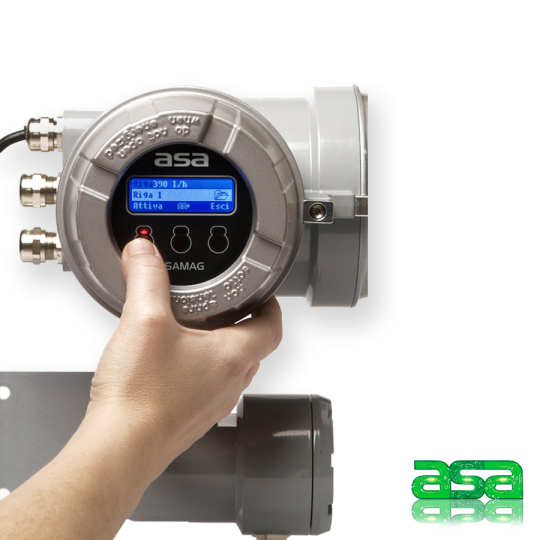

SIGNAL CONVERTER Model ASAMAG

The meter size is available from DN4 up to DN1000. EM meter internal lining is PTFE or hard rubber (from DN150 to DN1000) and standard electrodes are AISI 316L
stainless steel. For corrosion resistance, electrodes can be on request Titanium, HC, Tantalum.

CONSTRUCTION MATERIALS
Internal lining: PTFE, Hard Rubber and DIFLEX
Electrodes: AISI 316L, Titanium, Hastelloy “C” , Tantalum
Measuring tube: AISI 304 coated Board cover: die casted aluminium epoxy painted RAL 7001 (satined AISI 304 as option)
Tube mechanical protection: IP65 or IP67/68 on request

TECHNICAL FEATURES
Measuring range: 0.3-12 m/s
Accuracy: ± 0.5% r.v.
Repeatability: ± 0.1% r.v.
Max pressure: 16/10 bar (higher on request)
Connections: flanged UNI EN 1092-1, other connections on request
Measuring tube: AISI 304 covered with epoxy painted carbon steel cover.
