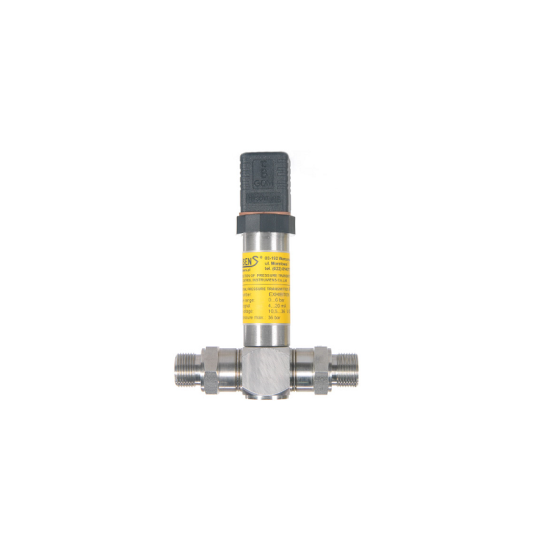

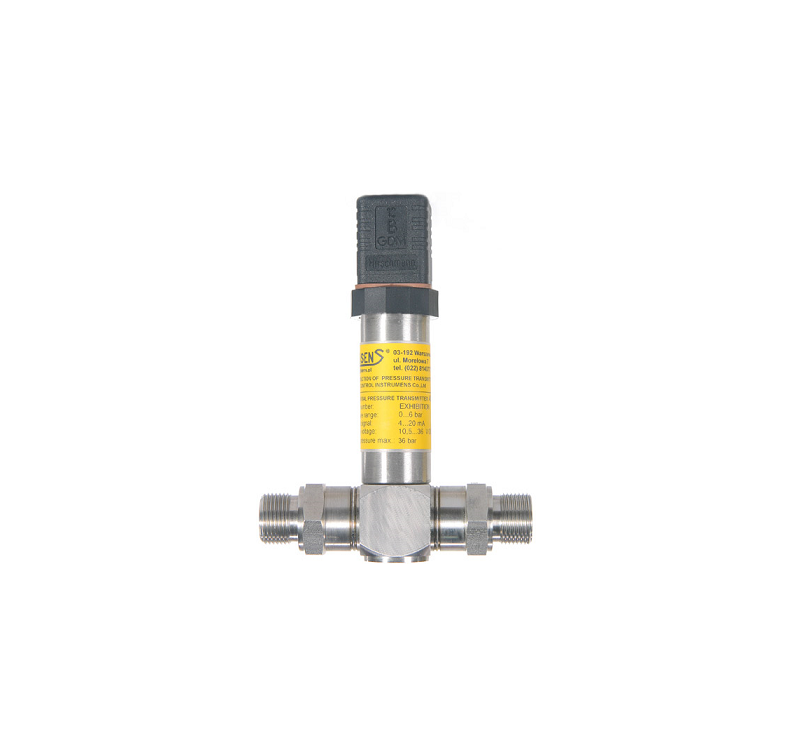

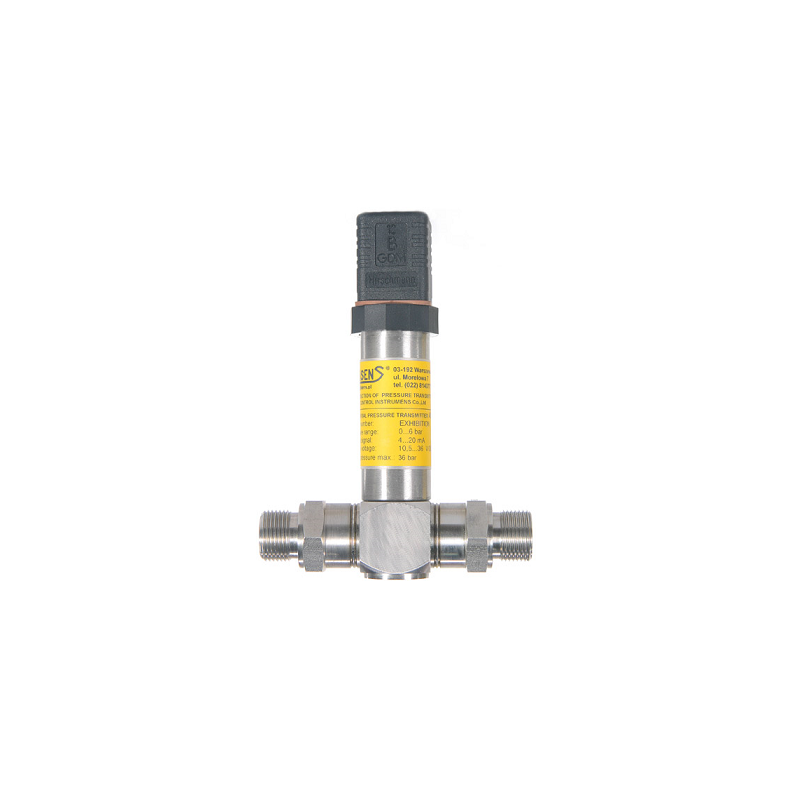

CẢM BIẾN ÁP SUẤT DẠNG CHÊNH ÁP APLISENS MODEL AS-dP

Technical data

Accuracy 0,4%

Hysteresis, repeatability 0,05%

Overpressure limit 6 × range

max. 40 bar

Thermal compensation range 0 ÷ 70°C

Thermal error 0,2% / 10°C

Long – term stability 0,5% / year

Technical data

Degree of protection IP65

Material of process

connection and diaphragms 00H17N14M2 (316 Lss)

Material of casing 0H18N9 (304ss)

Electrical parameters

Output signal 4 ÷ 20 mA, two wire transmission

Power supply 8…36 VDC

Operating conditions

Operating temperature range (ambient temp.) –25 ÷ 80°C

Medium temperature range –25 ÷ 120°C – direct measurement

> 120°C – measurement using an impulse line
