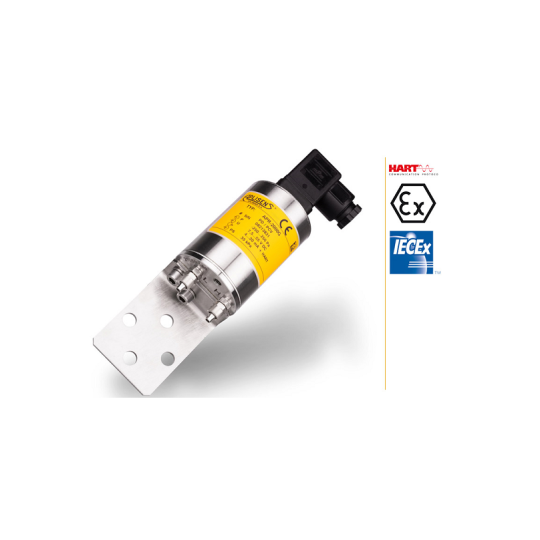

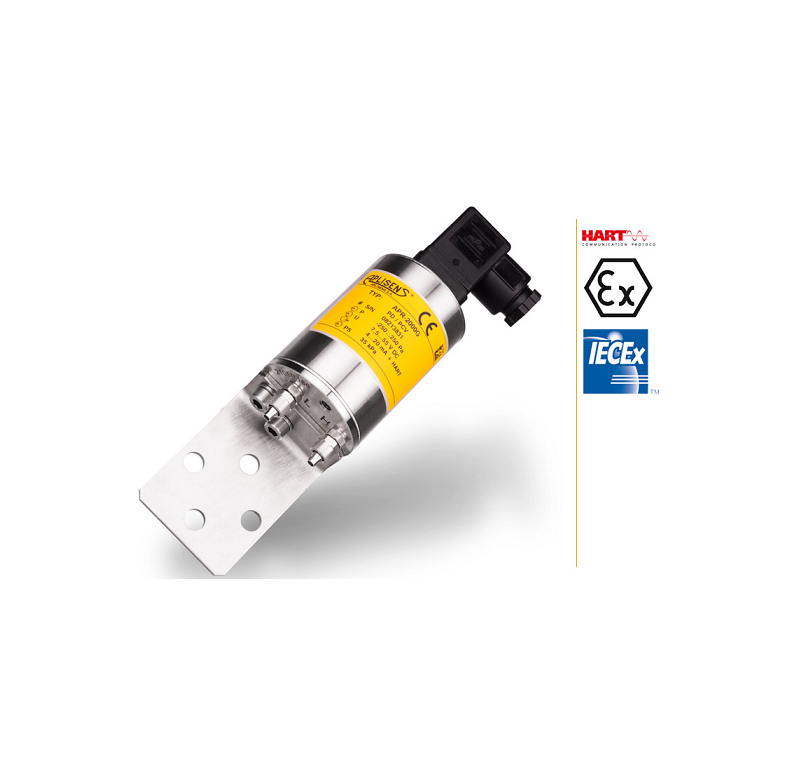

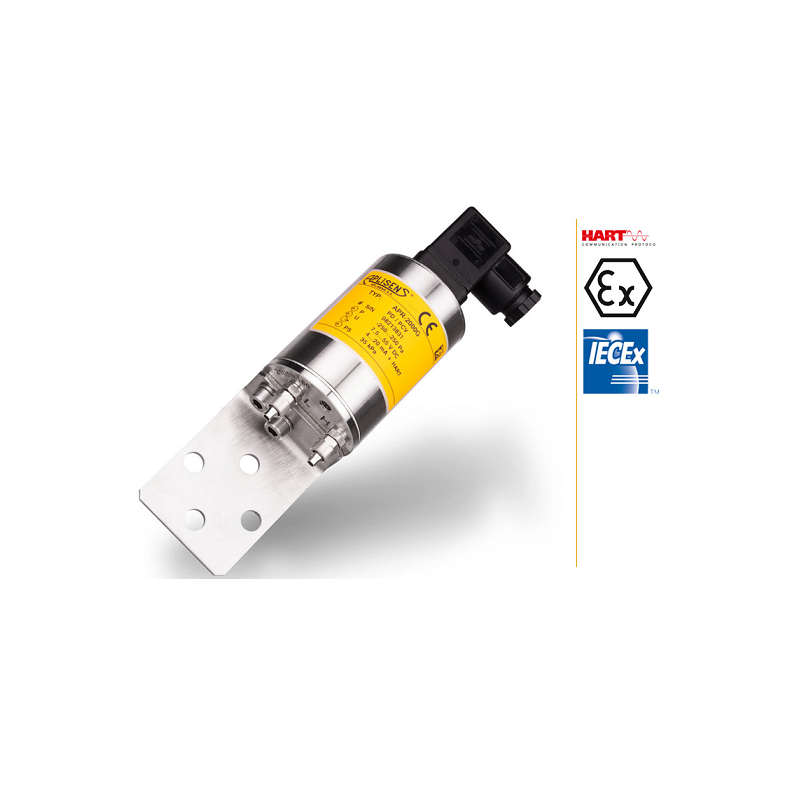

CẢM BIẾN ÁP SUẤT DẠNG CHÊNH ÁP (ÁP SUẤT THẤP) APLISENS MODEL APRE-2000G
Nhà sản xuất: APLISENS
Application
The APRE-2000G transmitter is applicable to gases, to the measurements of their pressure, underpressure and differential pressure. Typical applications include the measurement of blast pressure, chimney draughts or pressure / underpressure in furnace chambers. The ability to select the radical conversion characteristics enables the transmitter to be used in gas-flow measurement systems using reducing pipes or other impeding elements. The transmitter can withstand overpressure up to 1 bar. The housing of the electronic circuit has the degree of protection IP65, IP66 , IP67.
Technical data
Thermal error < ±0,1% (FSO) / 10°C
max. ±0,4% (FSO) in the whole compensation range
Thermal compensation range -10…70°C
Additional electronic damping 0…30 s
Error due to supply voltage changes 0,002% (FSO) / V
Electrical parameters
Power supply
APRE-2000G/PD and PZ 7,5...55 VDC (Exia 7,5...30 VD C)
APRE-2000G/N 10...55 VD C
Output signal 4...20 mA + HART
Load resistance _ _
U* - APRE-2000G/PD and PZ: 7,5 VD C
APRE-2000G/N: 12 VD C
Resistance required for communication min. 240 _
Operating conditions
Operating temperature range (ambient temp.) -30...85°C
Exia version: -25...80°C
APRE-2000G/N: -25...60°C
Materials
APRE-2000G/PD and PZ:
Casing SS304
adapter C type SS304
adapter PCV type (on _6 elastic pipe) brass
APRE-2000G/N: Casing plastic box
