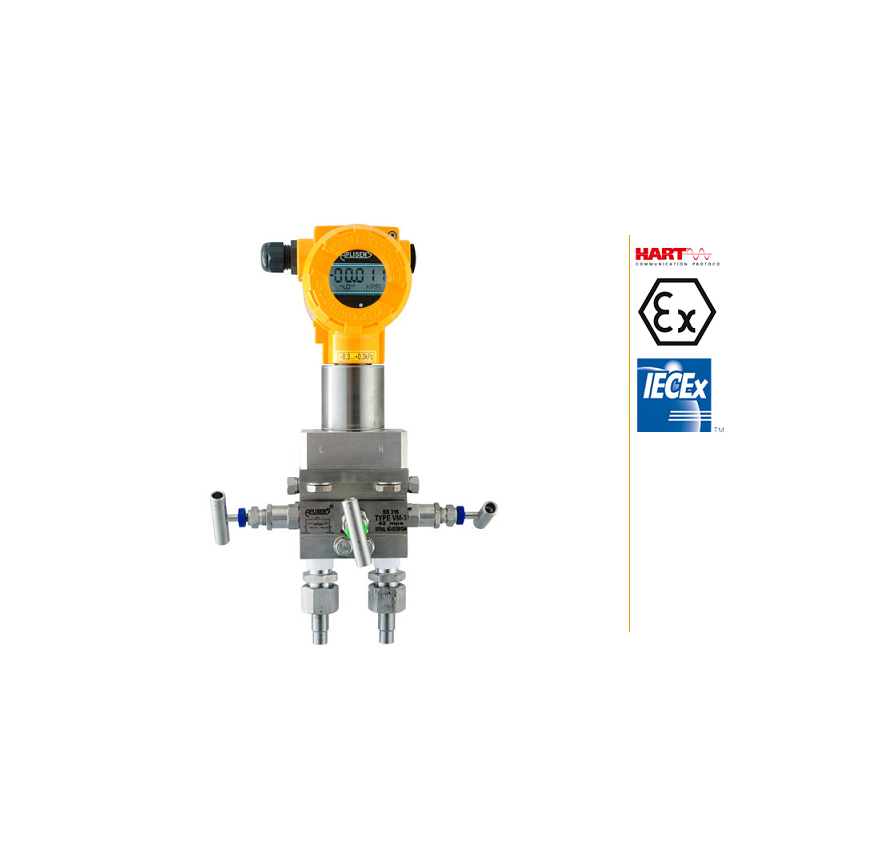

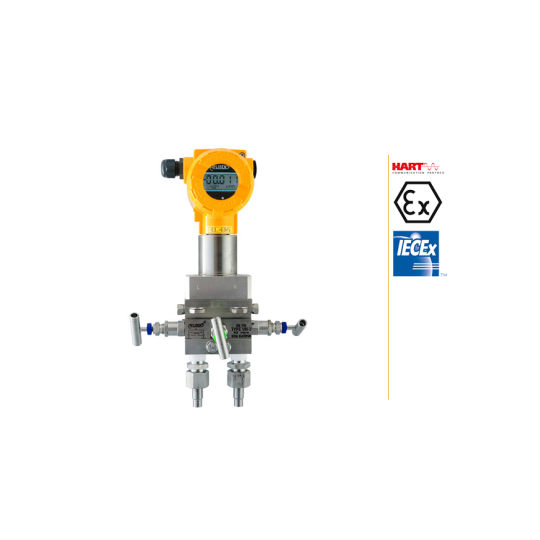

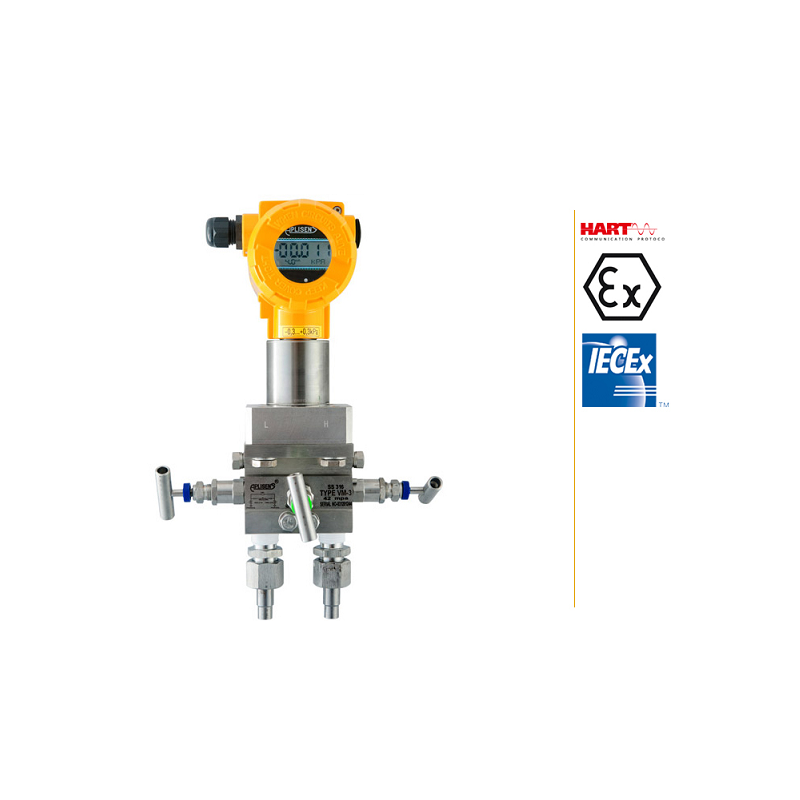

CẢM BIẾN ÁP SUẤT DẠNG CHÊNH ÁP (ÁP SUẤT THẤP) APLISENS MODEL APR-2000ALW/G

Application

The APR-2000ALW/G transmitter is applicable to the measurement of differential pressure of gases. Typical applications include the measurement of blast pressure, chimney draughts or pressure / underpressure in furnace chambers. The ability to select the radical conversion characteristics enables the transmitter to be used in gas-flow measurement systems using reducing pipes or other impeding elements. The transmitter can withstand overpressure up to 1 bar. The housing of the electronic circuit has the degree of protection IP66/IP67.

Technical data

error < ±0,1% (FSO) / 10°C

max. ±0,4% (FSO) in the whole compensation range

Thermal compensation range -10…70°C

Additional electronic damping 0…30 s

Error due to supply voltage changes 0,002% (FSO) / V

Electrical parameters

Power supply 10...55 VDC (Exia 10,5...30 V DC)

Safety: 11,5...36 VDC (Exia 11,5...30 V DC)

Output signal 4...20 mA + HART

Resistance required for communication min. 240 _

Operating conditions

Operating temperature range (ambient temp.) -30...85°C

Materials

Casing Aluminium

option: 316ss

adapter C type, 304ss

adapter PCV type (on _6 elastic pipe) brass
