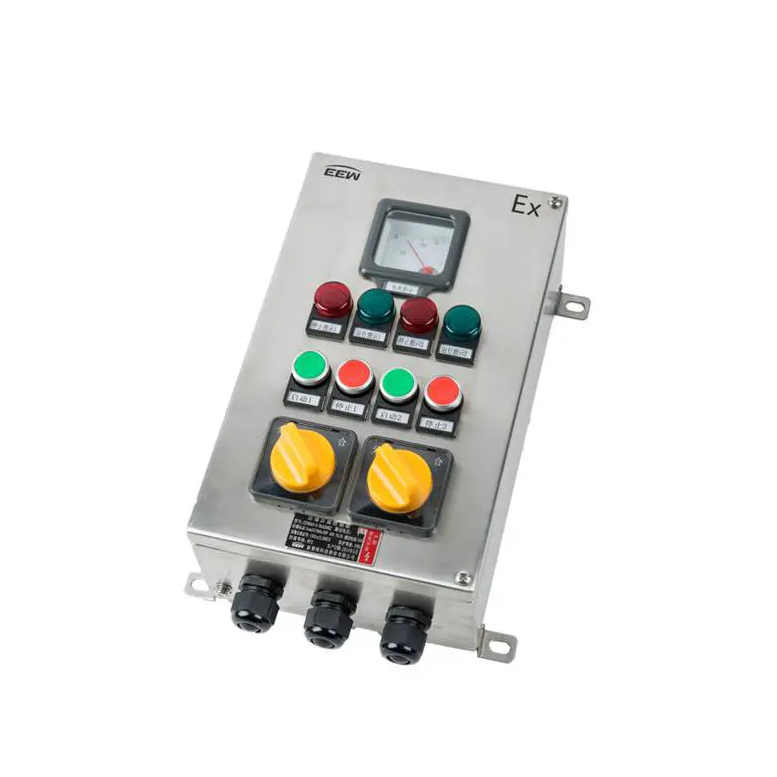

ZXF8044 Explosion Proof Corrosion Resistance Control Panels (IIC,TD

Application

Designed for explosive atmospheres Zone 1 and Zone 2;

Designed for combustible dust Zone 21 and Zone 22;

Designed for IIA, IIB and IIC groups explosive atmospheres;

Designed for temperature classifications T1~T6 ;

Designed for explosive hazardous locations such as oil refinery, storage, chemical, pharmaceuticals,militaryindustries, etc;

Widely used in electrical control circuit; Different types can be designed as per electrical systematic drawing.

Ordering References

If no special requirements, the red button will be equipped with normal closed contact, the green and yellow buttons with normal open contact, and emergency stop button is equipped with a normal closed contact. If there is any different requirement, users need to supply diagram or indicate the contact type and quantity;

Cable entry can be produced as per request;

Standard ordering：ZXF8044-BADKR()

B-/ … ( re fe r to P 222 )

A-()/ …(refer to P224)

D-()/ …(refer to P225)

K-/ …(refer to P226)

R-(/)/ …(refer to P228)

For example: If need ZXF8044 explosion proof corrosion resistance control panel with 6 red indicators and 6 green indicators, AC220V and switch code C, the model shall be ZXF8044-D12K6 D12-6R(AC220)/6G(AC220) K6-6B

Features

Enclosure is made from GRP or 304 stainless steel and it has the features of good shape,corrosion resistance,static resistance,impact resistance,good thermal reliability,etc . Enclosure is increased safety with built-in explosion proof components;

Hinge between cover and enclosure is easy to maintain;

Built-in flameproof control switch has advantages of compact structure, good reliability, small volume, high capacity of turning on-off, long service life and alsowith a lot of functions for users to choose;

Built-in flameproof control switch has advantages of compact structure, good reliability, small volume, high capacity of turning on-off, long service life and alsowith a lot of functions for users to choose;

Built-in explosion proof pushbutton adopts adhesive technology to ensure reliable adhesive strength; Built-in explosion proof indicator with special design is applicable for 220/380V;

Adopt labyrinth sealing structure with foaming process to ensure the good performance of waterproof and dust proof;

Exposed fasteners are of stainless steel material with anti drop design, which is convenient for users to install and maintain; Steel pipe or cable wiring.

Technical Parameters

Compliance with: GB 3836.1, GB 3836.2, GB 3836.3, GB 12476.1, GB12476.5, IEC60079-0, IEC60079-1, IEC60079-7, IEC 61241-0, IEC 61241-1;

Explosion protection: Ex d e IICT6 Gb, Ex tD A21 IP65 T80℃;

Rated voltage: AC 220/380V ;

Rated current: 10A;

Using sorts: AC-15 DC-13;

Ingress protection: IP65;

Corrosion resistance: WF2;

Cable entries: G3/4″~G1″;

Cable outer diameters: Φ13mm~Φ24mm.
