WIKA Test couplings MINIMESS system Model CPK-MM

Applications

* Calibration service companies and service industry

* Calibrations directly on-site

* Maintenance and service facilities

* Pressure test

Special features

* Plug-in and threaded coupling

* Integrated non-return valve enables leak-free mounting and dismounting

* Tool-free fitting of the threaded connections

Description

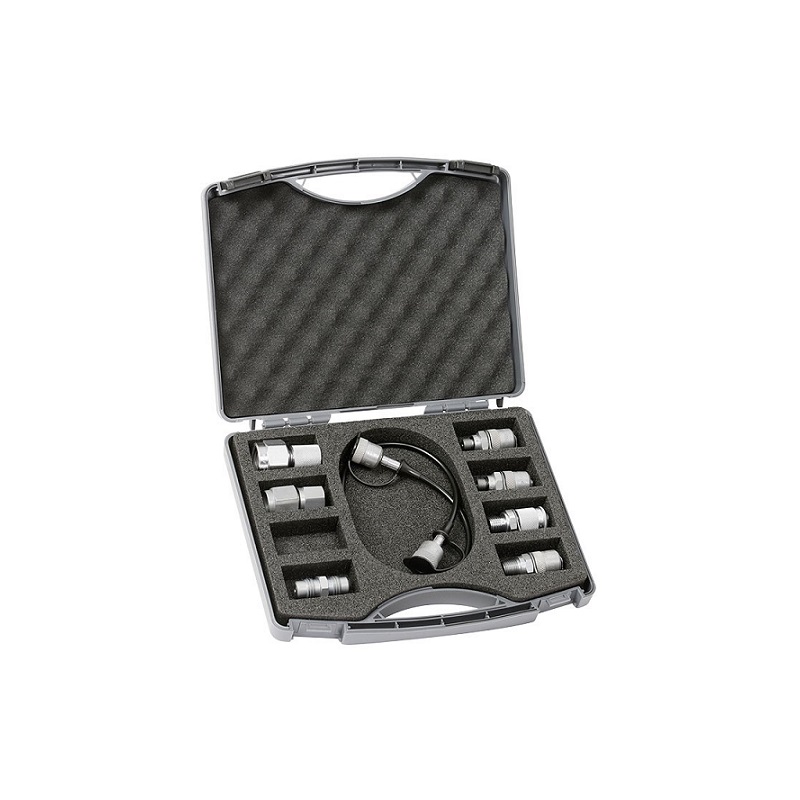

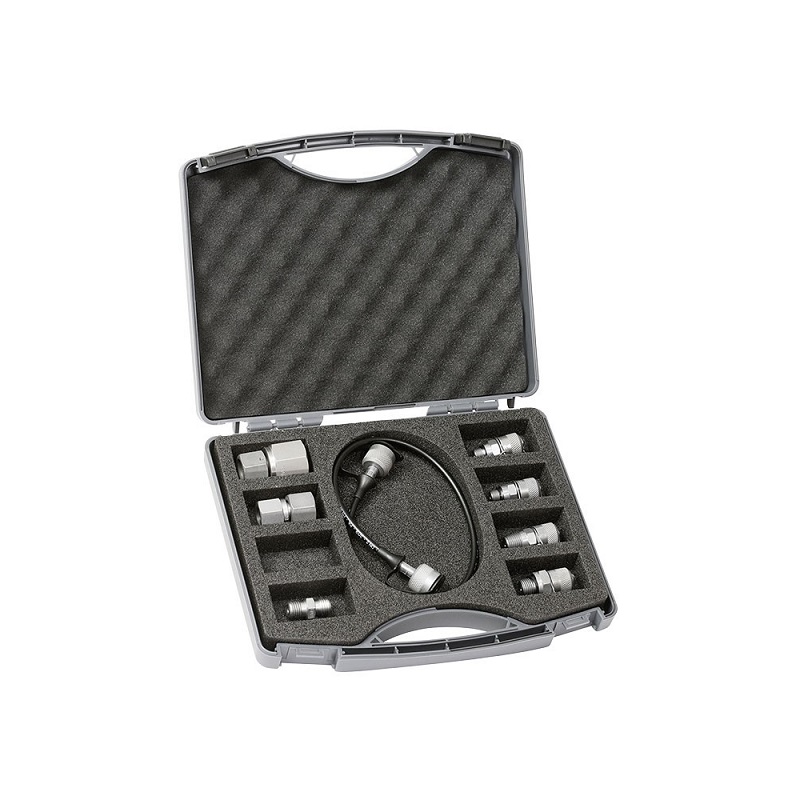

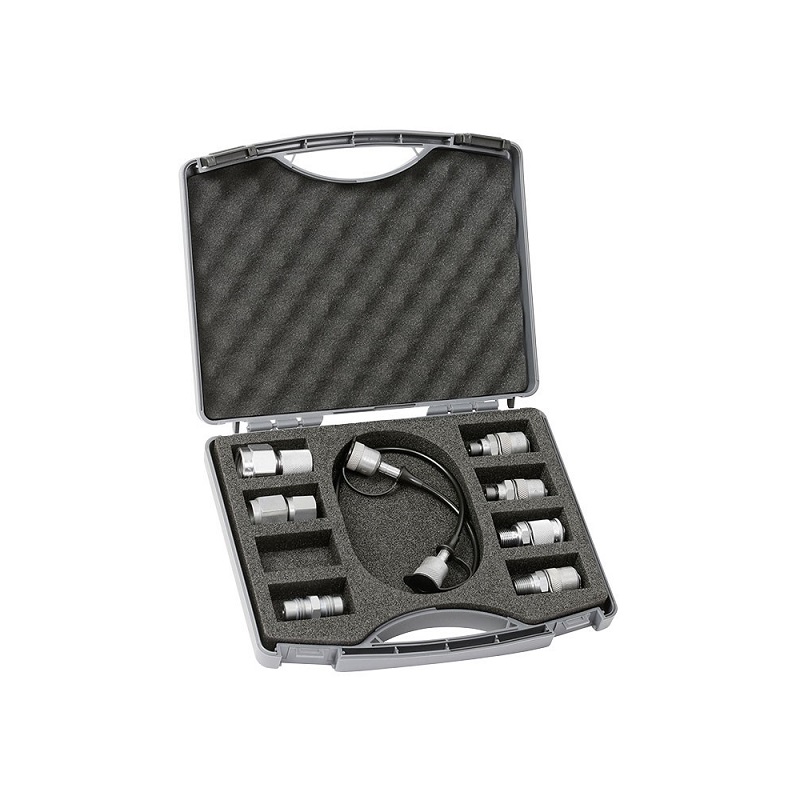

Application areas: Both connection sets contain various test couplings for adapting to WIKA calibration instruments to existing processes with quick-release couplings series MINIMESS^® 1620 or MINIMESS^® 1215. The selection and quantity ofadapters is specifically configured for the various WIKA calibration instruments.

Two connection sets for different systems: In practice, one often finds the test couplings 1620 series and 1215 of connections. The numbers represent the thread sizes of the test coupling connections: 1620 stands for the thread size M16 x 2 and 1215 for the thread size M12 x 1.5.

For this reason, WIKA offers for each of the both systems one connection set.

Different adapter types: The components of both sets can be divided into 4 different categories.

• Test couplings have a series-specific male thread on one side and a BSP or NPT male thread on the other side. The coupling is also fitted with a non-return valve.

• Direct connections for measuring instruments have a series-specific female thread on one side with an internal metal mandrel. The metal mandrel serves to open the non-return valves of the test couplings.

• Hose adapters have a series-specific male thread on both sides. In contrast to the couplings, these have no non-return valve integrated and are particularly suitable for the connection of two hoses.

• Measuring hoses have a series-specific female thread on both sides.
