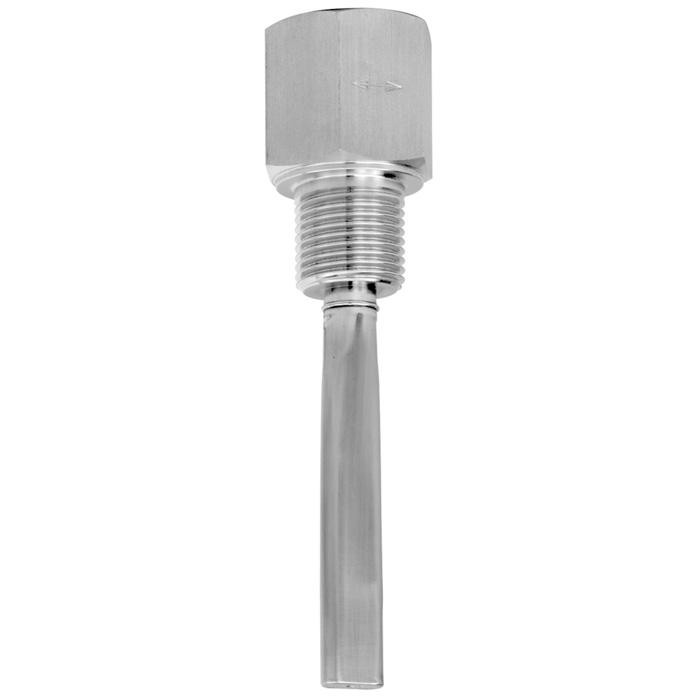

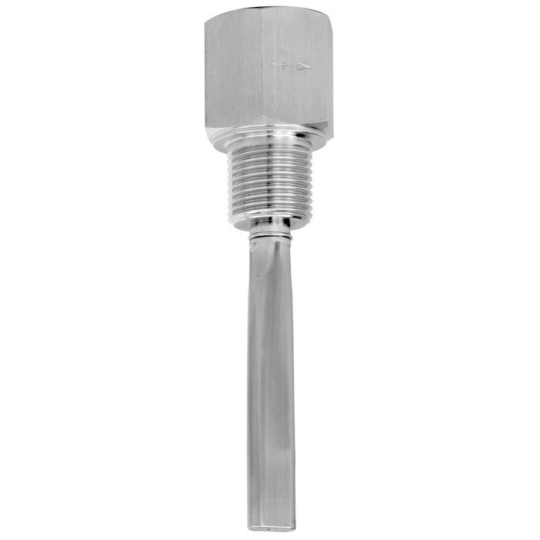

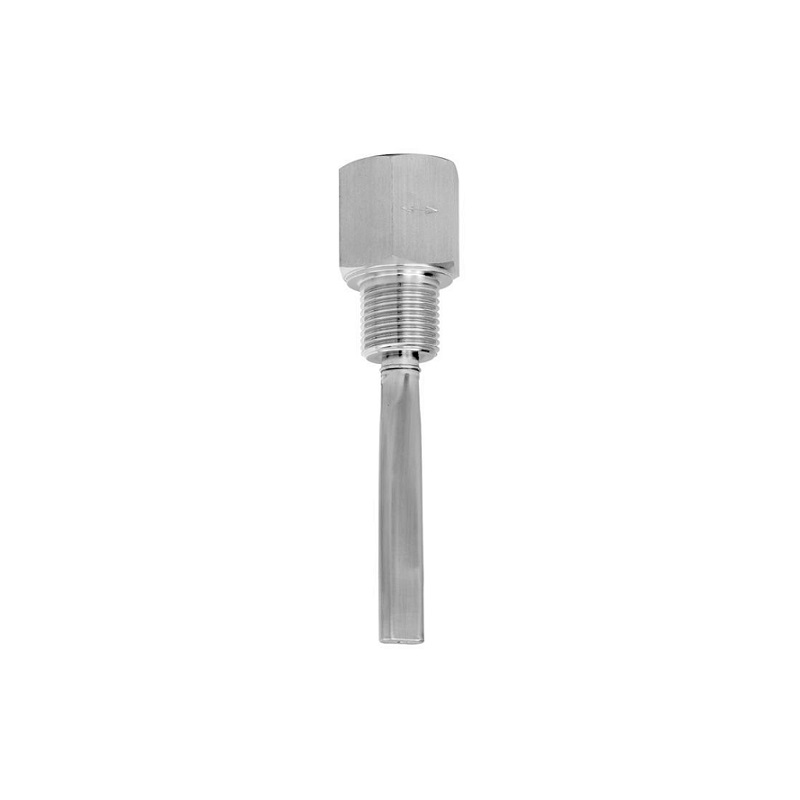

WIKA Diaphragm Probe Seals Models 970.10, 970.11, 970.12

Applications

* For flowing, heterogeneous media

* Suitable for high pressures up to 600 bar

Special Features

* Compact size

* Oval capsule sensor with internal support for stabilization

* Immersed directly in the medium

Description

Process connection: Stainless steel 1.4571
      Model 970.10: G ½ B male thread
      Model 970.11: G ½ B male running nut
      Model 970.12: G ½ female union nut

Pressure rating: PN 600

Pressure ranges: 0 ... 10 to 0 ... 600 bar

Capsule sensor:
      Stainless steel 1.4571, welded with body
      Dimension: 75 x 13 x 6 mm

Instrument connection: Stainless steel 1.4571, G ½ female per EN 837-1

Options

Process connection

• Model 970.10: G ¾ B, M20 x 1.5 male

• Model 970.11: G ¾ B, M20 x 1.5 male

• Model 970.12: G ¾, G 1 female

Capsule sensor

• Dimension: 100 x 18 x 7 mm
  (requires minimum ¾ in. process connection)

Instrument connection

• Capillary (welded with body) and gauge adapter G ½ female to fit surface mounting bracket complete of stainless steel

• Cooling tower (for directly mounted gauge when fluid temperature > 100 °C)
