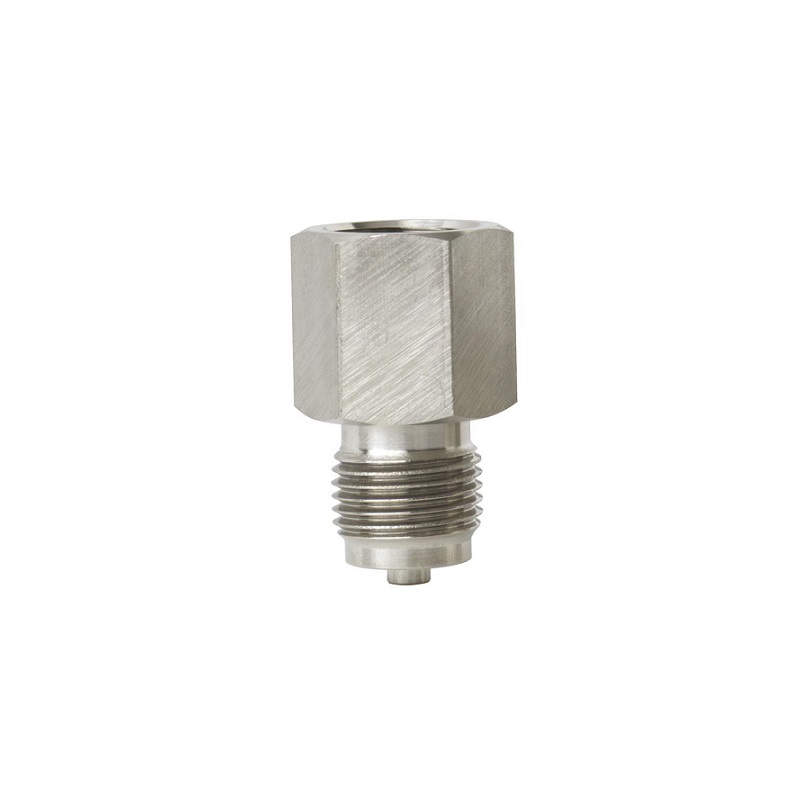

WIKA Pressure Gauge In-Line Filters Model 910.22

Applications

* For mounting to pressure gauges in dirt-sensitive hydraulic and pneumatic systems

* To filter out solid substances from gaseous and liquid media (retention of particulates)

Special Features

* They avoid:

• Plugging of small gauge pressure entries and capillary throttles

• Accumulation of particles in dirt-sensitive gauge interiors and its consequences

* Furthermore they have an effect of a throttle and damp shock pressure

Description

Filter body" Stainless steel 1.4571

Filter disk: Stainless steel 1.4404

Grade of filtration: 200 μm

Porosity: 30 … 50 %

Temperature range: -25 … +200 °C

Operating pressure depends on the sealing washer the customer uses:

      Sealing element PTFE: PN max. 100 bar

      Sealing element stainless steel 1.4571: PN max. 1600 bar

Process connection: Male and female thread per EN 837-1 or male thread NPT
