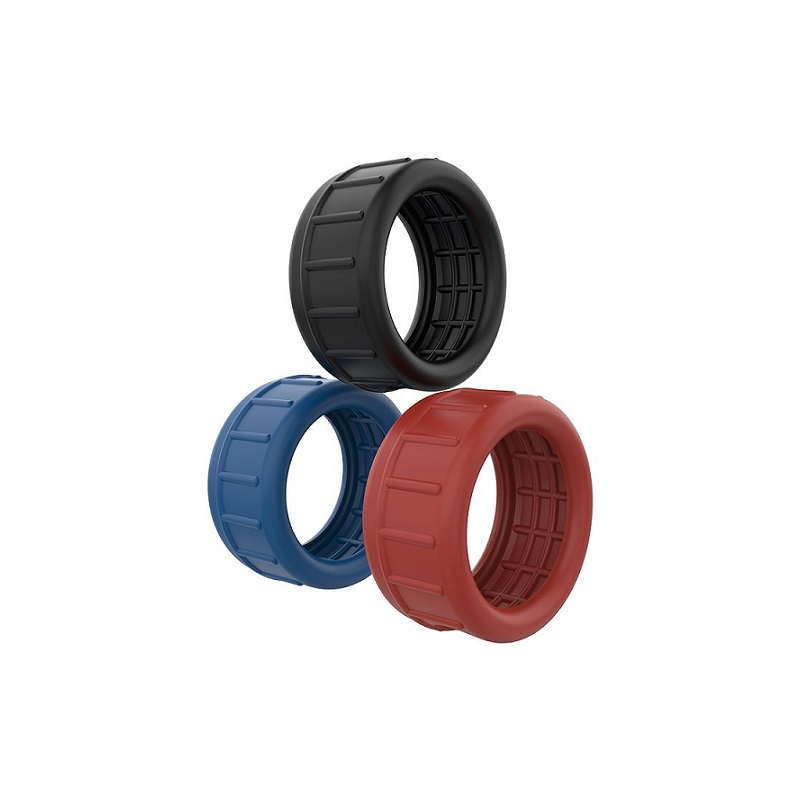

WIKA Case protector for pressure gauge Model 910.18

Applications

• Ranges of use that require protection from impact, shock, corrosion and weather conditions

• For pressure gauges on pressure reducing valves

Special Features

• Use enables a longer service life of the instruments

• For nominal sizes 50 [2"], 63 [2 ½"], 80 [3"] and 100 [4"]

• For instruments with radial or back mount connection locations

• Simple fitting

Description

The model 910.18 case protector is fitted to the pressure gauge before mounting.

The smooth outer surface is broken up by rubber beading and the inner surface is grooved. Thanks to the open back, the case protector can be used for instruments with radial and back mount connection locations without compromising safety functions.

All instrument specifications in accordance with EN 837 or in accordance with ISO 5171 or ISO 7291 continue to be met through the use of the model 910.18.

The colour of the case protector for instruments in accordance with ISO 5171 or ISO 7291 is defined in the standards.
