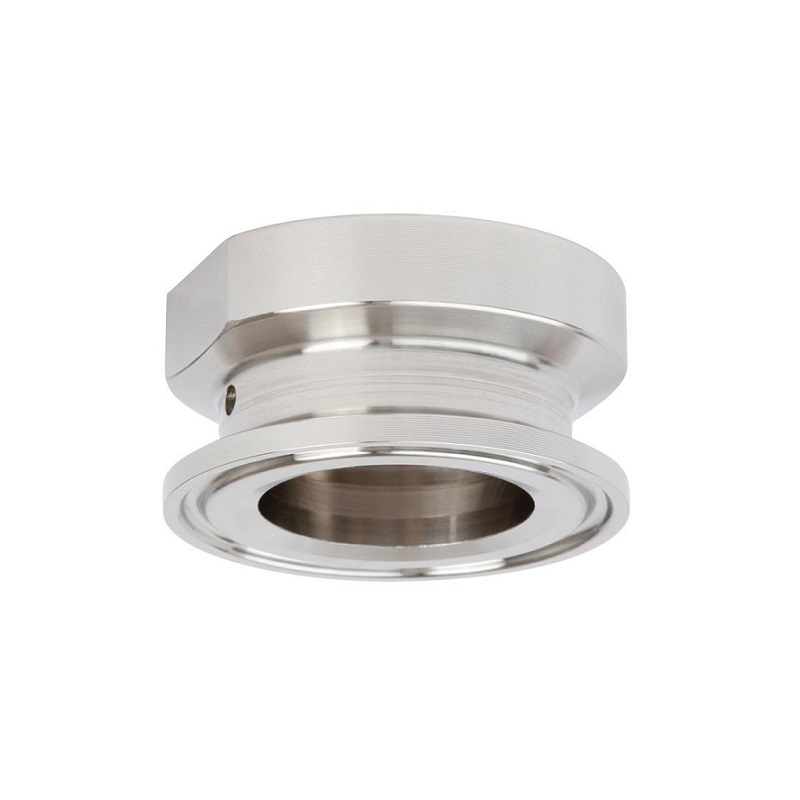

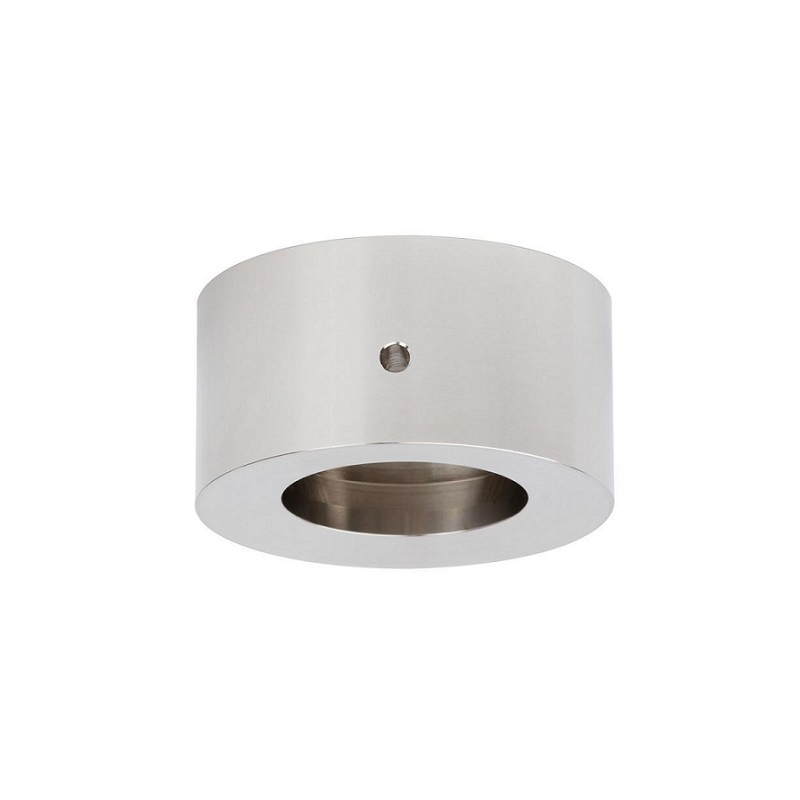

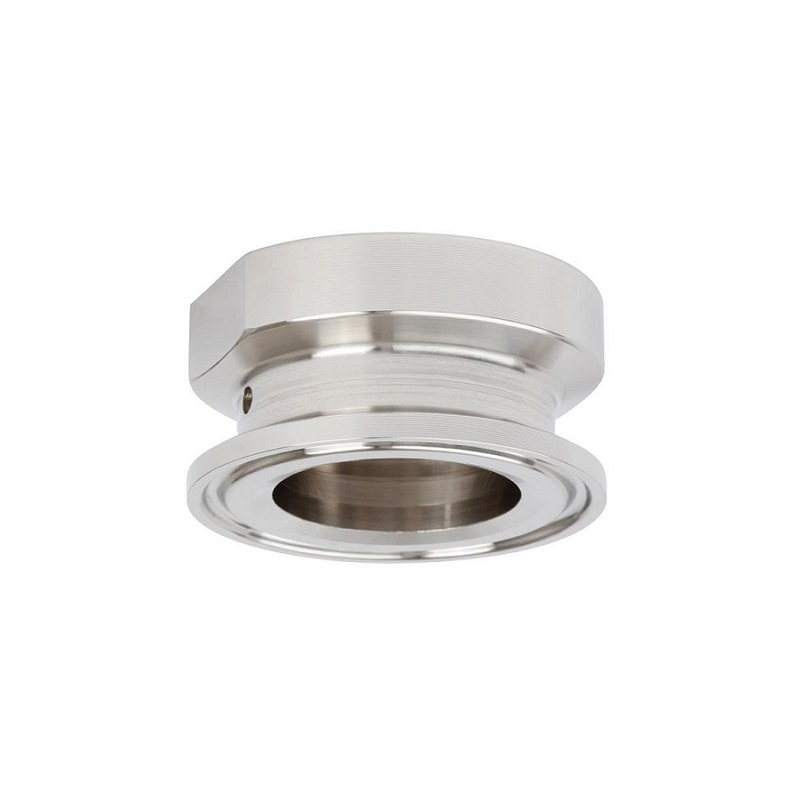

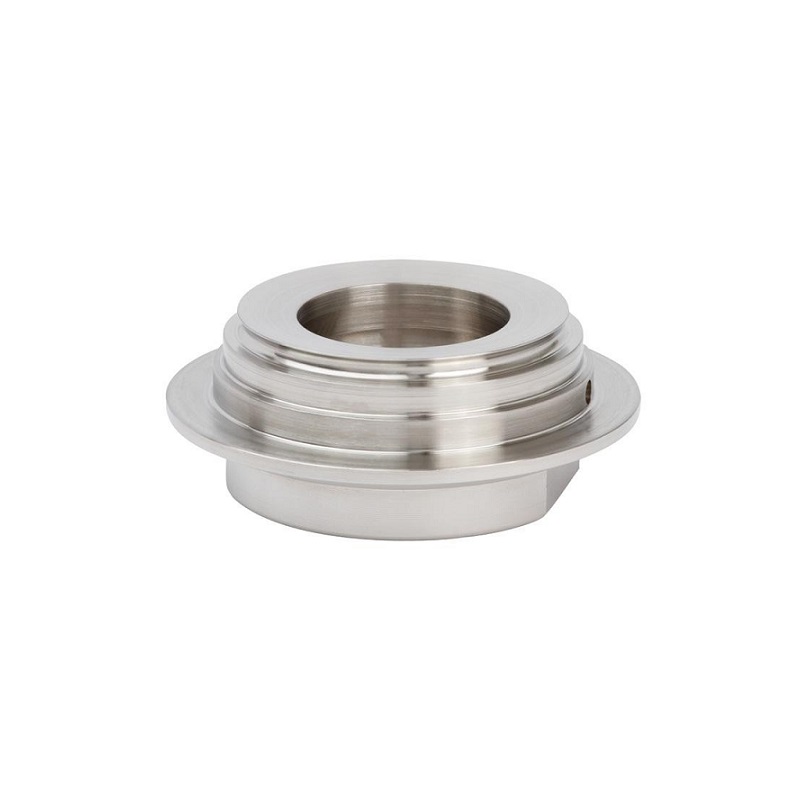

WIKA Adapter system for measuring instruments with G1 hygienic connection Model 910.61

Applications

• Food, beverage and pharmaceutical industry

• Cosmetics industry

Special Features

• Large selection of different process adapters for connection to the G1 hygienic connection

• Measuring instrument and process adapters can be combined by the user

Description

The WIKA process adapter system has been specifically developed to meet the requirements of the food, beverage and pharmaceutical industries.

The adapter system consists of the measuring instrument with G1 hygenic connection and matching process adapter. The flexible, modular system allows connection to a wide range of aseptic process connections (e.g. clamp, threaded, VARIVENT^® or NEUMO^®).

All parts are made of 1.4435 (316L); UNS S31603 stainless steel. The O-ring for sealing the process (optional) is supplied with a 3.1 material certificate per EN 10204. It is available in either EPDM or FKM and is listed as FDA, USP Class VI, as well as 3-A 18-03.

The WIKA adapter system meets the high requirements of sterile processes.

Measuring instrument and process adapter are easily connected and disconnected using a spanner.

Customer benefit

• Stock cost reduction

• Immediate availability of measuring instruments with different process connections

• Avoid long production downtimes
