WIKA Accessories for diaphragm seals Models 910.19, 910.20, 910.23

Application

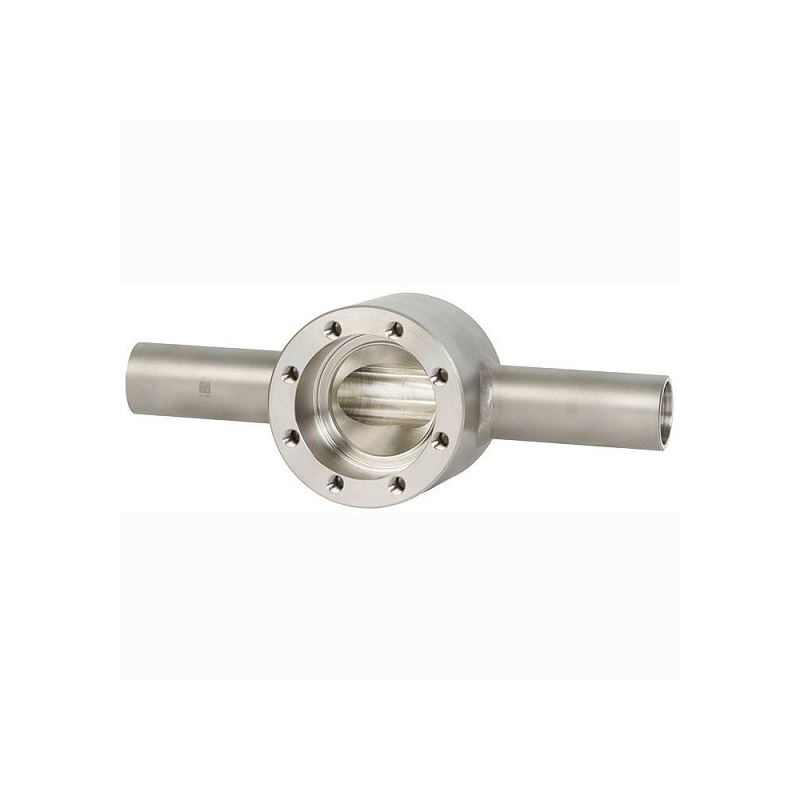

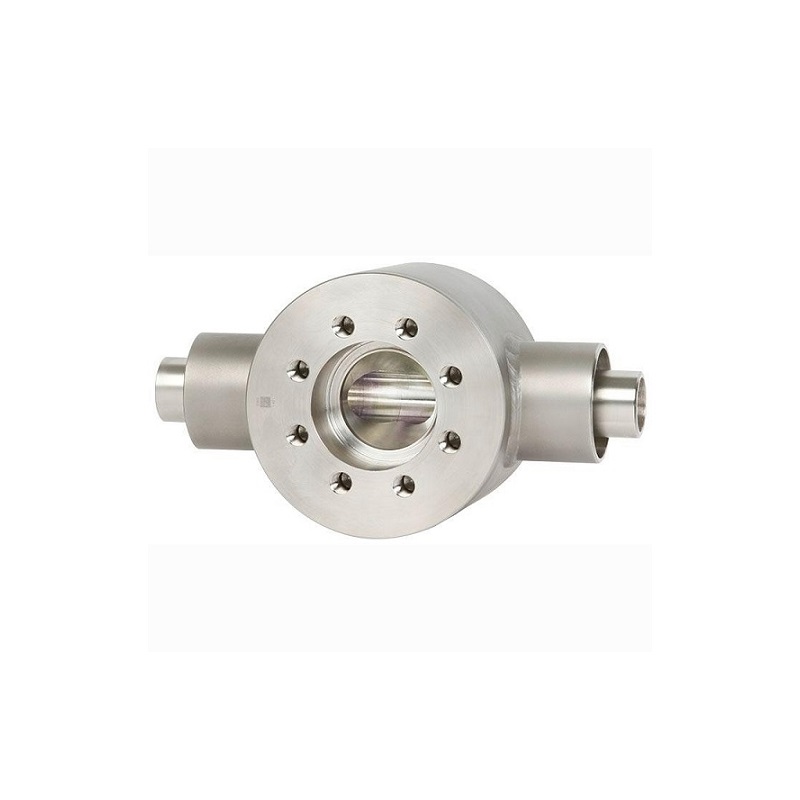

• For welding into the product line or heating line for establishing a measuring point connection (block flange)

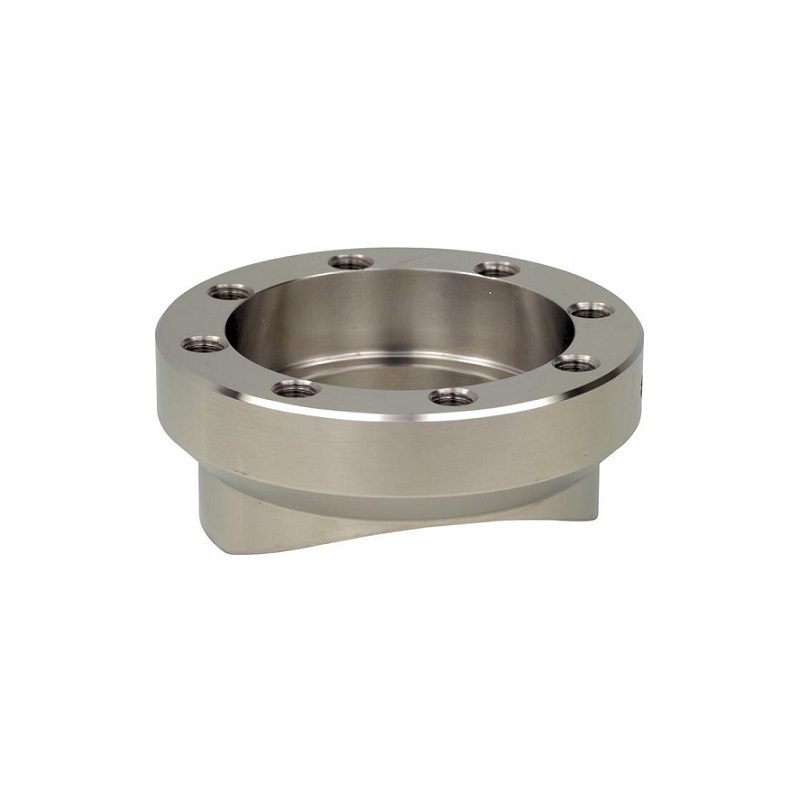

• For welding onto the process line for establishing a measuring point connection (saddle flange)

• Process industry

• Petrochemical industry

Special Features

• For welding into pipes DN 15 ... DN 80 (block flange)

• For welding onto pipes DN 65 ... DN 150 or DN 2 ½" ... 6" (saddle flange)

• For diaphragm seal model 990.15

Description

Depending on customer requirements, the model 990.15 can be subsequently integrated into a process by means of the accessory models 910.19, 910.20 and 910.23.A safe measuring result for smaller pipe diameters can be guaranteed by connecting the diaphragm seal via a block flange.

Saddle flanges enable the integration of a measuring point into pipelines from a nominal width of DN 65 (2 ½").
