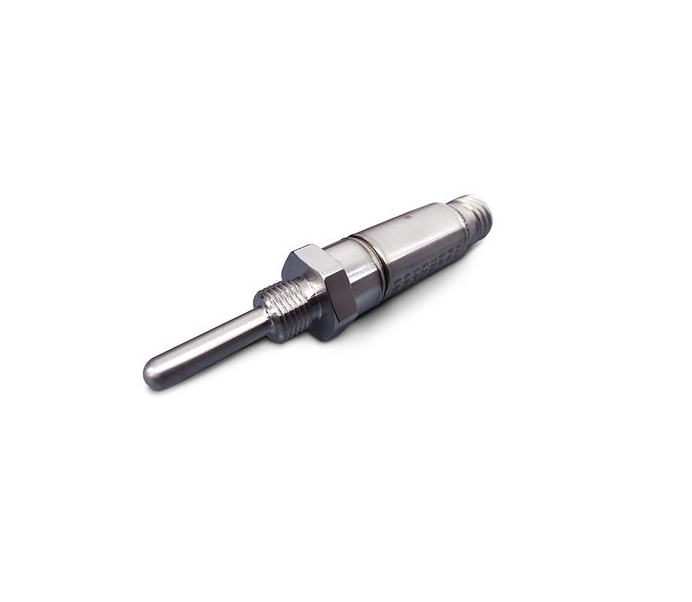

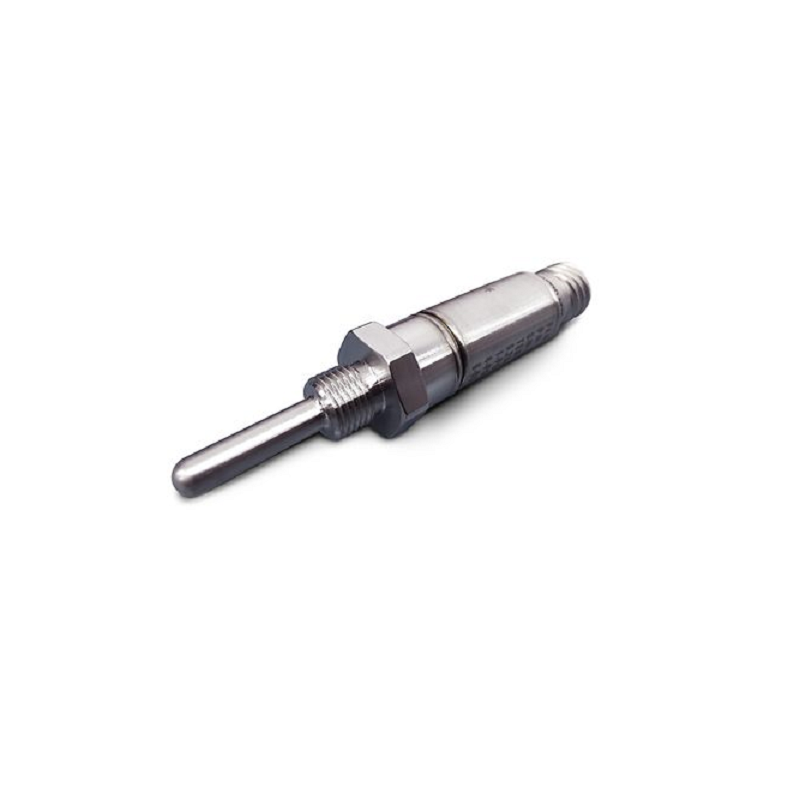

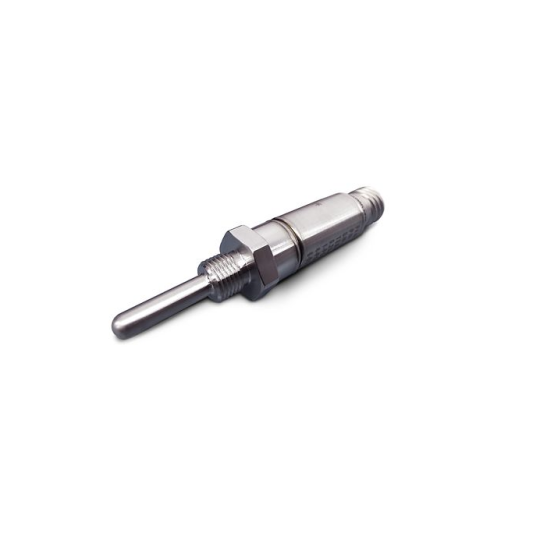

Rosemount Paine 225-10-0X0 Series, Digital Temperature Probe

Product Description

The Paine 25-10-0X0 Series, Digital Temperature Probe is a temperature measurement solution with real-time, digital accuracy and rapid change detection. With platinum sensing and proprietary sensor technology, this probe offers temperature measurements of up to 302 °F (150 °C) and is well-suited for continuous monitoring of remote fluid, material and equipment temperatures. The small, all-welded seal construction of this probe performs well in limited spaces as well as extreme environments.

Specifications

* Temperature Range: -40 to 302 °F (-40 to 150 °C)

* Warranty: 1 year

* Materials of Construction: Alloy 725 solution annealed and aged to maximum hardness of 43 HRC

* Pressure Port/Fitting: 1/2-20 UNF 3A, designed for use with 3-905 size O-ring

* Certifications/Approvals: None

Features

• Probe design offers direct media stream temperature measurement to provide accuracy and continuous monitoring

• Rapid change detection delivers fast measurement data to ensure optimal process performance

• All-welded, sealed construction withstands shock, vibration and high temperature conditions for reliability

• Customizable sensor options available for fit-for-use designs
