Product Description

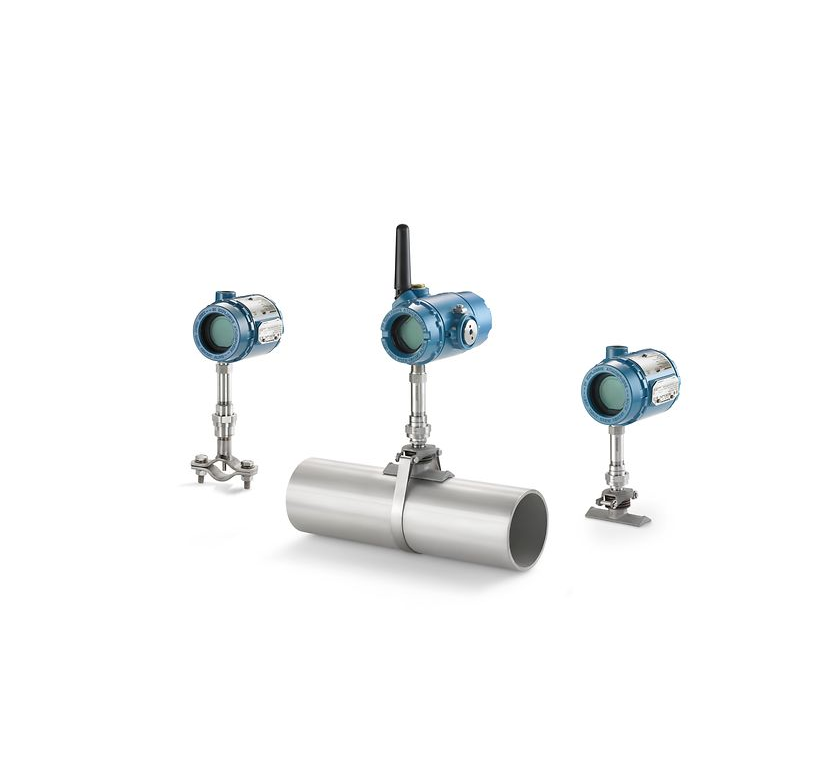

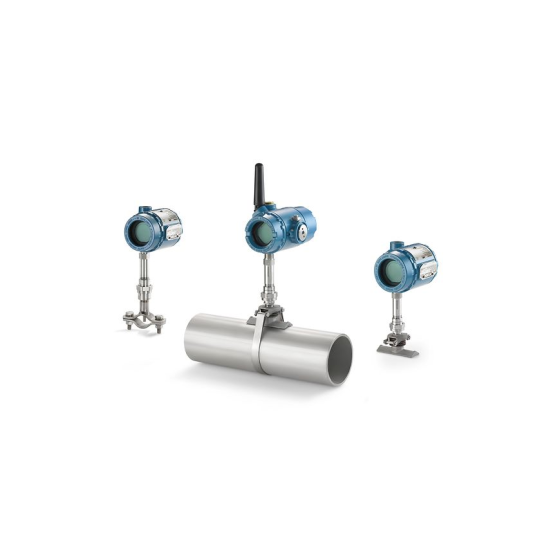

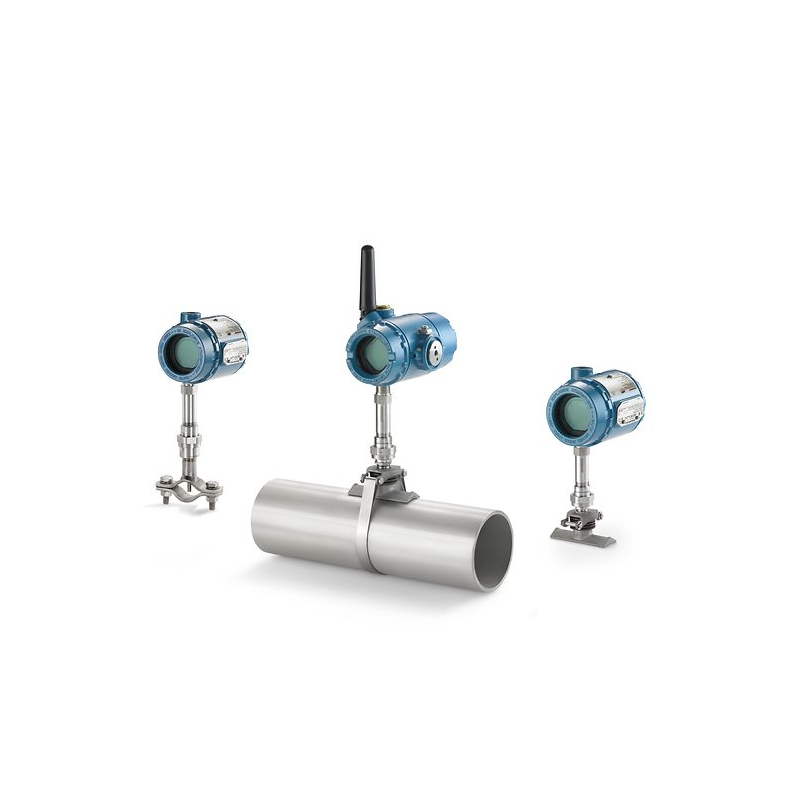

Rosemount™ X-well™ Technology accurately measures internal process temperature without a thermowell or process penetration. Safely record process temperature with this non-intrusive solution - no cutting pipes, calculating wake frequency or process shutdown.

• Decrease design and engineering time by up to 65%

• Improve safety by eliminating process shutdowns and pipe modification

• Use in a wide variety of monitoring and challenging applications

• Reduce total cost of ownership by 30%

Specifications

* Input:

            Rosemount X-well Technology with 3144P Transmitter: Single sensor capability with RTD sensor inputs

            Rosemount X-well Technology with 648 Transmitter: Single sensor capability with RTD sensor inputs

* Output Signal:

                          Rosemount X-well Technology with 3144P Transmitter: 4-20 mA/HART® protocol

                          Rosemount X-well Technology with 648 Transmitter: WirelessHART® protocol

* Housing: Dual-compartment field mount

* Display/Interface: Large LCD display with percent range graph and buttons/switches

* Diagnostics:

                       Rosemount X-well Technology with 3144P Transmitter: Basic diagnostics including open/short sensor diagnostics

                       Rosemount X-well Technology with 648 Transmitter: Basic diagnostics including open/short sensor diagnostics

* Certifications/Approvals:

                                          Rosemount X-well Technology with 3144P Transmitter: Hazardous location, marine type

                                          Rosemount X-well Technology with 648 Transmitter: Hazardous location, marine type

                                          See full specs for complete list of certifications

* Power Module Life: Rosemount X-well Technology with 648 Transmitter: Up to 10-year life, field replaceable (order separately)

* Antenna Type: Rosemount X-well Technology with 648 Transmitter: External (standard and extended range)

* Update Rate: Rosemount X-well Technology with 648 Transmitter: 1 sec. to 60 min., user selectable

Features

• Rosemount X-well Technology Features with 3144P Transmitter

  • Dual compartment housing provides superior protection in harsh environments

  • Minimum and maximum temperature tracking allows monitoring of temperature extremes for easy troubleshooting

  • Device dashboards provide easy interface for simplified device configuration and diagnostic troubleshooting

• Rosemount X-well Technology Features with 648 Transmitter

  • Best-in-class wireless accuracy and stability for process automation

  • WirelessHART® technology is secure, cost-effective and delivers >99% data reliability

  • Easy installation enables quick instrumentation of measurement points without the cost of wiring

  • LCD display offers access to measurement and diagnostic information in the field, enhancing process visibility

  • SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal

  • Durable dual-compartment housing offers added field reliability
