Rosemount Paine 215-01-080 Series, Surface, Temperature Sensor

Product Description

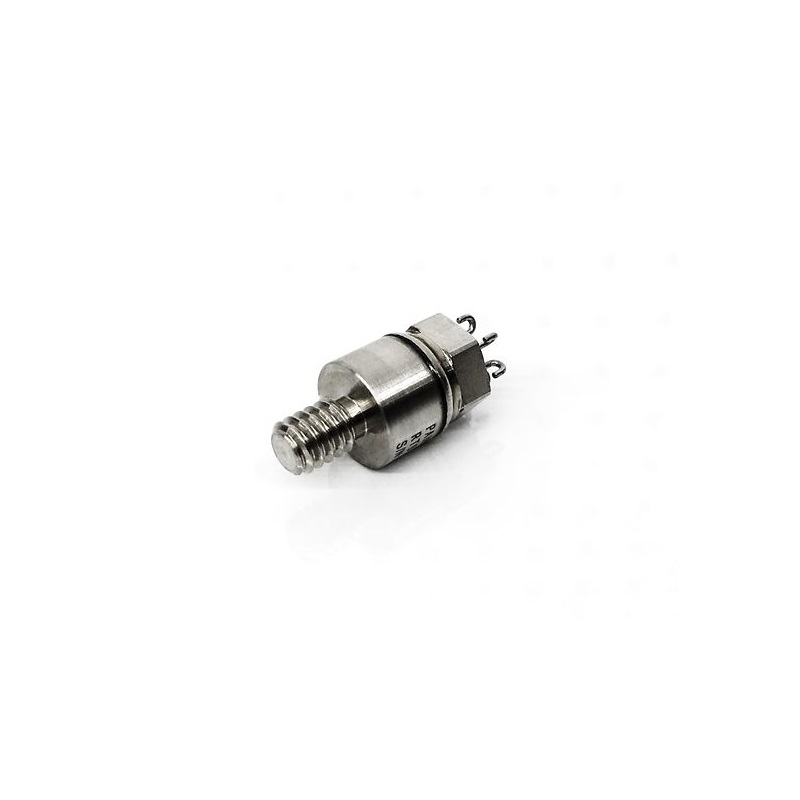

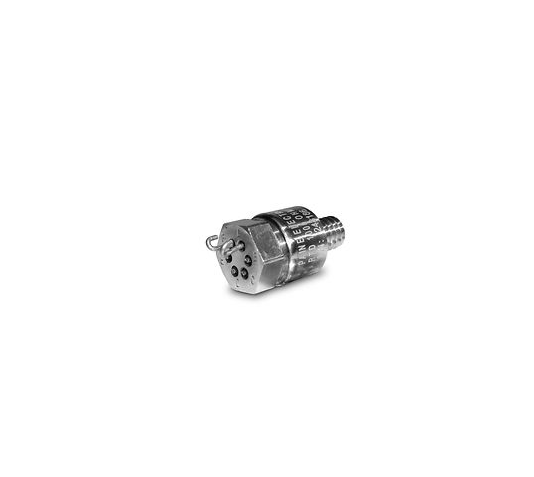

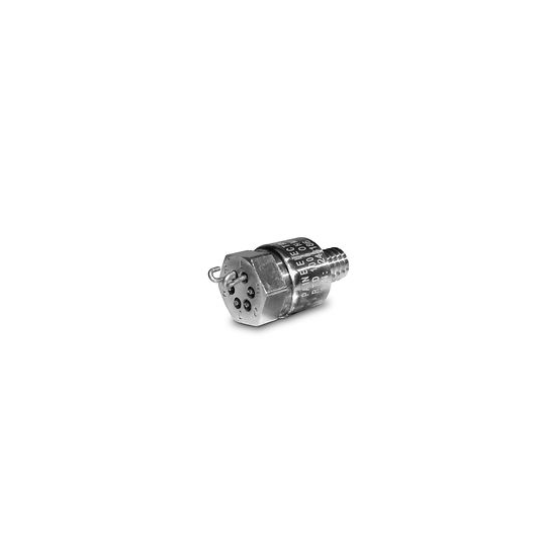

The Paine 215-01-080 Series, Surface, Temperature Sensor is a platinum, resistance temperature detector (RTD) probe designed for high temperatures up to 482 °F (250 °C). Engineered as a compact and corrosion-resistant sensor, this RTD probe features long-term performance with reliability, stability and repeatability. These sensors provide accuracy and rapid response times and are well-suited for critical surface temperature measurements of machinery and process equipment.

Specifications

* Temperature Range: -4 to 482 °F (-20 to 250 °C)

* Warranty: 1 year

* Materials of Construction: Hex Header: Inconel X750. Case: Inconel 718, UNSN07718, solution annealed and aged to Rockwell C40 maximum

* Pressure Port/Fitting: 1 /4 -20 UNC-2A

* Certifications/Approvals: None

Features

• Sensor withstands corrosion and oxidation in harsh and extreme environments for durability

• Fast response times produce precise measurement data for improved efficiency

• Offered in 0.515-in. maximum diameter package for a very small form factor

• Long-term stability and accuracy provides reliable and consistent measurement performance

• Customizable sensor options available for fit-for-use designs
