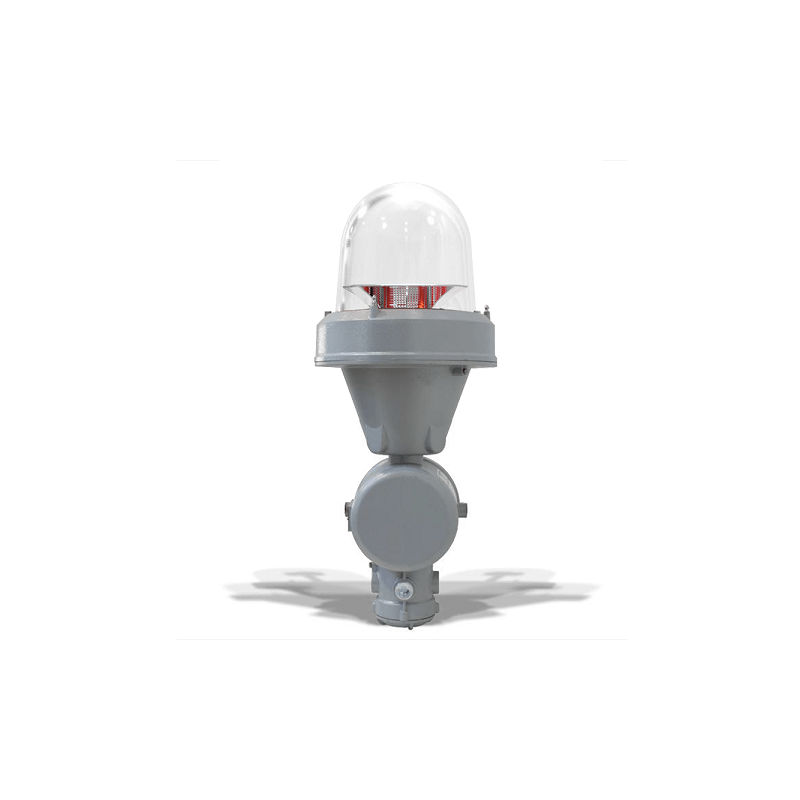

MIOLB-E1_24S, MIOLB-E1_48S, MIOLB-E1_23S - Obstruction Light for Explosion Proof, Medium Intensity Type B
Nhà sản xuất: Clampco Sistemi
Order Code |
MIOLB-E1_24S |
MIOLB-E1_48S |
MIOLB-E1_23S |
|
---|---|---|---|---|
Lamp ID: |
SEGS24P2K_EX |
SEGS48P2K_EX |
SEGS23P2K_EX |
|
Light Type: |
Medium-Intensity, Type B |
|||
Typical use: |
Night time |
|||
Light source: |
LED |
|||
Type of beacon: |
Single flashing |
|||
Colour: |
Red according to CIE Chromaticity Boundary |
|||
Light Intensity: |
> 2000 cd |
|||
Flashing rate: |
20-40 fpm (flash per minutes) |
|||
Material of the body: |
Die cast aluminum alloy copper free |
|||
Material of the transparent cap: |
Glass |
|||
Input voltage: |
24 Vdc |
48 – 53 Vdc |
110 – 230 Vac (50-60 Hz) |
|
Average power consumption: |
11 watt @ 25fpm 𝜏 = 500 ms |
|||
Peak power consumption: |
54 W |
54 W |
55 W |
