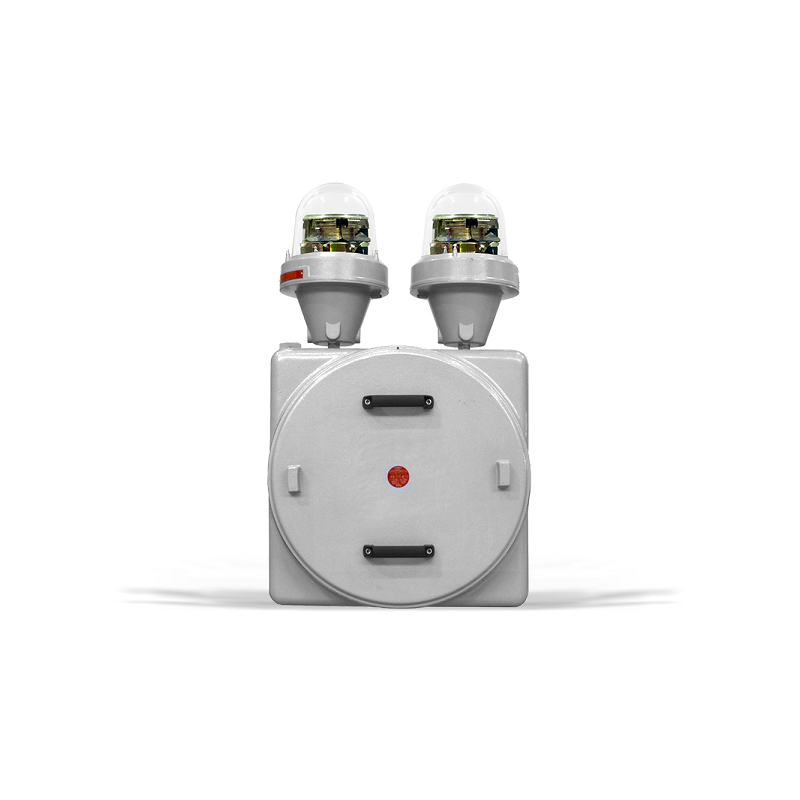

MIOLA-E1_23U - Double (Main + Stand-By) Obstruction Light for Explosion Proof, Medium Intensity Type A

Lamp ID:

SEGD23P20K_EX

Light Type:

Medium-Intensity, Type A

Typical use:

Day and Night time

Light source:

LED

Type of beacon:

Double

Colour:

White according to CIE Chromaticity Boundary

Light Intensity:

20 000 cd (day) / 2000 cd (night)

Flashing rate:

20 fpm (flash per minutes) factory fixed

Material of the body:

Die cast aluminum alloy copper free

Material of the transparent cap:

Glass

Input voltage:

110 – 230 Vac (50-60 Hz)

Average power consumption:

55 + 55 watt (day) / 9 + 9 watt (night) @ 20fpm 𝜏 = 500 ms

Peak power consumption:

320 + 320 watt (day) / 55 + 55 watt (night)
