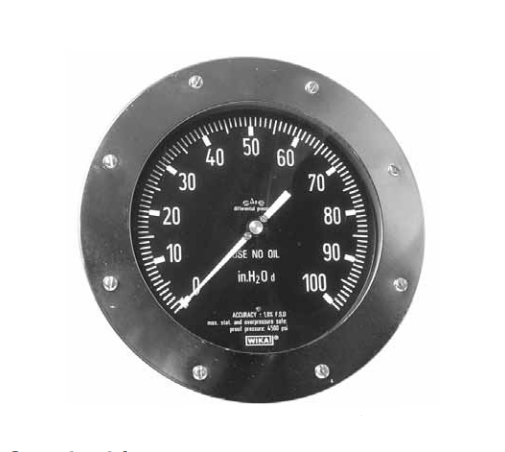

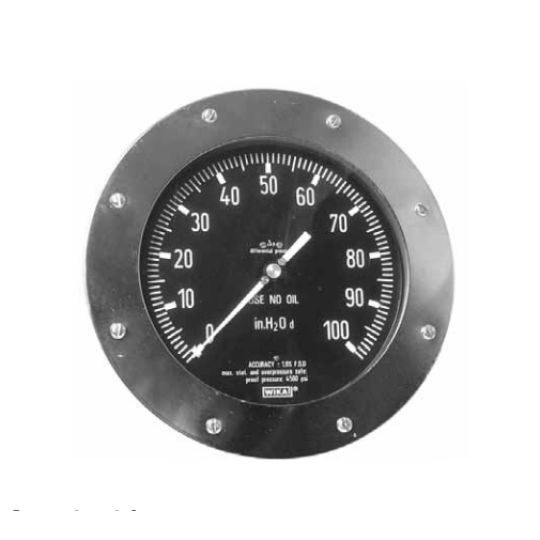

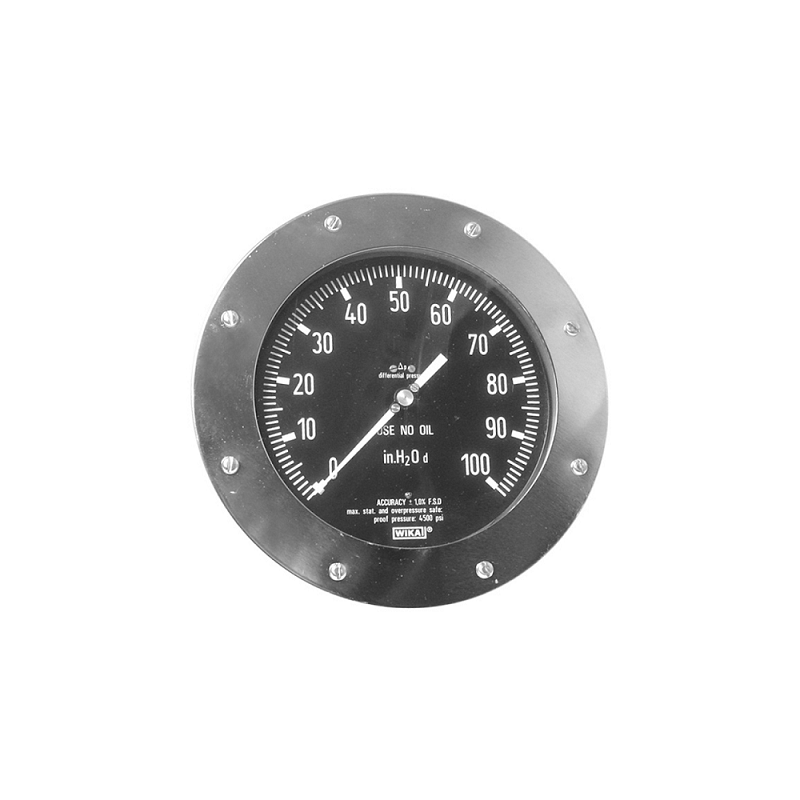

Applications
* For measurement in applications requiring low to medium differential and/or static process pressures.
* For cryogenic gases or corrosive environments with either liquid or gaseous media.
Product features
* External zero point adjustment
* Membrane sensing element
* Black powder-coated aluminum case
* 600 psid maximum working pressure
* Differential pressure ranges to 400 psid
Specifications
Nominal Sizes: 4½" (115 mm), 6" (160 mm)
Accuracy (on increasing pressure): ± 1% of span
Scale Ranges
0/100 H2Od through 0/400 psid
(250 mbard through 25 bard)
Maximum Safe Working Pressure (Overpressure Safety): 600 psig (40 barg)
Operating Temperature
Ambient: -40°F to +212°F (-40°C to +100°C)
Media: max +100°C (+212°F)
Weather protection: NEMA 4X (IP 66)
Pressure connections
Standard:1/4" NPT female, dual connections, top and bottom
Optional:
1/4" NPT female, back connection (panel mounting only, wall and pipe mounting bracket is not compatible with back connection).
1/2" NPT female, dual connections, top and bottom mount with adapters.
1/2" NPT female, back connection with adapters (panel mounting only; wall & pipe mounting bracket is not compatible with back connection).
Pressure connection markings
(+) High side connection
(-) Low side connection
Sensing Element (Wetted Parts)
Housing: 316L stainless steel
Membranes: 316L stainless steel / Inconel® 718 (NiCr-alloy)
O-rings: PTFE
Suitable for 02 service
Movement: Stainless steel
System Fill: Halocarbon oil
Dial Case: Black powder-coated aluminum
Bezel Ring: Stainless steel polished
Dial: Black aluminum with white lettering - standard
Pointer: White aluminum
Window: Polycarbonate
Standard Scale: in. H2Od
Zero Adjustment: External through top of case
Mounting: Panel mounting kit is included. Wall or pipe mount kits are available as an option (for top/bottom connection only).
Warranty: Seven (7) years limited
