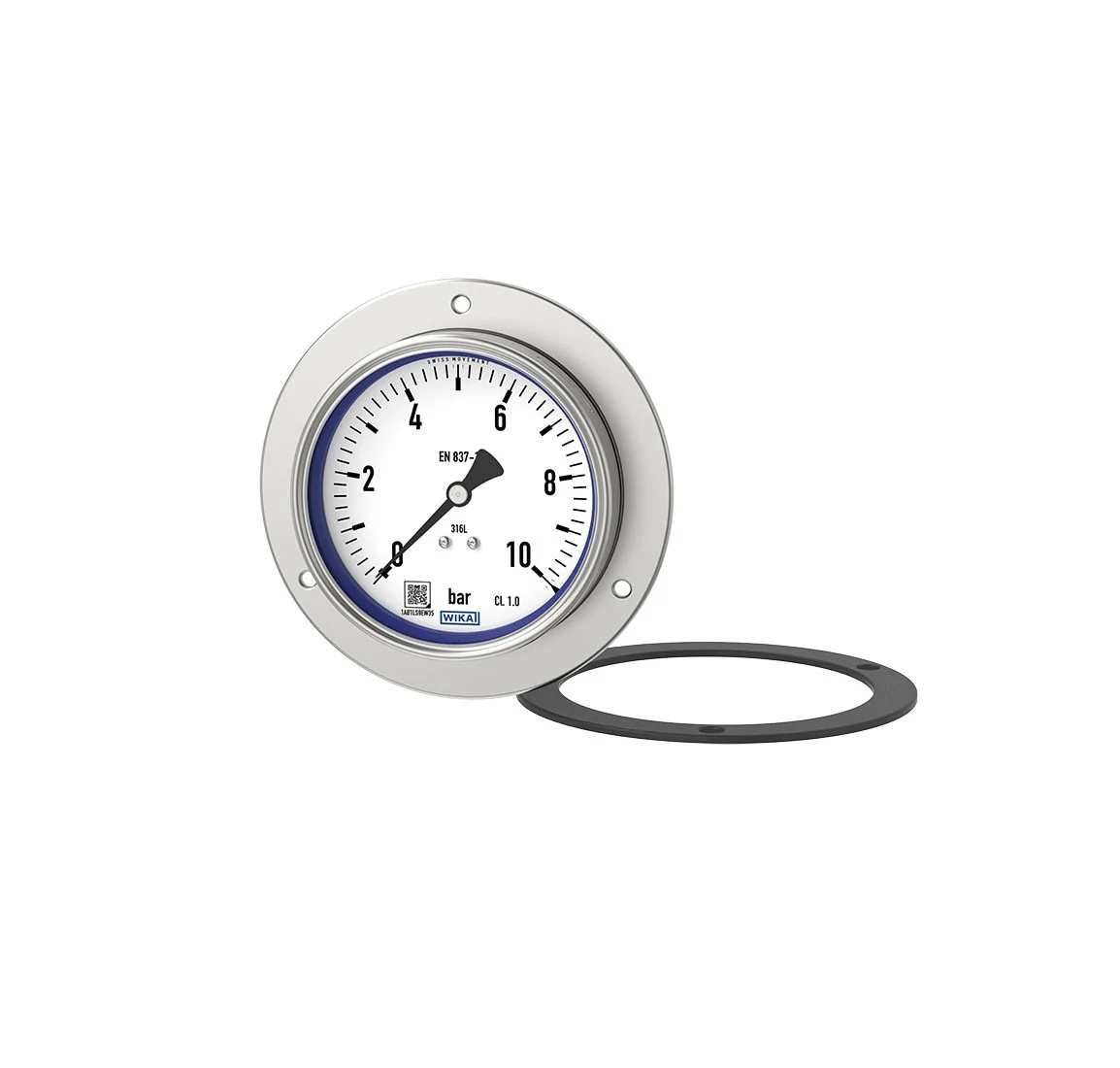

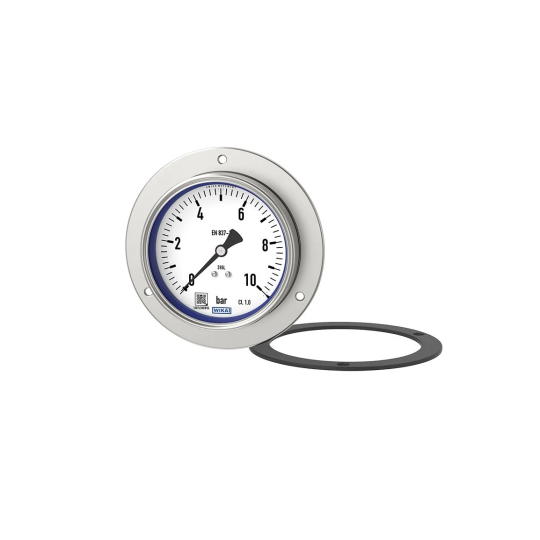

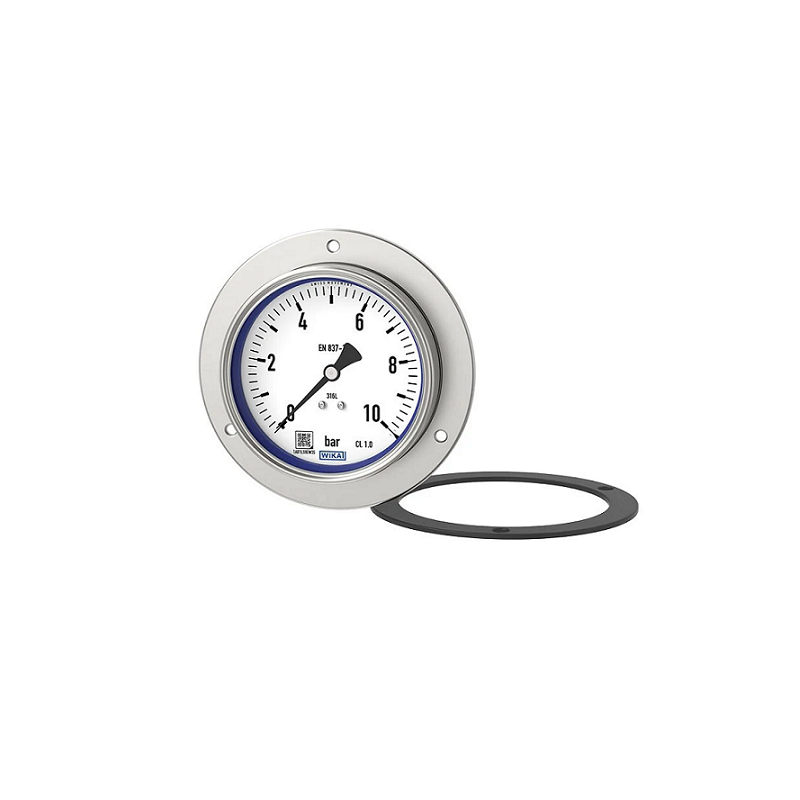

ĐỒNG HỒ ĐO ÁP SUẤT WIKA PG23CP

Standard version
Version: EN 837-1
Nominal size in mm: 63, 100
Accuracy class:
      NS 63: 1.6
      NS 100: 1.0
Scale ranges:
      NS 63: 0 ... 1 to 0 ... 1,000 bar
      NS 100: 0 ... 0.6 to 0 ... 1,600 bar
      or all other equivalent vacuum or combined pressure and vacuum ranges
Pressure limitation
NS 63:
      Steady: 3/4 x full scale value
      Fluctuating: 2/3 x full scale value
      Short time: Full scale value
NS 100:
      Steady: Full scale value
      Fluctuating: 0.9 x full scale value
      Short time: 1.3 x full scale value
Permissible temperature
      Ambient: -40 … +60 °C
      Medium: +200 °C maximum
Temperature effect: When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of full scale value
Ingress protection per IEC/EN 60529: IP65
      IP66 at the front, after professional panel mounting
Process connection: Stainless steel 316L (NS 63: 1.4571)

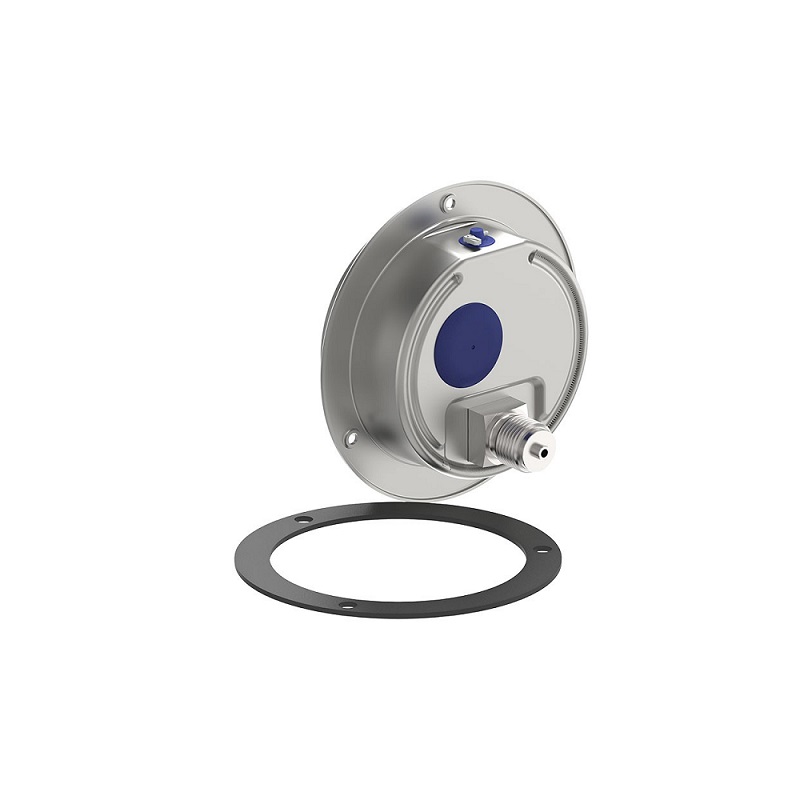

      Lower back mount
      NS 63: ¼ NPT (male), SW 11
      NS 100: ½ NPT (male), SW 17
Pressure element: Stainless steel 316L
      C-type or helical type
Movement: Stainless steel
Dial: Aluminium, white, black lettering
      NS 63 with pointer stop pin
Pointer: Aluminium, black
Case: Stainless steel, all welded mounting ring, with blow-out device at case circumference, o‘clock (NS 63) and on the back of the case (NS 100), scale ranges ≤ 0 ... 16 bar with compensating valve to vent case
Window: Laminated safety glass (NS 63: Polcarbonate)
Ring: Bayonet ring, stainless steel
Sealing: Flat gasket from NBR 2.5 mm
Options
* Other process connection, e.g. autoclave MP: 1/4-28 UNF LH-2A SM250CX20 and autoclave HP: 1/4-28 UNF LH-2A M250C
* Sealings (model 910.17, see data sheet AC 09.08)
* Safety version “S3” with solid baffle wall and blow-out back per EN-837-1
* Restrictor: Filling liquid glycerine or glycerine-water mixture Permissible ambient temperature: -20 ... +60 °C, medium temperature: +100 °C maximum
      Filling liquid silicone oil M50
