ĐỒNG HỒ ĐO ÁP SUẤT WIKA 100.10.80

Nominal size in mm

63, 80

Accuracy class

Pressure: 2.5 (EN 837-1)

Temperature: ±2.5 °C

Scale ranges

Pressure: 0 ... 1 to 0 ... 16 bar

Temperature: 0 ... 100 to 0 ... 150 °C

Working ranges

Pressure:

Steady:        3/4 x full scale value

Fluctuating:  2/3 x full scale value

Short time:   Full scale value

Temperature:

Full scale value

Measuring elements

Pressure: Bourdon tube, copper alloy

Temperature: Bimetal coil, copper alloy

Process connection

R 1/2 ISO 7 (male), 22 mm flats

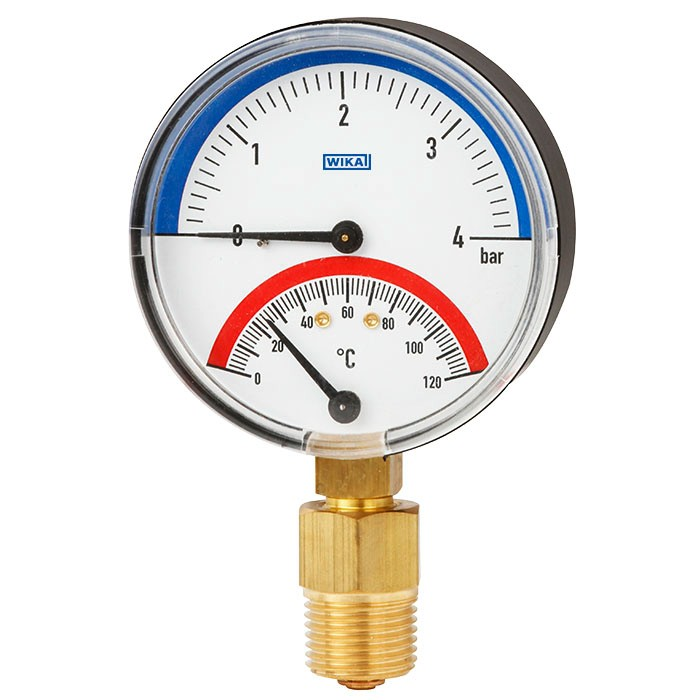

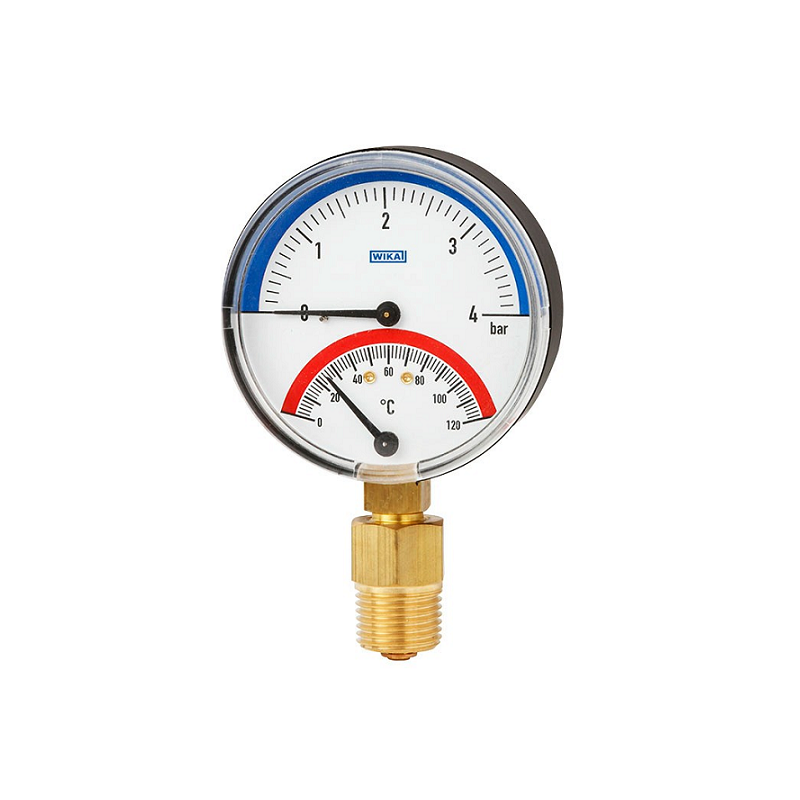

Models 100.01, 100.10: Lower mount (LM) 1)

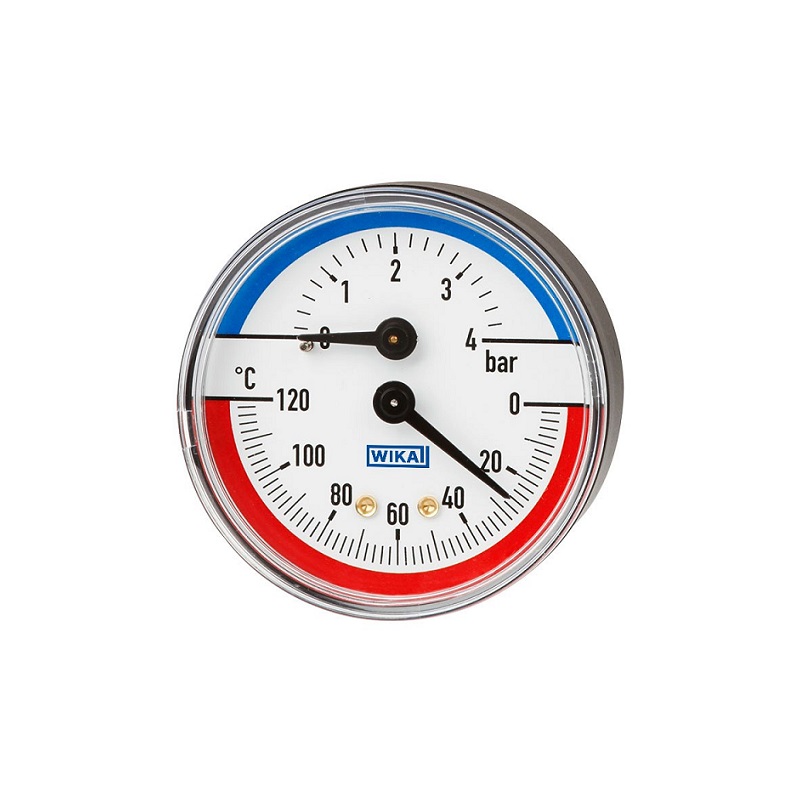

Models 100.02, 100.12: Centre back mount (CBM)

1) Not for NS 63

Case

Models 100.01, 100.02: Plastic, black

Models 100.10, 100.12: Steel, black lacquered

Movement

Copper alloy

Dial

Aluminium, white, black lettering

Pressure scale marked in blue, temperature scale marked in red

Models 100.01, 100.02: At the top pressure, at the bottom

temperature (model 100.01: Temp. scale bent downward)

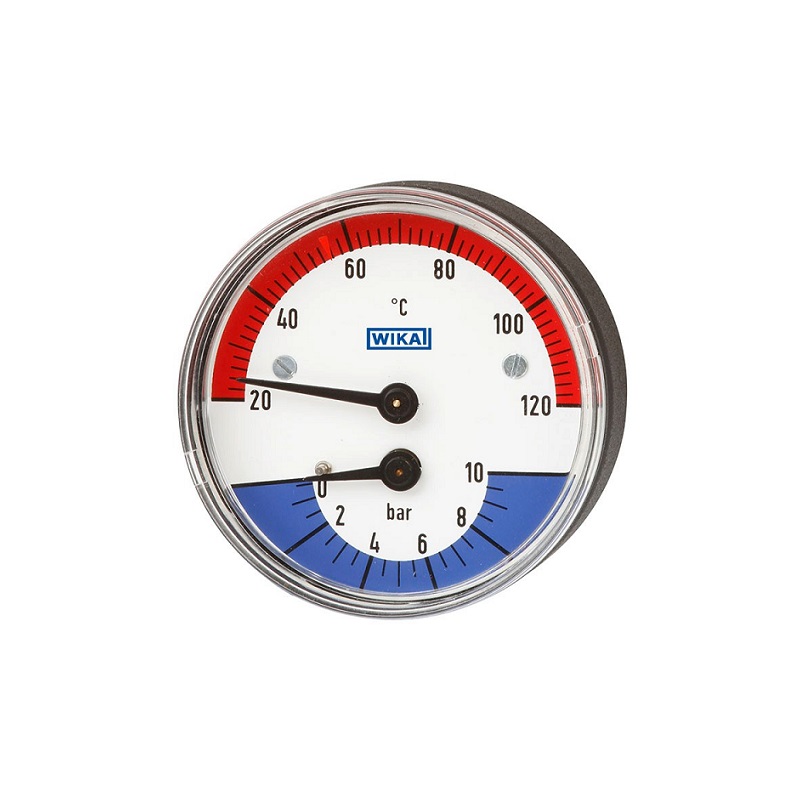

Models 100.10, 100.12: At the top temperature, at the bottom pressure

Pointer

Aluminium, black

Window

Plastic, crystal-clear, snap-fitted

Options
Other process connection
Models 100.01, 100.02: Case steel, black lacquered
Models 100.10, 100.12: Slip-on bezel steel, black or chrome plated, or stainless steel, natural finish or polished Shut-off valve, copper alloy
Model 100.10: Instrument glass (with slip-on bezel)
Other scale ranges
Special scales
