ĐỒNG HỒ ĐO ÁP SUẤT WIKA 100.02.63

Nominal size in mm: 63, 80

Accuracy class:

      Pressure: 2.5 (EN 837-1)

      Temperature: ±2.5 °C

Scale ranges:

      Pressure: 0 ... 1 to 0 ... 16 bar

      Temperature: 0 ... 100 to 0 ... 150 °C

Working ranges

Pressure:

      Steady: 3/4 x full scale value

      Fluctuating: 2/3 x full scale value

      Short time: Full scale value

Temperature:  Full scale value

Measuring elements:

      Pressure: Bourdon tube, copper alloy

      Temperature: Bimetal coil, copper alloy

Process connection:

      R 1/2 ISO 7 (male), 22 mm flats

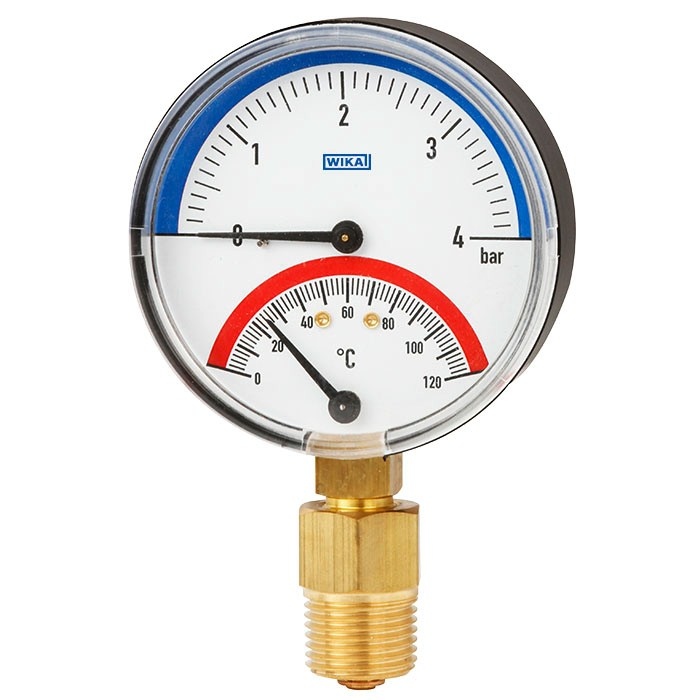

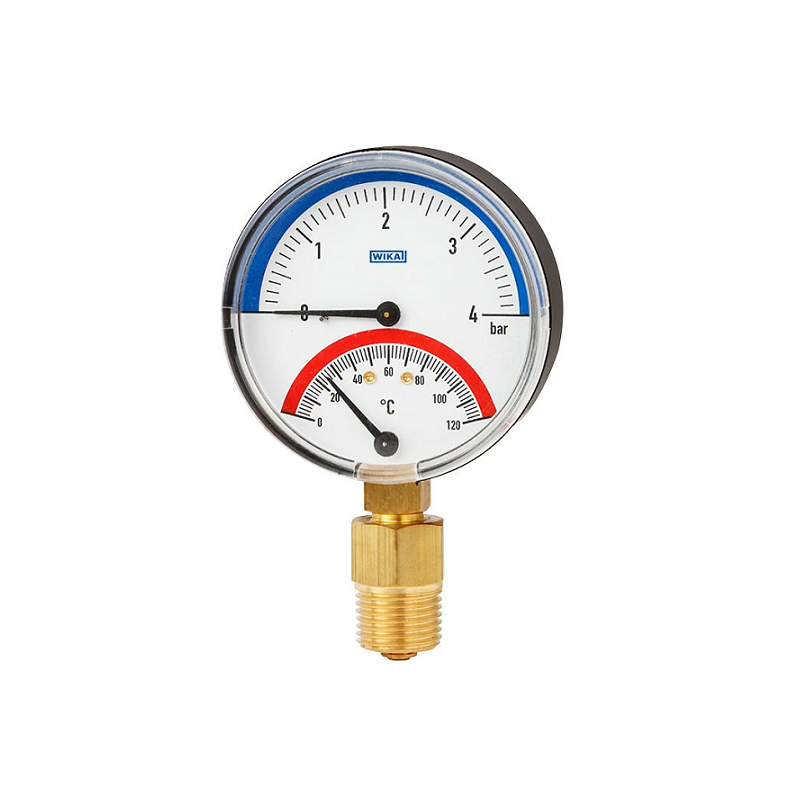

      Models 100.01, 100.10: Lower mount (LM) 1)

      Models 100.02, 100.12: Centre back mount (CBM)

Case:

      Models 100.01, 100.02: Plastic, black

      Models 100.10, 100.12: Steel, black lacquered

Movement: Copper alloy

Dial:

      Aluminium, white, black lettering

      Pressure scale marked in blue, temperature scale marked in red

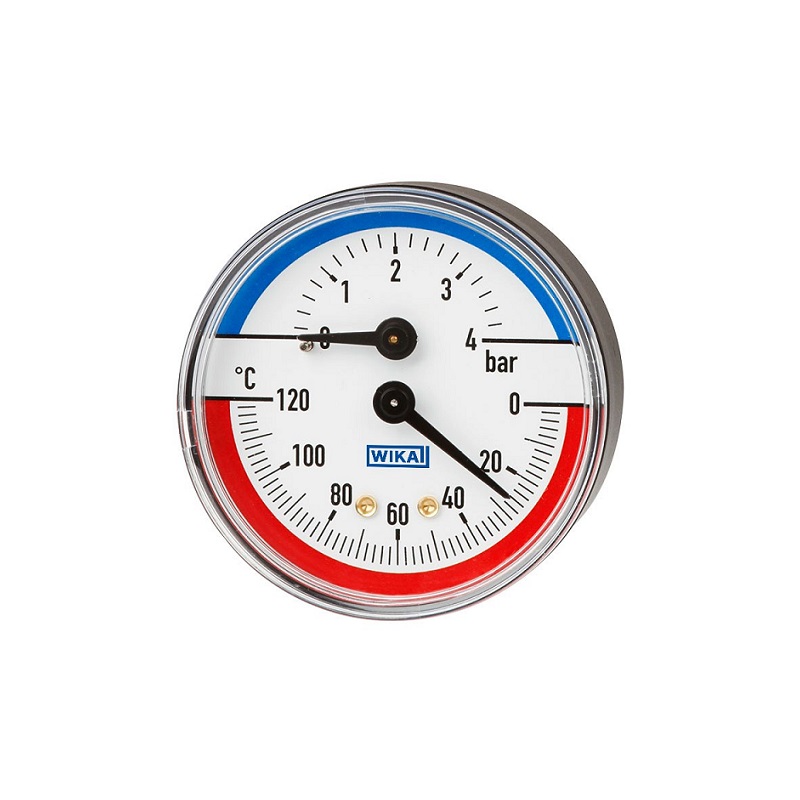

      Models 100.01, 100.02: At the top pressure, at the bottom

      Temperature (model 100.01: Temp. scale bent downward)

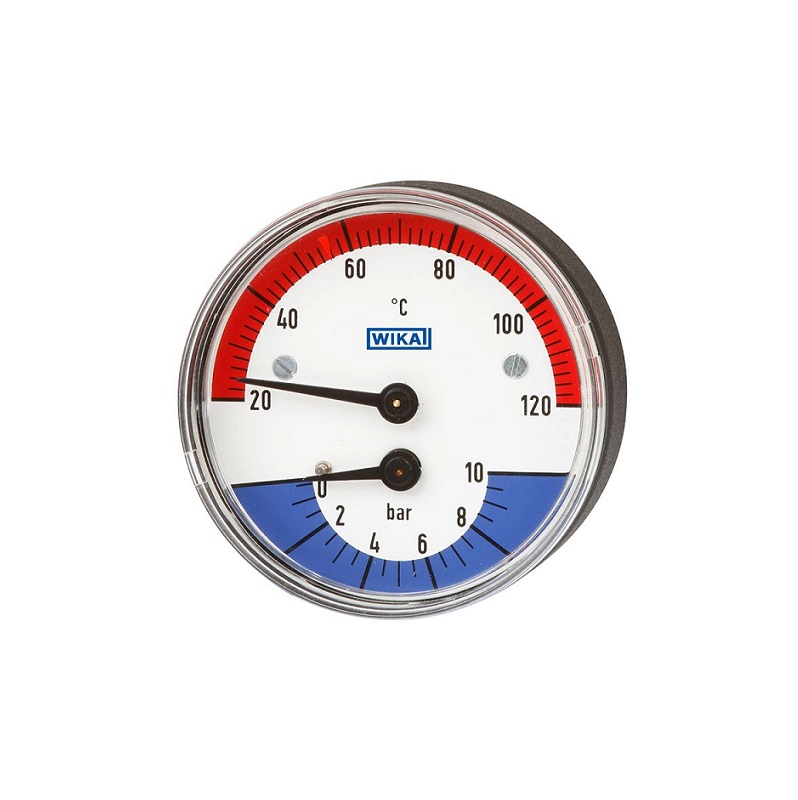

      Models 100.10, 100.12: At the top temperature, at the bottom pressure

Pointer: Aluminium, black

Window: Plastic, crystal-clear, snap-fitted

Options:
* Other process connection
* Models 100.01, 100.02: Case steel, black lacquered
* Models 100.10, 100.12: Slip-on bezel steel, black or chrome plated, or stainless steel, natural finish or polished Shut-off valve, copper alloy
* Model 100.10: Instrument glass (with slip-on bezel)
* Other scale ranges
* Special scales
