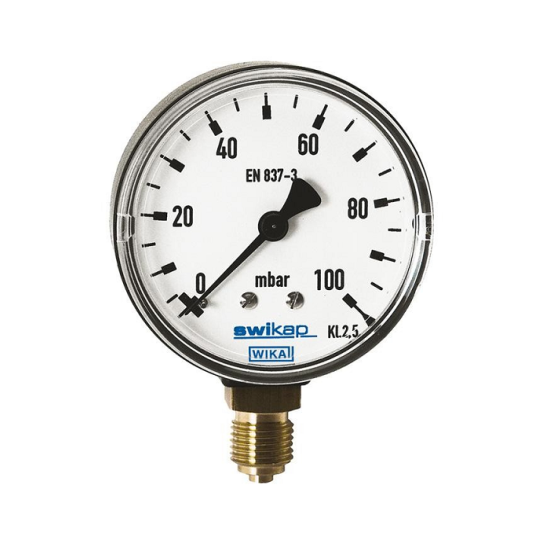

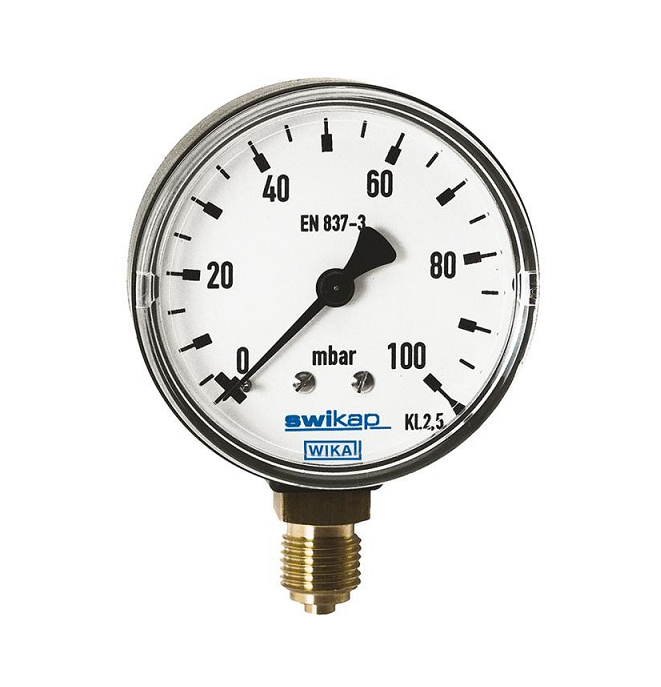

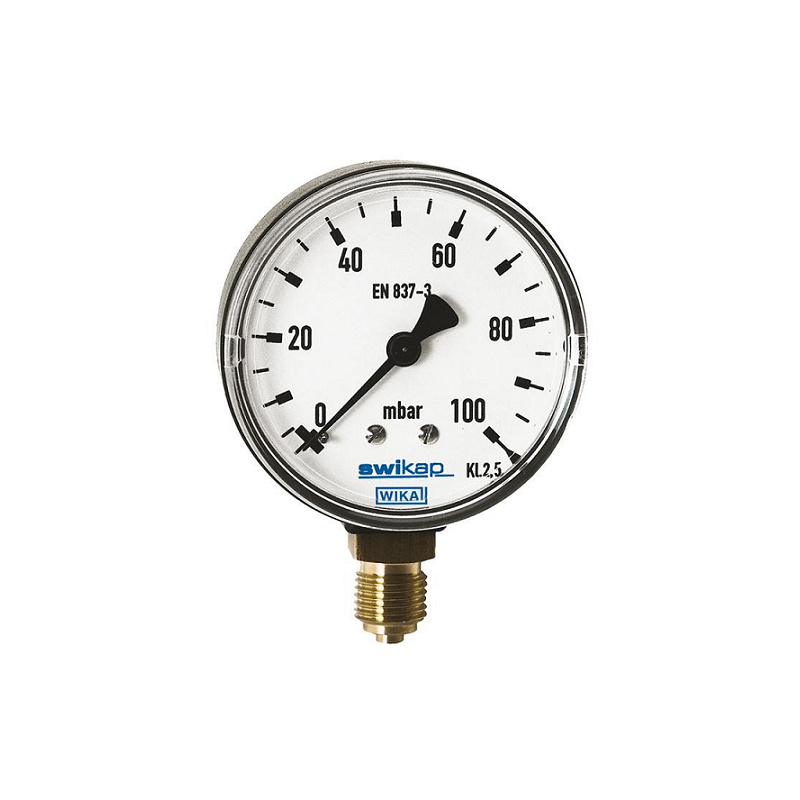

ĐỒNG HỒ ĐO ÁP SUẤT THẤP HÃNG WIKA 611.13

Applications

* Pressure gauge for use in a protected environment

* Medical, vacuum, environmental, laboratory technology, for contents measurement and filter monitoring

* For gaseous, dry and non-aggressive media

Special Features

* Compact design and ingress protection IP53

* Case from plastic

* Special connection location on request

* Low scale ranges from 0 ... 60 mbar to 0 ... 1,000 mbar or 0 ... 24 inH2O to 0 ... 400 inH2O

Description

The model 611.13 capsule pressure gauges are based upon a modular capsule measuring system. One half of the capsule element forms the plastic case and the other half is made of a copper-beryllium alloy (CuBe).

The capsule measuring principle is particularly suitable for low pressures. On pressurisation, the expansion of the capsule element, proportional to the incident pressure, is transmitted to the movement and indicated.

The modular design enables a multitude of customer-specific applications. The model 611.13 instrument is used with great success, particularly in medical engineering applications.

The scale ranges of 0 ... 60 mbar to 0 ... 1,000 mbar or 0 ... 24 inH2O to 0 ... 400 inH2O and the vacuum and +/- scale ranges ensure the measuring ranges required for a wide variety of applications.
