Applications
* Precision measurement in laboratories
* High-accuracy pressure measurement
* For gaseous, dry and non-aggressive media
* Model 630.20 also for aggressive media
Special Features
* Zero point setting in front
* Special connection location on request
* Low scale ranges from 0 ... 10 mbar or 0 ... 4 inH2O
Description

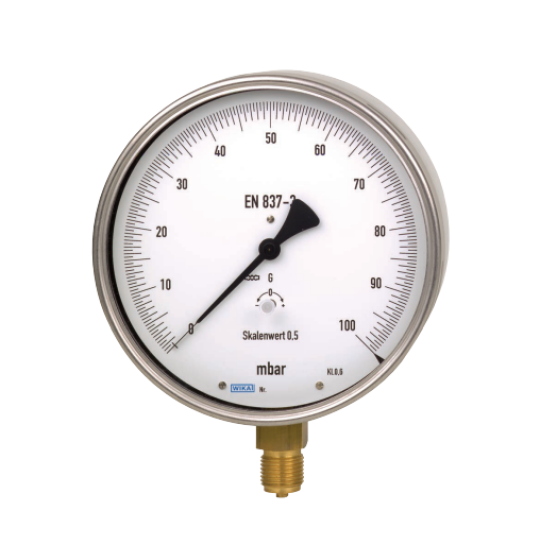

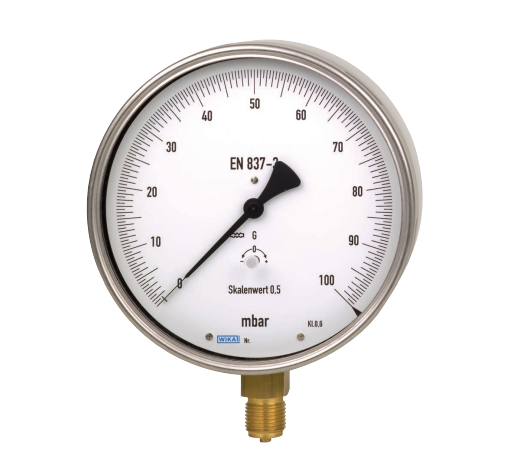

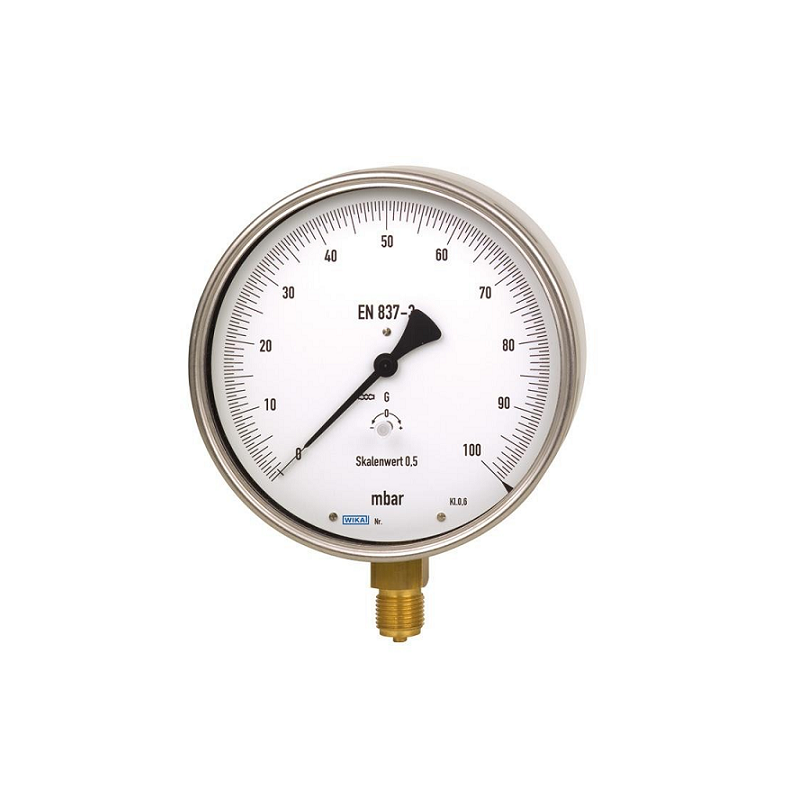

As class 0.6 test gauge series, the model 610.20 and 630.20 capsule pressure gauges are suitable for precision measurements in laboratories. They are based upon the proven capsule measuring system. On pressurisation, the expansion of the capsule element, proportional to the incident pressure, is transmitted to the movement and indicated.
The modular structure enables a multitude of combinations of case materials, process connections, nominal sizes and scale ranges. Due to this high variance, the instrument is suitable for use in a wide range of applications within industry.
For mounting in control panels, the capsule pressure gauges can, depending on the process connection, be fitted with a mounting flange or with a triangular profile ring and mounting bracket.
The scale ranges of 0 ... 10 mbar to 0 ... 600 mbar or 0 ... 4 inH2O to 0 ... 240 inH2O and the vacuum and +/- scale ranges ensure the measuring ranges required for a wide variety of applications.
