CẢM BIẾN CHÊNH ÁP YOKOGAWA MODEL EJXC40A

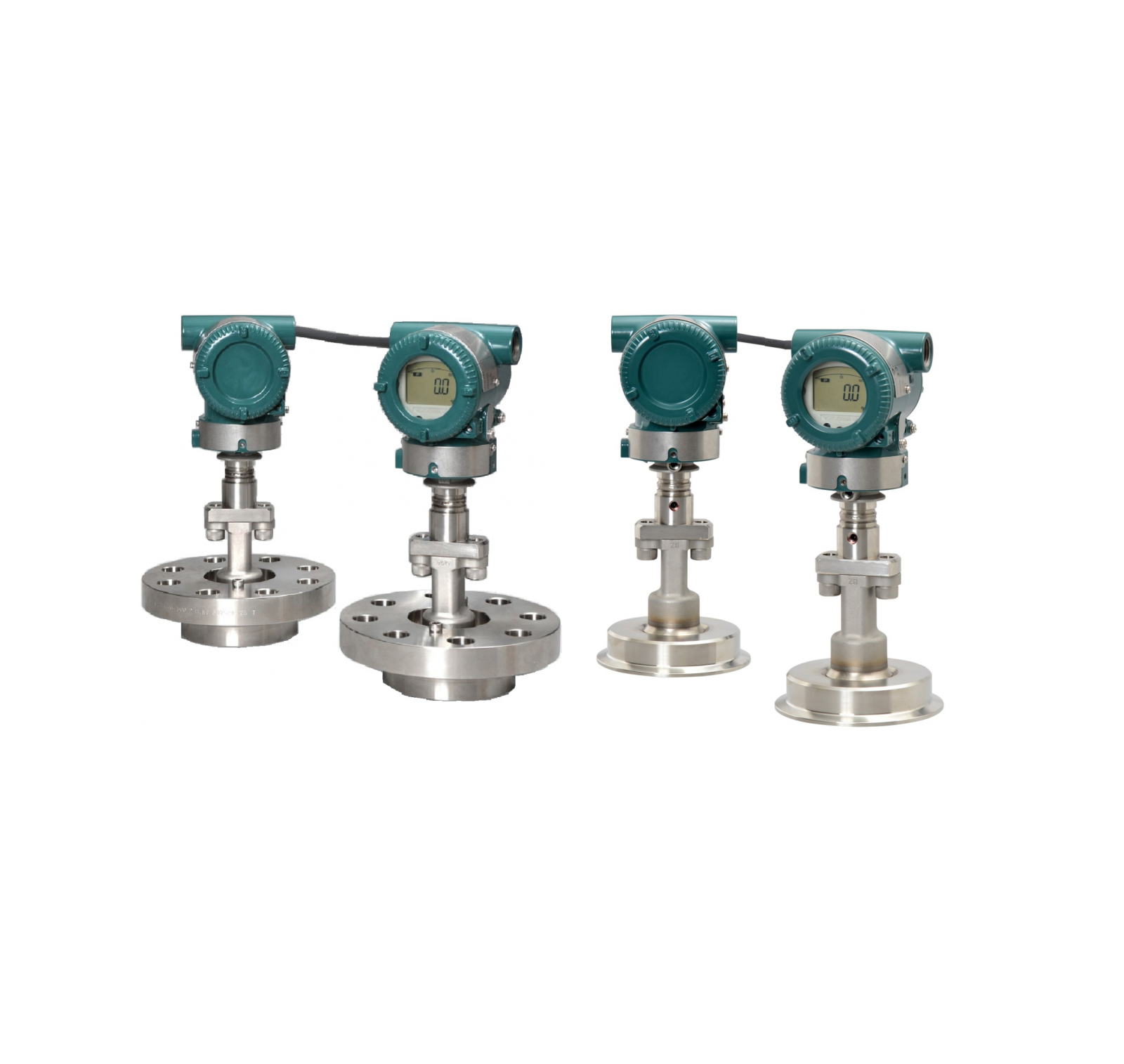

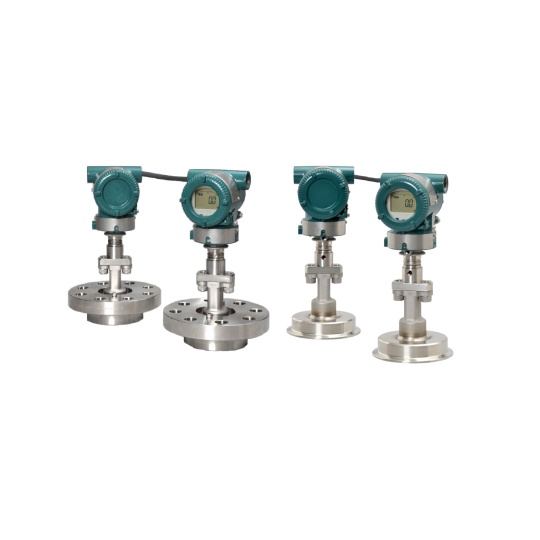

The EJXC40A Digital Remote Sensor (DRS) transmitter connects two pressure sensors, the master sensor (for high-pressure side) and remote sensor (for low-pressure side) with DRS dedicated communication cable to measure differential pressure. The DP is transmitted via a 4 to 20 mA analog signal. EJXC40A is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure.

Key Features

• High performance, high accuracy and high reliability
  Better performance over long capillaries of diaphragm seal system.
• Suitable for level measurement of a tall tank
  DRS cable length (maximum): 45 m
• Signal characterization for various tank types
• Exida SIL 2 / SIL3 Certified
