CẢM BIẾN ÁP SUẤT YOKOGAWA EJA530E

The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

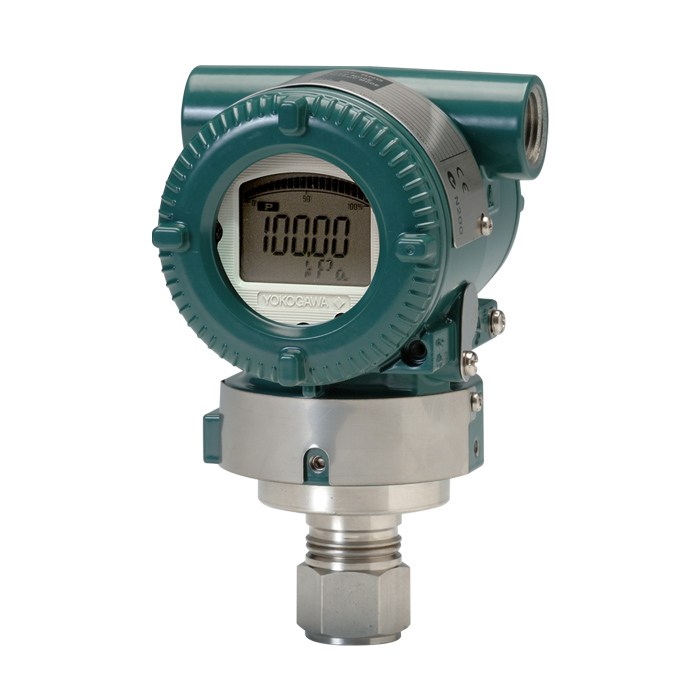

The EJA530E is our in-line mount gauge pressure transmitter in the series.

The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.
The EJA530E is our in-line mount gauge pressure transmitter in the series.

Specifications
Measurement Types
Primary Variable: Gauge Pressure
Reference Accuracy
Primary Variable: ±0.055% of Span
                            ±0.04% of Span (/HAC option)
Stability (All Normal Operating Conditions)
Primary Variable: ±0.1% of URL per 10 years
Response Time
Primary Variable: 90 msec
Rangeability
Primary Variable: A capsule 20:1
                            B, C and D capsules: 100:1
Burst Pressure (Absolute)
EJA510E: A, B, and C Capsules: 4,350 psi (30 MPa)
                 D Capsule: 19,100 psi (132 MPa)
Specification Conformance
EJX-A Series: ±3σ
