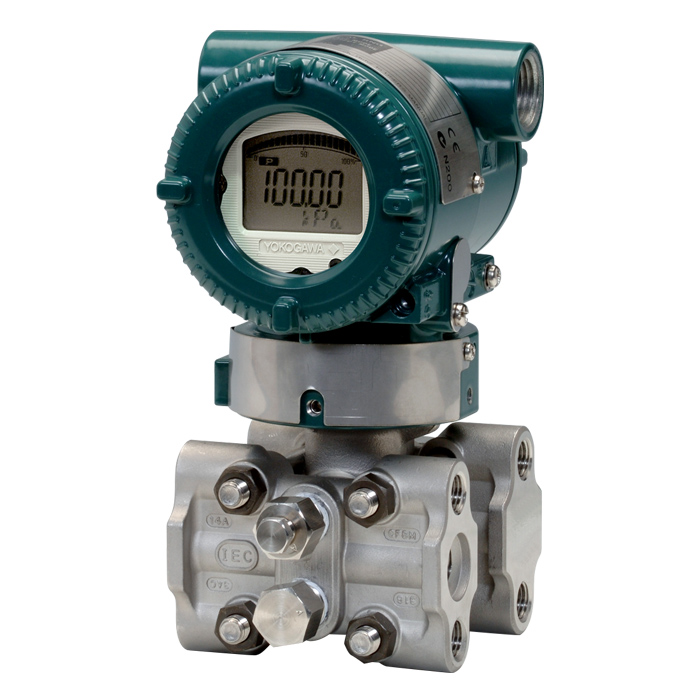

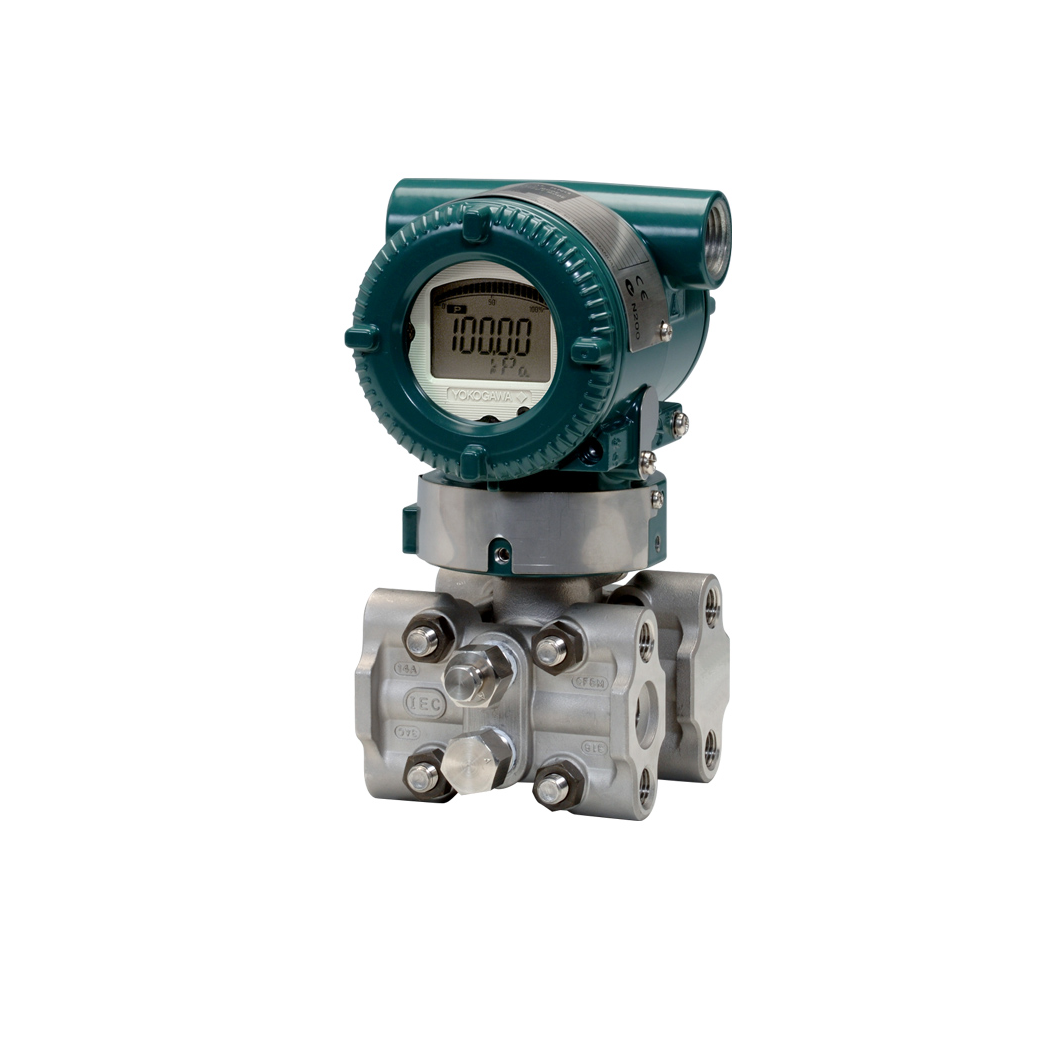

CẢM BIẾN ÁP SUẤT YOKOGAWA EJX310A
EJX310A Traditional-mount Absolute Pressure Transmitter
Nhà sản xuất: Yokogawa
The EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it a thoroughbred of the DPharp family of pressure transmitters.
The EJX310A is the traditional-mount Absolute Pressure Transmitter in the series.
Refer to the General Specification sheet located under the 'Downloads' tab for detailed specifications.
Measurement Types
Primary Variable: Absolute Pressure
Reference Accuracy
Primary Variable: ±0.075% of Span (L-Capsule)
±0.04% of Span (M, A, and B Capsule)
Stability (All Normal Operating Conditions)
Primary Variable: ±0.2% of URL per 15 years
Response Time
Primary Variable: 90ms
Rangeability
Primary Variable: L-Capsule: 20:1
M-Capsule: 100:1
A and B Capsule: 200:1
Burst Pressure (Absolute)
All Capsules: 10,000 psi (69 MPa)
Specification Conformance
EJX-A Series: ±3σ
