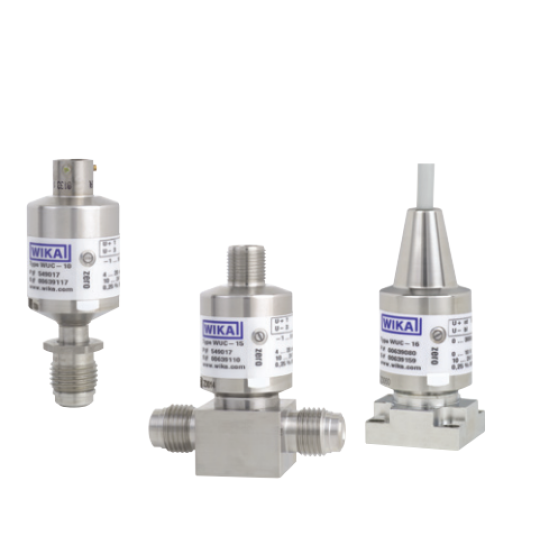

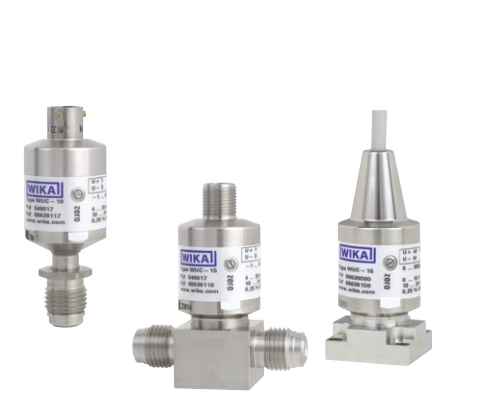

CẢM BIẾN ÁP SUẤT WIKA WUC-10, WUC-15, WUC-16

Applications

* Semiconductor, display and photovoltaic industry

* Ultrapure media and special gas systems (gas supply systems, bulk-gas supply, tank farm installations)

Special features

* Secure and fast availability

* Developed for applications in hazardous areas

* Variable: Compact design and many configurations

* Accurate measurement, even with high temperature fluctuations

Description

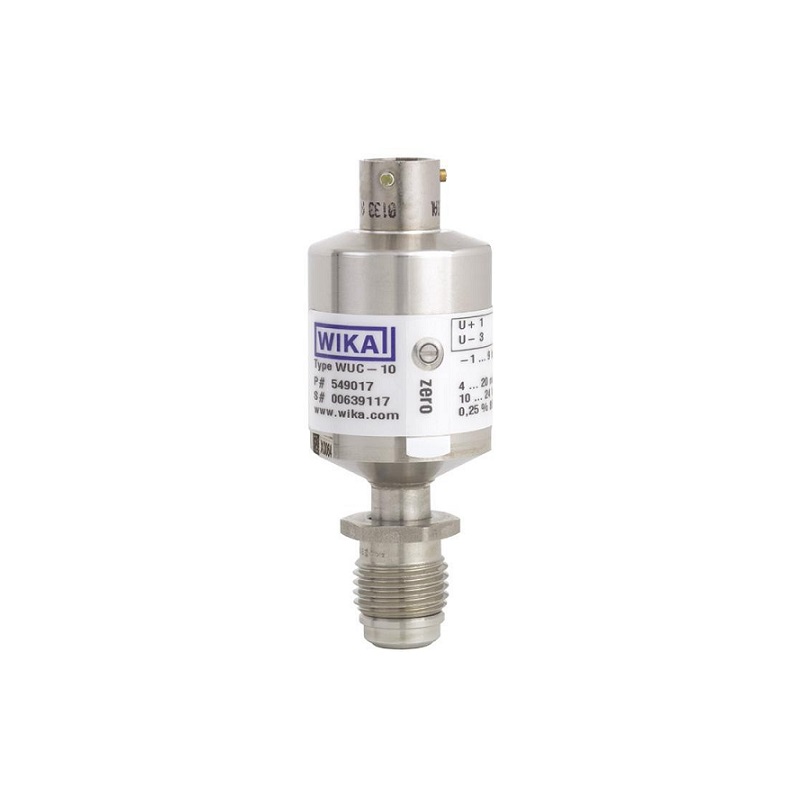

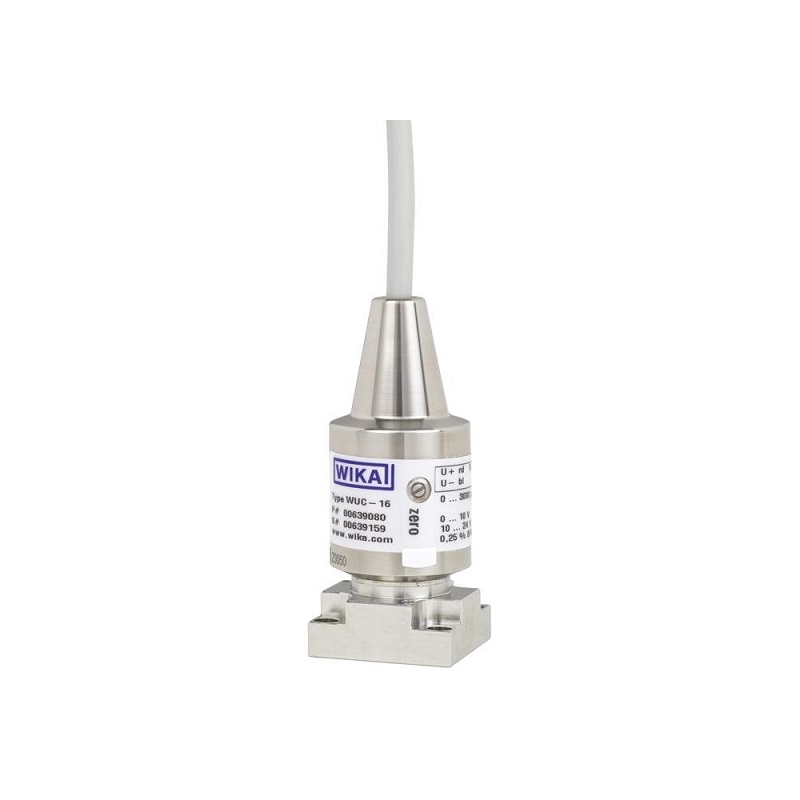

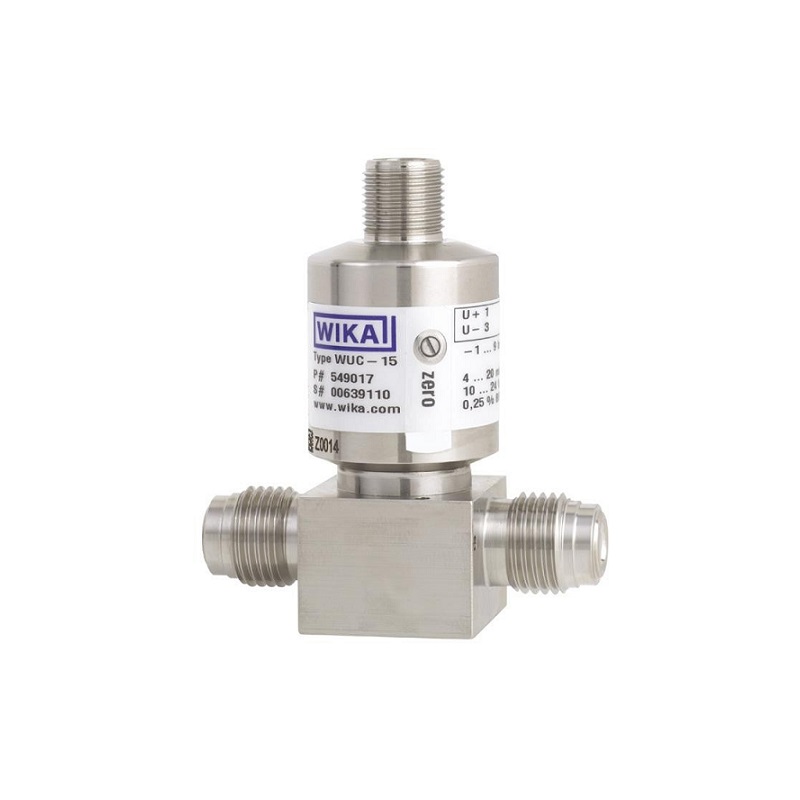

The models WUC-10, WUC-15 and WUC-16 are particularly compact, ultra high purity transducers for pressure measurement of ultrapure gases in the semiconductor industry, especially for hazardous areas. The wetted parts consist of SEMI F20-compliant, electropolished stainless steel 316L and a special 2.4711/UNS R30003 thin-film sensor. The transducers feature excellent EMC stability and a variety of electrical and process connections. The easy access side potentiometer provides convenient zero point setting. Each individual transducer is checked for leak tightness and accuracy.

Secure and fast availability: The WUC series is manufactured under clean room conditions and strictly monitored. The large production capacity guarantees maximum delivery reliability for high-volume customers. This saves time, minimises risk and increases productivity.

Developed for applications in hazardous areas: The WUC series, which was developed for hazardous areas, offers many local and international explosion protection approvals.

Variable: Compact design and many configurations
The WUC series offers the industry-standard grid dimension of 28.4 mm [1 ⅛ in] with low installation height as well as the widest range of electrical and process connections. Individually configured solutions are produced using a high degree of automation.

Accurate measurement, even with high temperature fluctuations: The active temperature compensation detects high fluctuations (cyclic pressure flushing, high gas throttling values, Joule-Thomson effect) and minimises the influences. Thus stable measurement from -20 ... +80 °C [-4 ... +176 °F] is ensured.
