CẢM BIẾN ÁP SUẤT WIKA UPT-20, UPT-21

Applications

• Control and process technology

• Machine building and plant construction

• Pharmaceutical and hygienic industries

• Food industry

• Chemical, petrochemical industry

Special features

• Multi-functional display

• Simple menu navigation

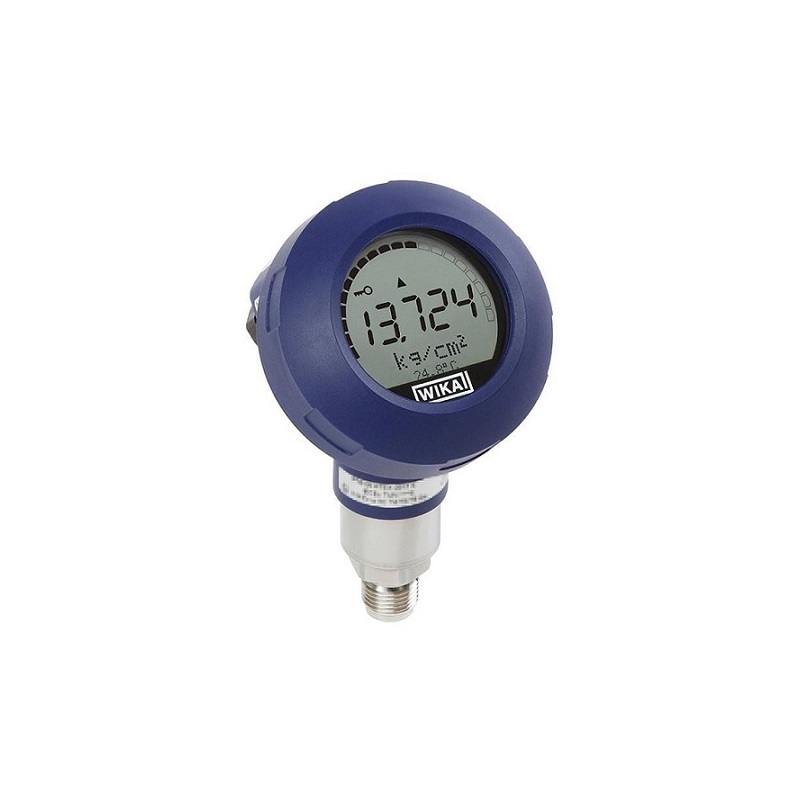

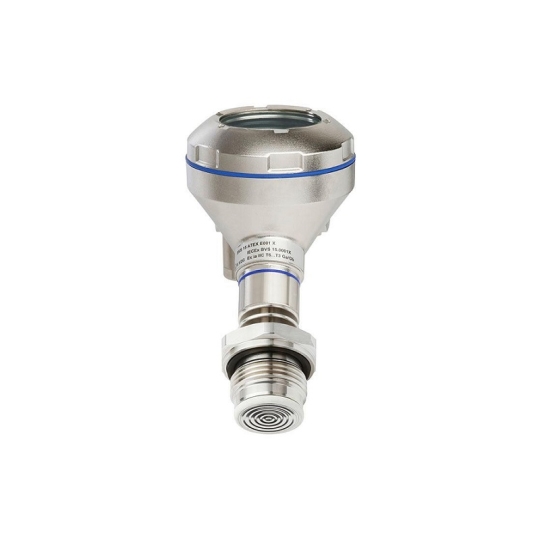

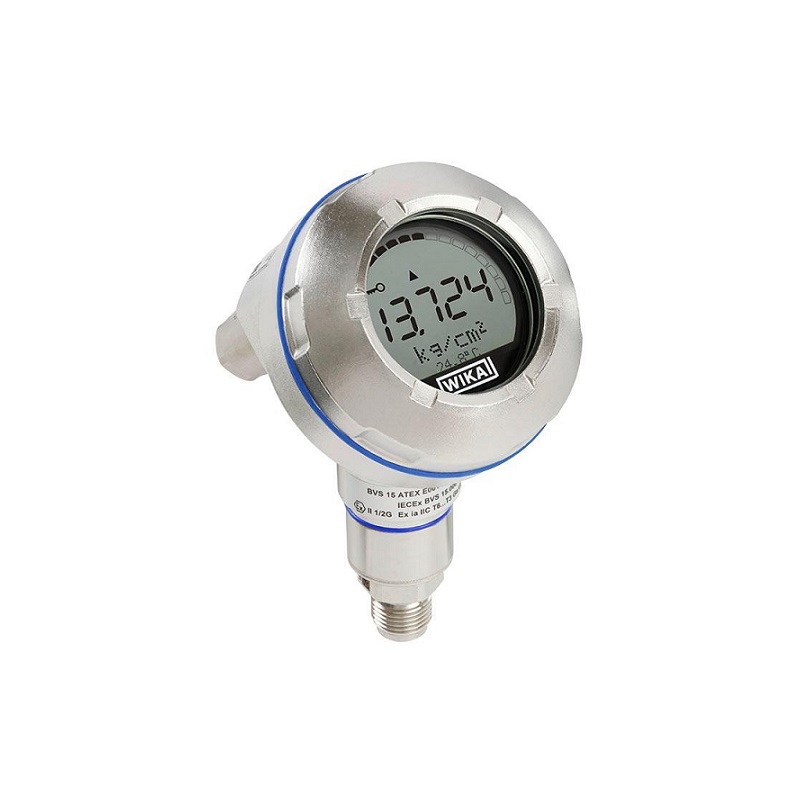

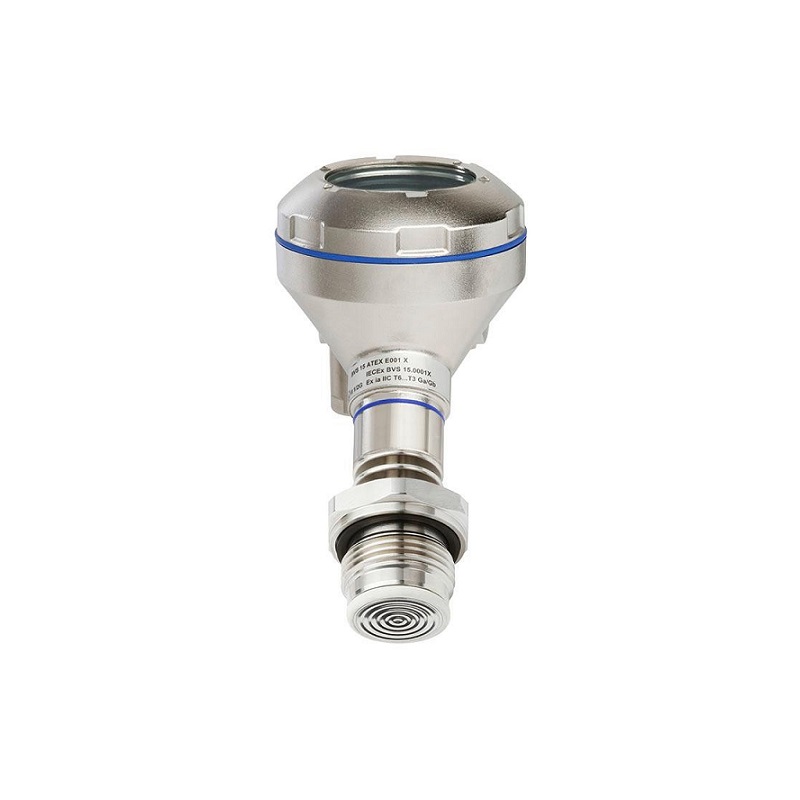

• Conductive plastic case or stainless steel case (optionally with electropolished surface)

• Large LC display, rotatable

• Approvals for hazardous areas

Description

Instrument construction
The model UPT-2x process transmitter has been developed for applications which require an intelligent sensor. Particularly the integrated temperature compensation makes the process transmitter interesting for a wide range of applications.

The measuring cell is made of stainless steel 316L or of a combination with high-quality Elgiloy^®. For specific requirements, further special materials are available.

The case is rotatable by 330° and the LC display can be mounted in different positions, displaceable in 90° steps. The LC display is easy to read in any mounting position, even from a distance of up to 5 m.

HART^® protocol
The process transmitter can be installed both in applications using analogue technique and modern systems communicating via the HART^® protocol.

Via the display and operating module or the HART^® interface this process transmitter can be configured directly on site or remotely via a process control system.

Turndown
An adjustable turndown (20:1) allows to register exact process values with optimised limits of the measuring.
