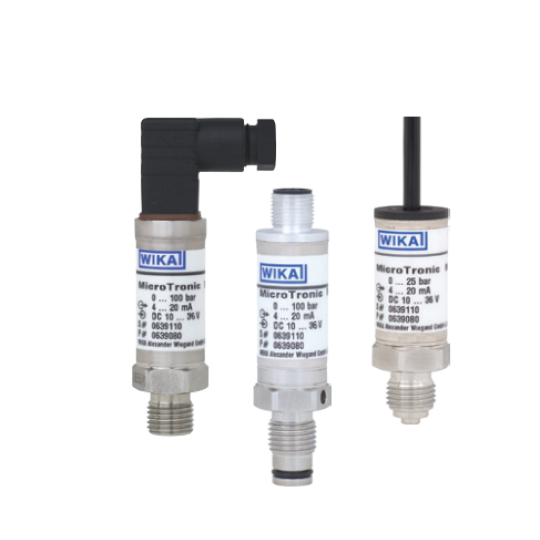

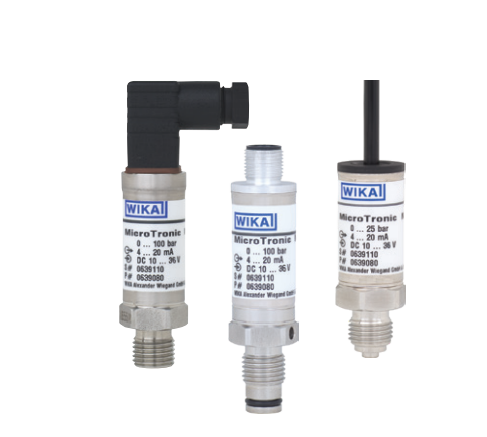

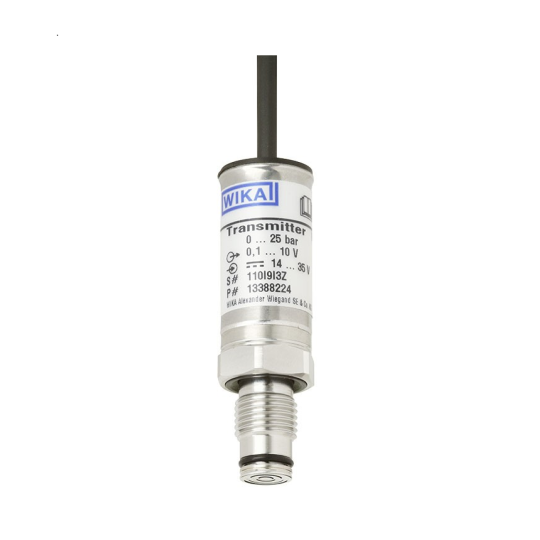

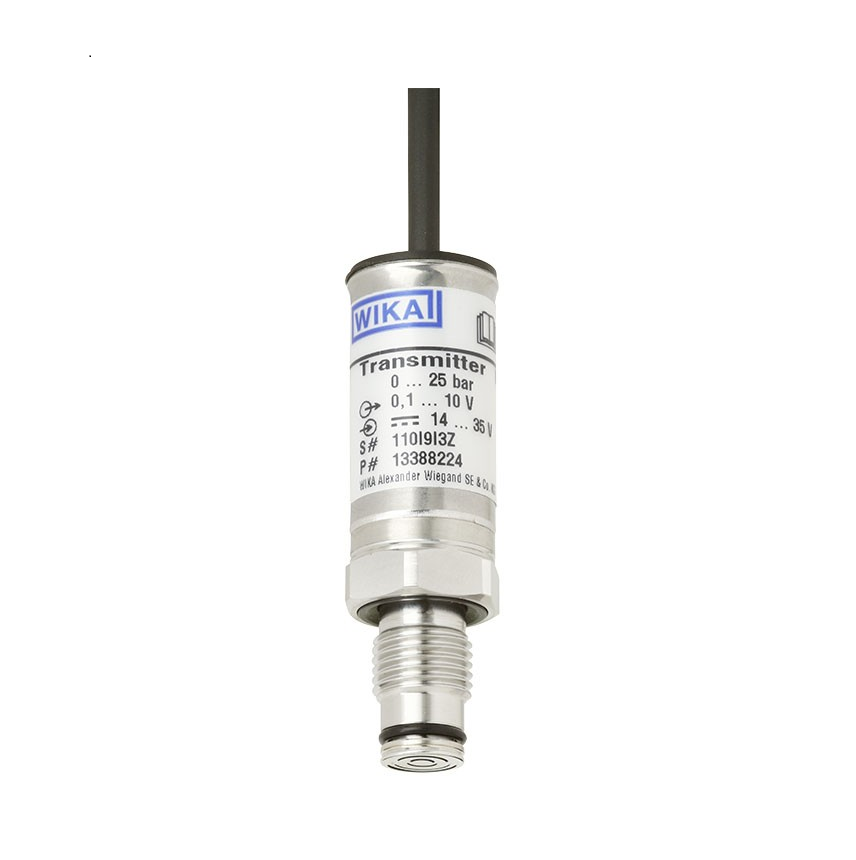

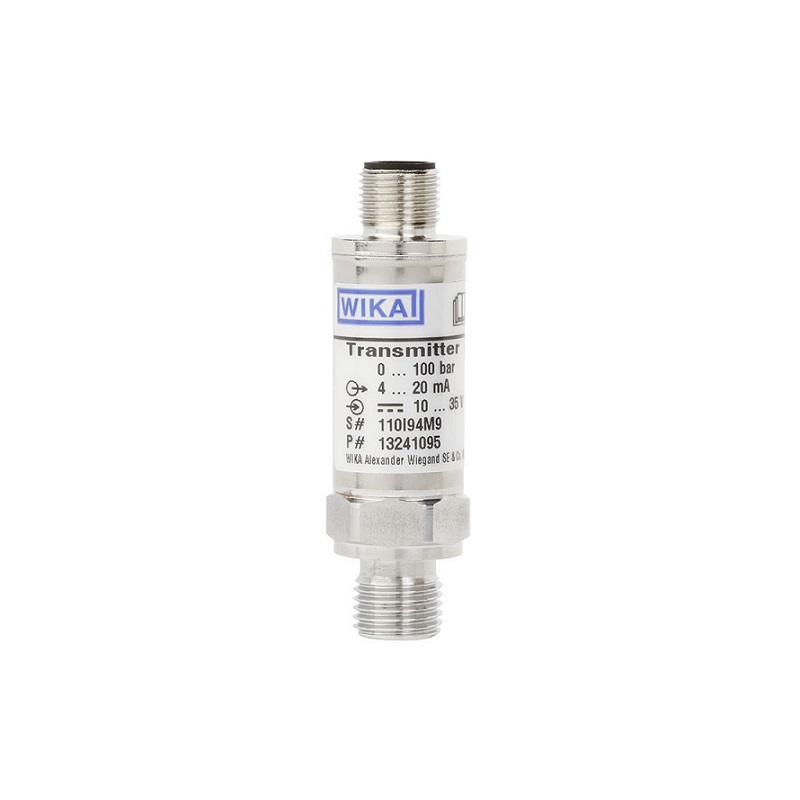

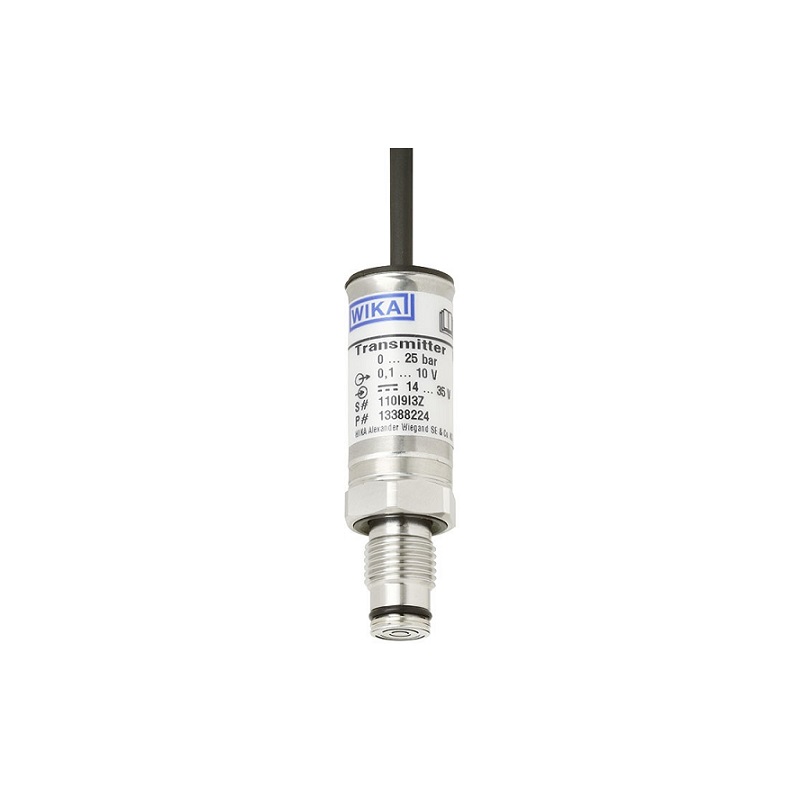

CẢM BIẾN ÁP SUẤT WIKA M-10 M-11

Applications

• Machine building

• Hydraulics and pneumatics

• General industrial applications

Special features

• Measuring ranges from 0 ... 6 to 0 ... 1,000 bar [0 ... 500 to 0 ... 15,000 psi]

• Current and voltage outputs

• Ingress protection IP65 or IP67

• Wetted parts and case from stainless steel

• Vacuum-tight

Description

Slender: The model M-10 or M-11 pressure sensor is one of the thinnest and smallest industrial pressure sensors the market. It therefore offers the ideal solution for applications where mounting space is limited.

Robust: Despite their slender and compact design, the models M-10 and M-11 are designed for high pressure ranges up to 1,000 bar [15,000 psi].

The thin-film measuring cell, through the optimised design of its process connection, guarantees a high measurement performance, even with dynamic loads and extreme pressure spikes.

Precise: The models M-10 and M-11 offer an accuracy of 0.5%. Along with an exceptional long-term stability, reliable acquisition of the measured values is ensured.

Flush: The model M-11 pressure sensor features a flush process connection, which sets it apart from other miniaturised pressure sensors.

This process connection is especially suited to measurement in highly viscous, contaminated or crystallising media.
