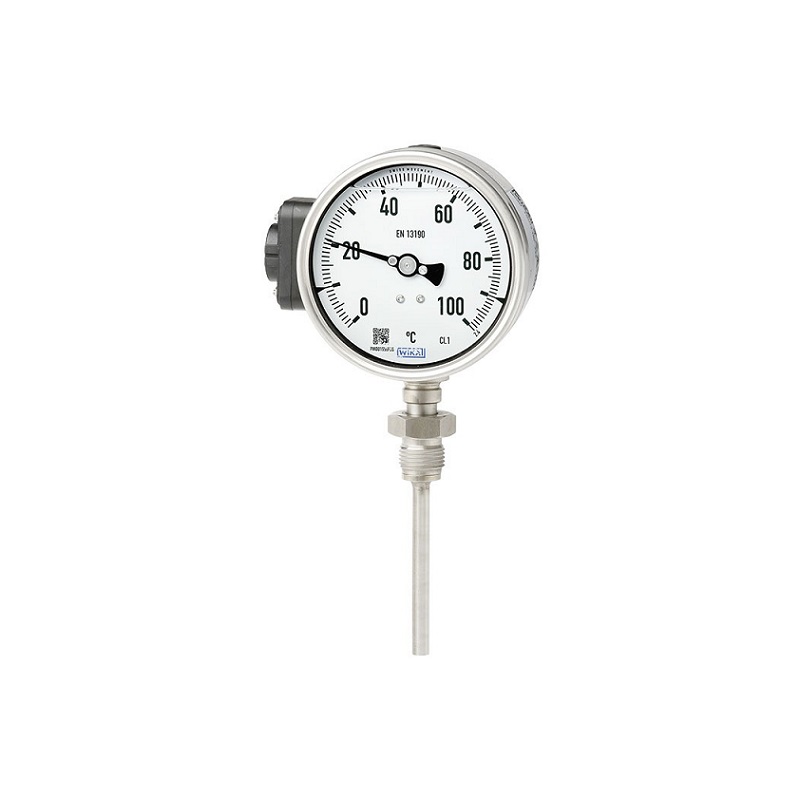

WIKA Gas-actuated thermometer for connection to WIKA radio unit Model TGU73.100

Applications

• Remote monitoring of the process temperature fornon-critical applications in combination with WIKA radio unit, model NETRIS^®3

• Process industry: oil and gas, chemical and petrochemicalindustries, power engineering, renewable energy, machine, plant and vessel construction

Special features

• IIoT-capable measuring instrument in combination with WIKA radio unit, model NETRIS^®3

• Mechanical on-site indication with integrated digital interface

• Intrinsically safe version Ex i per ATEX, IECEx

• Compact design

• Scale ranges from -200 ... +700 °C [0 ... 500 °F]

Description

The model TGU73.100 thermometer in combination with the model NETRIS^®3 radio unit is used wherever web-base dremote monitoring of the process temperature is desired in addition to on-site indication. For the operation of TGU73.100 the use of a thermowell is necessary.

The model TGU73.100 combines a mechanical measuring system with electronic signal processing and is intended for the connection to the WIKA radio unit model NETRIS^®3. In this way, cloud-based process and plant monitoring can be realised in industrial applications.

This allows a condition-based and preventive maintenance through centralised big data analysis.

Due to the wide variety of possible versions, the model TGU73.100 gas-actuated thermometer can be perfectly adapted to any process connection or location. With the adjustable stem and dial version, the case can be adjusted precisely to the desired viewing angle. With the contact bulb version (without direct contact with the medium), the temperature can be measured and monitored even when the pipe diameter is extremely small.

The WIKA measuring instrument TGU73.100 is part of the WIKA IIoT solution. With this, WIKA offers a holistic solution for your digitalisation strategy.
