WIKA Bimetal thermomanometer Models 100.0x, 100.1x

Applications

• Heating systems

• Combi-boilers with hot water and heating

Special features

• Combined indication for pressure and temperature

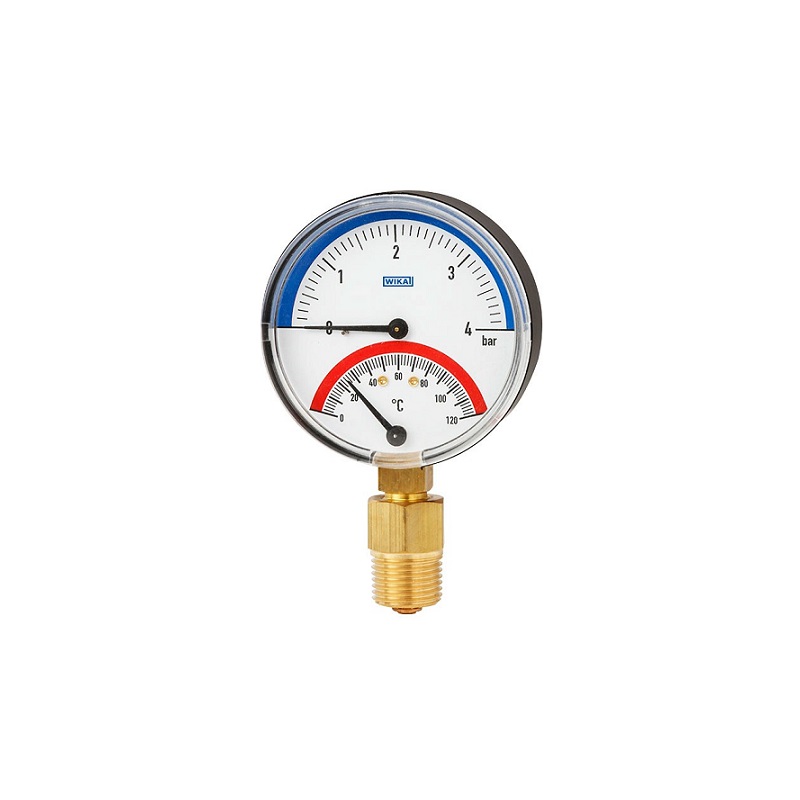

  • Model 100.01:

    • Pressure scale at the top

    • Temperature scale at the bottom

    • Scale orientation from left to right

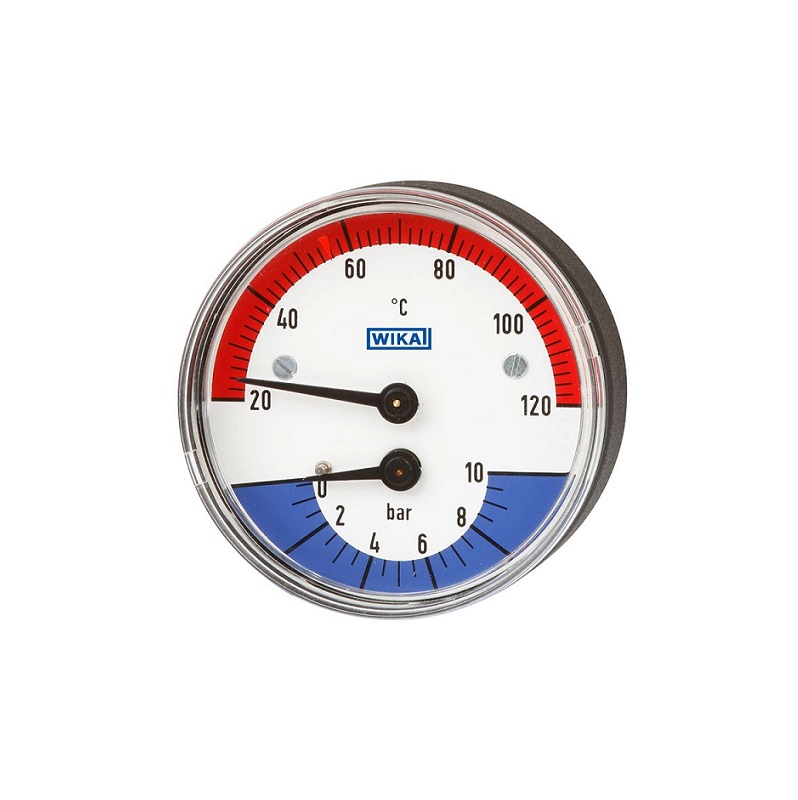

  • Model 100.02:

    • Pressure scale at the top

    • Temperature scale at the bottom

    • Pressure scale from left to right

    • Temperature scale from right to left

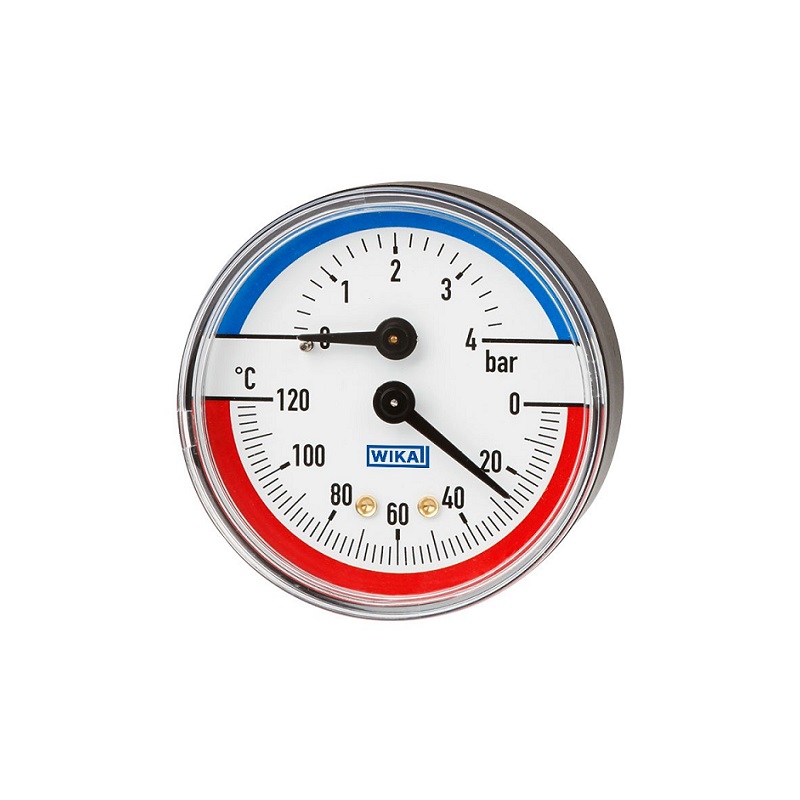

  • Model 100.10:

    • Temperature scale at the top

    • Pressure scale at the bottom

    • Scale orientation from left to right

  • Model 100.12:

    • Temperature scale at the top

    • Pressure scale at the bottom pressure scale from left to right

    • Temperature scale from right to left

  • Scale ranges to 0 ... 16 bar [0 ... 230 psi] and 0 ... 150 °C [32 ... 302 °F]

Description

Thermomanometers combine the measurement of pressure and temperature in one instrument. This enables the control of both measurands at one single measuring location. The built-in measuring elements – Bourdon tube and bimetal coil – guarantee reliable measuring results.

By using the self-sealing shut-off valve, the measuring instrument can be dismounted at any time and without having to empty the heating circuit first. The bimetal thermomanometer is delivered with a shut-off valve as standard. WIKA manufactures and qualifies this instrument in accordance with the standard EN 837-1.
