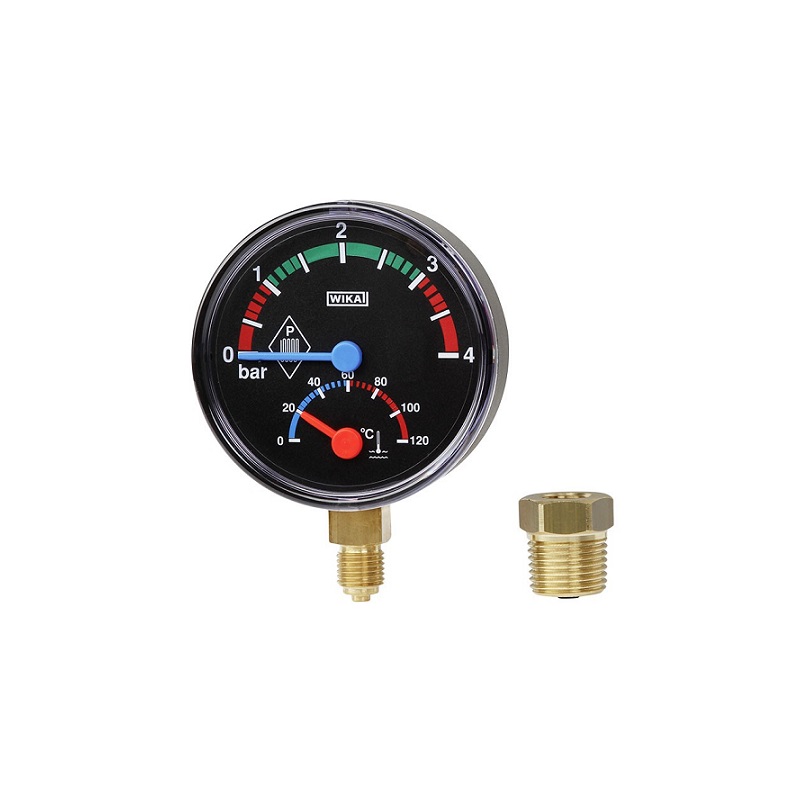

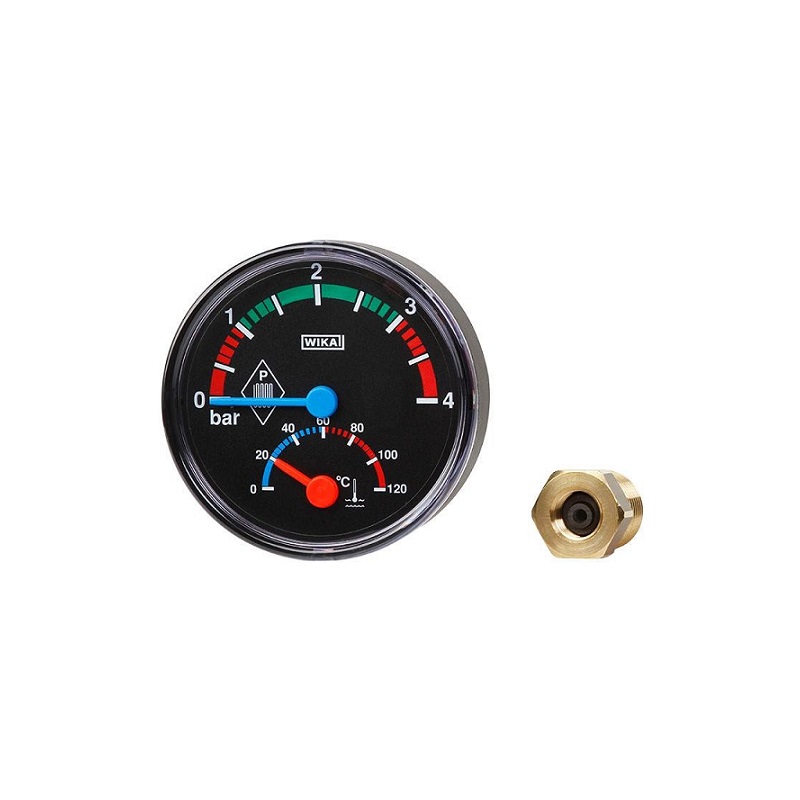

WIKA Bimetal thermomanometer Eco Model THM10

Applications

• Heating systems

• Combi-boilers with hot water and heating

Special features

• Combined indication for pressure and temperature

• Scale ranges to 0 ... 10 bar [0 ... 150 psi] and 0 ... 120 °C [32 ... 248 °F]

• Shut-off valve included in delivery

Description

The model THM10 thermomanometer combines the measurement of pressure and temperature in one instrument. This enables the control of both measureands at one single measuring location. The built-in measuring elements - Bourdon tube and bimetal coil - provide for reliable measuring results.

By using the self-sealing shut-off valve, the measuring instrument can be dismounted at any time and without having to empty the heating circuit first. The bimetal thermomanometer is delivered with a shut-off valve as standard. WIKA manufactures and qualifies this instrument in accordance with the standards EN 837-1 and EN 13190.
