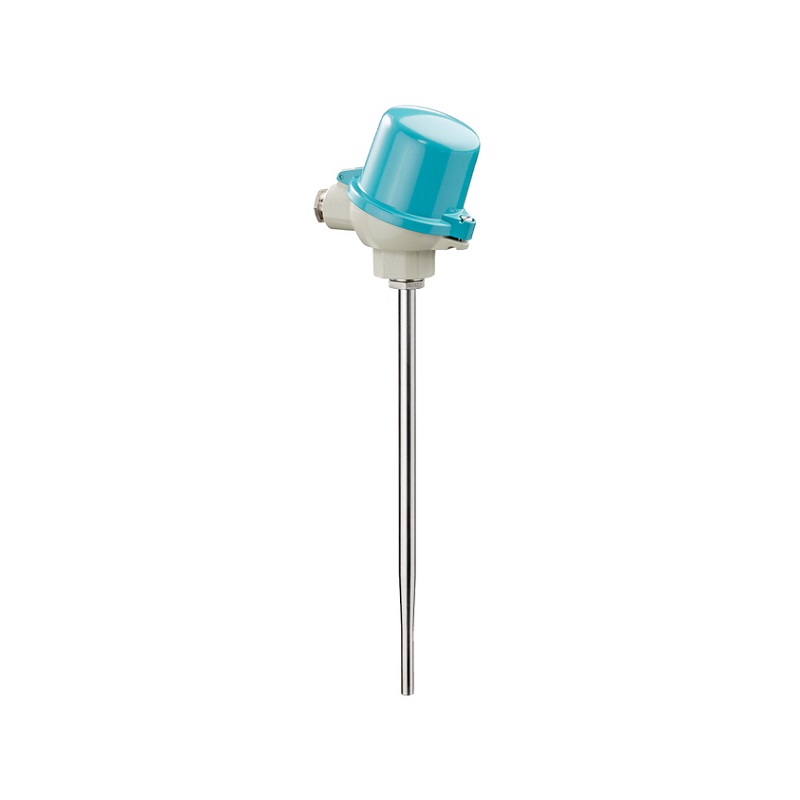

SIEMENS SITRANS TS500 Type 3, fast response, without process connection

SITRANS TS500 are temperature sensors for a wide range of measurement applications - from simple to complex, e.g. for harsh environments. The modular design of the system with a protective tube made of tubular or solid material, an extension, a connection head, an optional transmitter or a display enables the use of standard components. Intrinsically safe or flameproof designs are also available.

Detail

Output: direct sensor signal

             4…20 mA (TH100/TH320)

             HART (TH320)

             PA (TH420)

             FF (TH420)

Max. operation temperature

- measuring point: Pt 100 Basic: –50 ... +400 °C (-58 ... +752 °F)

                              Pt 100 Extended: –196 ... +600 °C (-321 ... +1 112 °F)

                              Thermocouple: -40 .. .+1250 °C (-40 ... +2282 °F) (Depending on type of TC and thermowell)

- connection head: -40 … +100 °C (+85 °C with transmitter)

Ingress protection: IP54-68, depending on the type of connection head and cable gland

Approvals: General Purpose (FM, CSA) for use in hazardous locations ATEX, IECEx, cCSAus, NEPSI, EAC, KOSHA for use in marine applications DNV

Benefits

• Exchangeable during operation

• Wide application range due to modular design

• Explosion protection by the ignition protection types, intrinsically safe Ex i (IS), increased safety Ex e (NI) or flameproof enclosure Ex d (XP) resp dust protection by means of enclosure Ex t (DIP)
• Certificates for major markets

• With optional local indicator and operation
