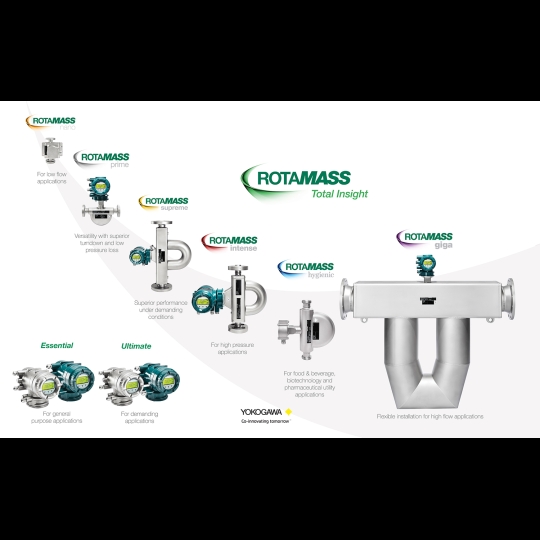

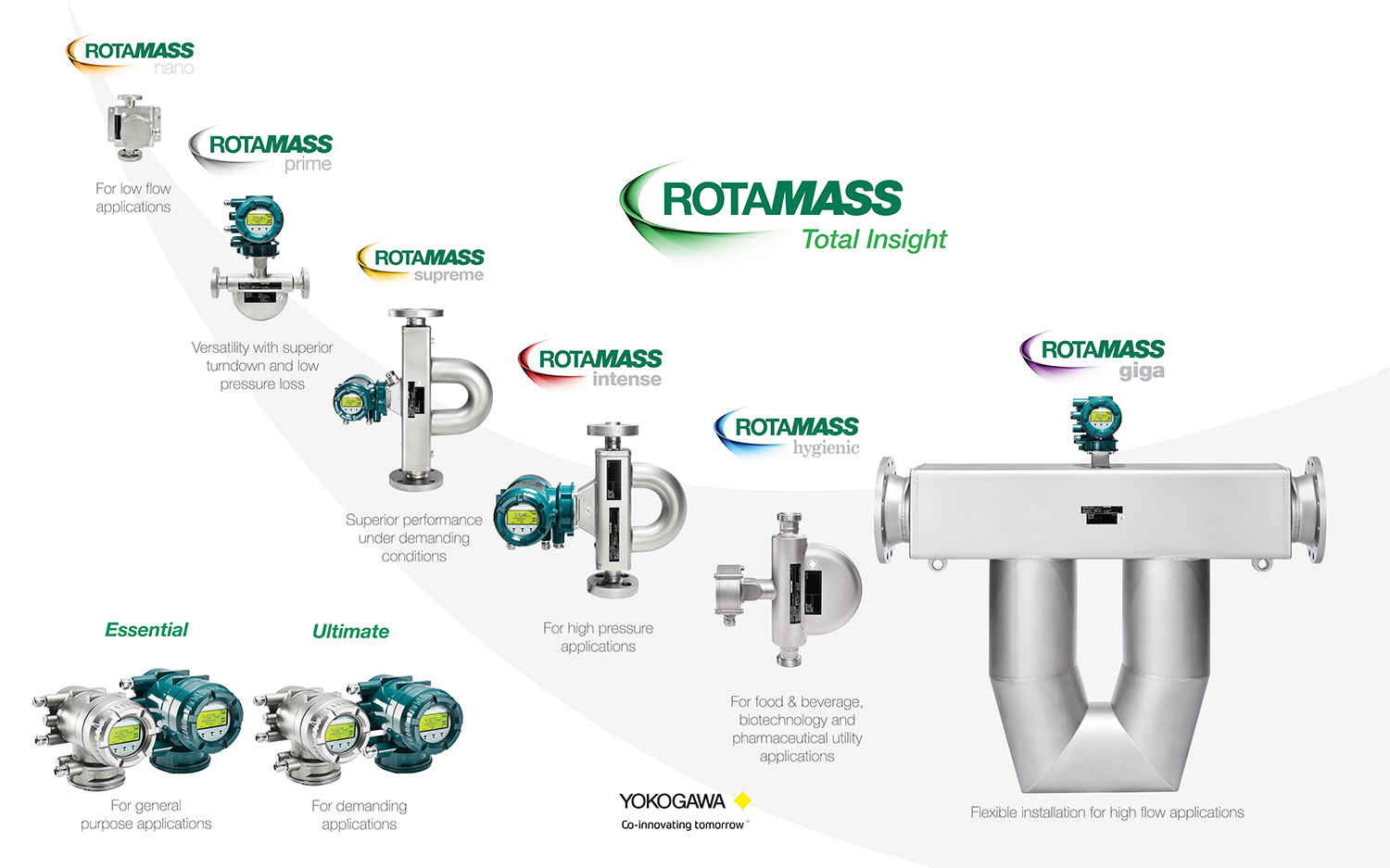

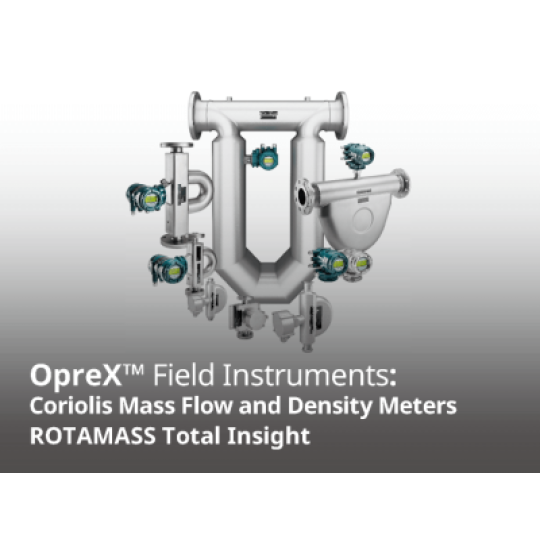

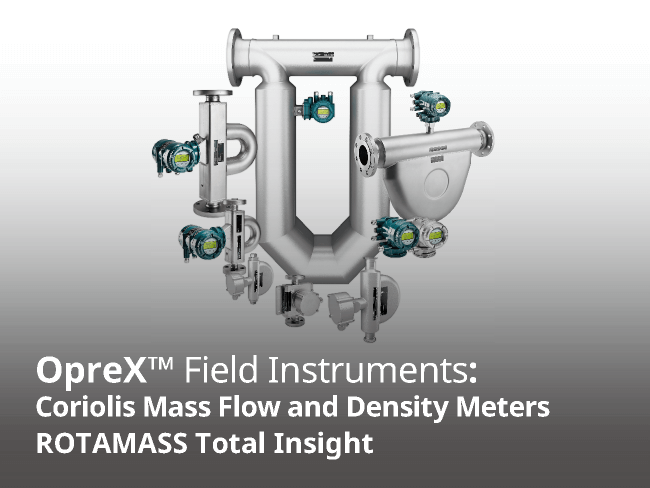

ROTAMASS Total Insight Coriolis Mass Flowmeter

* Rotamass Nano

For low flow rate applications

Meter sizes: Nano 06, Nano 08, Nano 10, Nano 15,

Nano 20

Connection sizes:

- DN15, DN25, DN40

- ¼", ⅜", ½", ¾", 1", 1½"

Maximum mass flow: 1.5 t/h (55 lb/min)

* Rotamass Prime

Versatility with superior turndown and low pressure

loss

Meter sizes: Prime 25, Prime 40, Prime 50, Prime 80,

Prime 1H

Connection sizes:

- DN15, DN25, DN40, DN50, DN80, DN100, DN125

- ⅜", ½", ¾", 1", 1½", 2", 2½", 3", 4", 5"

Maximum mass flow: 255 t/h (9400 lb/min)

* Rotamass Supreme

Excellent performance under demanding conditions

Meter sizes: Supreme 34, Supreme 36, Supreme 38,

Supreme 39

Connection sizes:

- DN15, DN25, DN40, DN50, DN65, DN80, DN100,

DN125

- ⅜", ½", ¾", 1", 1½", 2", 2½", 3", 4", 5"

Maximum mass flow: 170 t/h (6200 lb/min)

* Rotamass Intense

For high process pressure applications

Meter sizes: Intense 34, Intense 36, Intense 38

Connection sizes:

- ⅜", ½", ¾", 1", 2"

Maximum mass flow: 50 t/h (1800 lb/min)

* Rotamass Hygienic

For food, beverage and pharmaceutical applications

Meter sizes: Hygienic 25, Hygienic 40, Hygienic 50,

Hygienic 80

Connection sizes:

- DN25, DN40, DN50, DN65, DN80

- 1", 1½", 2", 2½", 3"

Maximum mass flow: 76 t/h (2800 lb/min)

* Rotamass Giga

For high flow rate applications

Meter sizes: Giga 1F, Giga 2H

Connection sizes:

- DN100, DN125, DN150, DN200

- 4", 5", 6", 8"

Maximum mass flow: 600 t/h (22000 lb/min)
