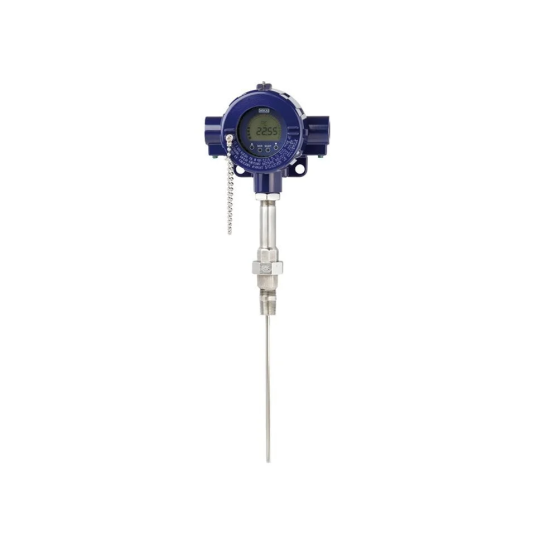

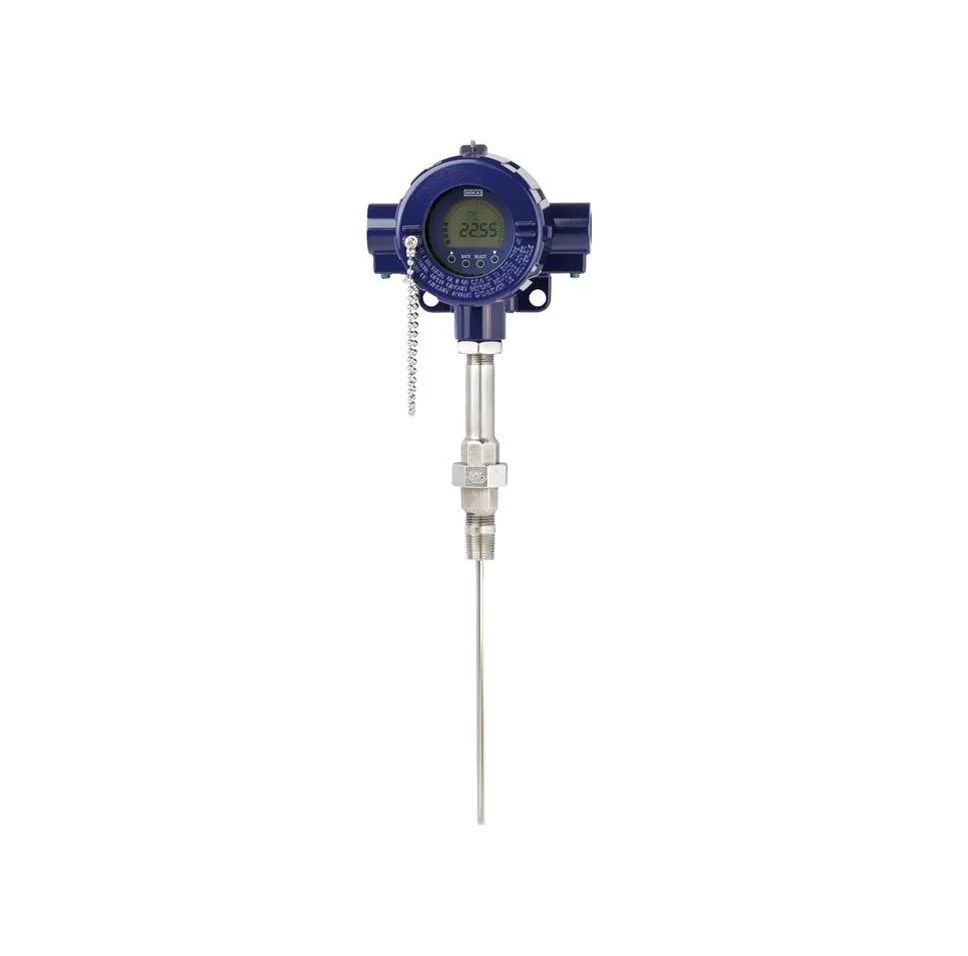

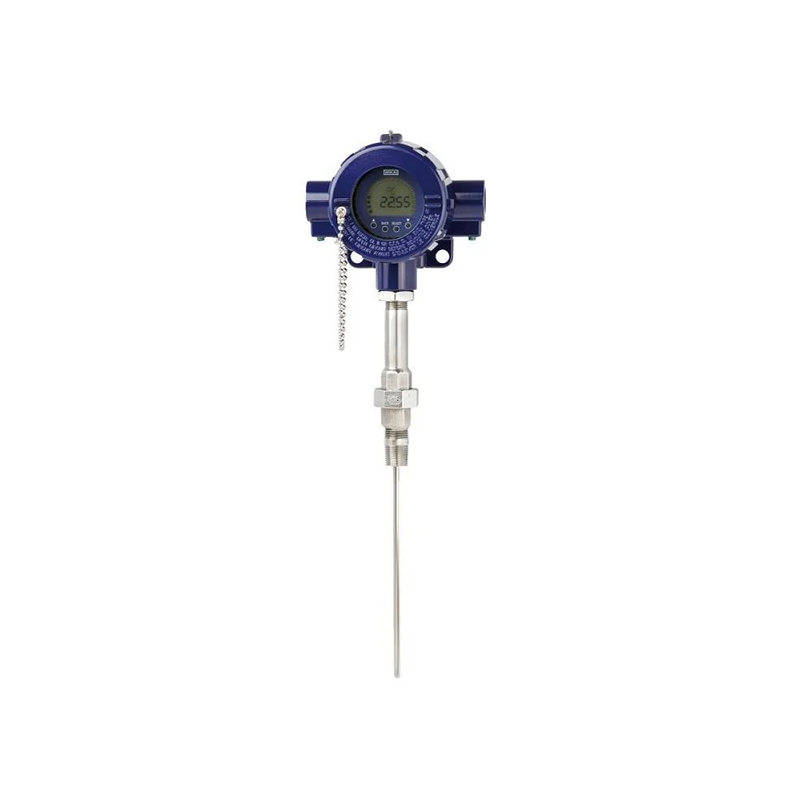

Process thermocouple WIKA Models TC12-B, TC12-M

Applications

• Chemical industry

• Petrochemical industry

• Offshore

• Plant and vessel construction

Special features

• Application ranges from -40 ... +1,200 °C [-40 ... +2,192 °F]

• For many variants of temperature transmitters including field transmitter

• For mounting in all standard thermowell designs

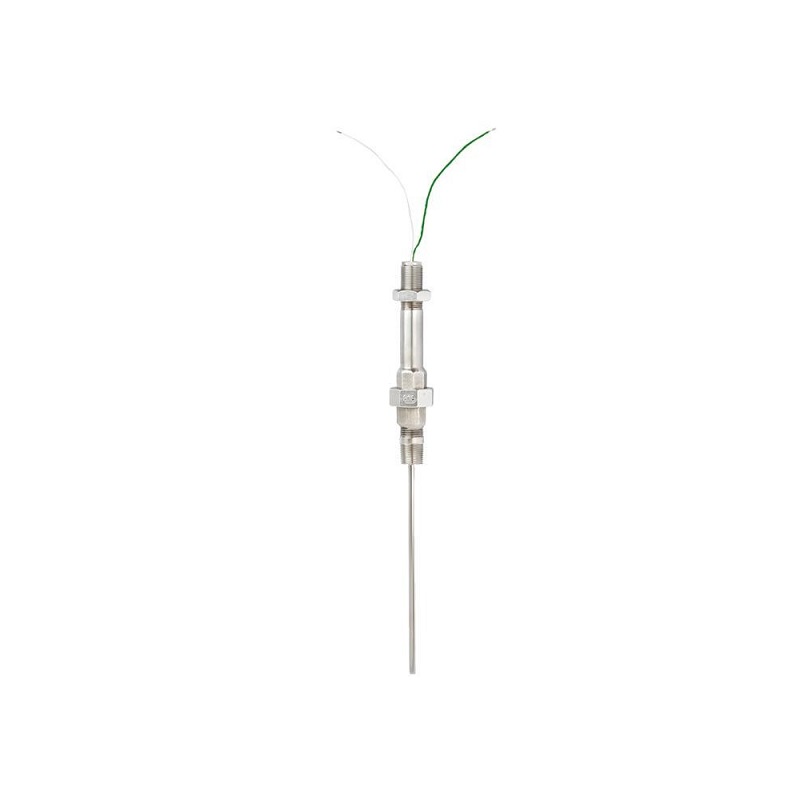

• Spring-loaded measuring insert (replaceable)

• Explosion-protected versions

Description

Thermocouples in this series can be combined with a large number of thermowell designs. The replaceable, centrically spring-loaded measuring insert and its extended spring travel enable combination with the widest range of connection head designs.

A wide variety of possible combinations of sensor, connection head, insertion length, neck length, connection to thermowell etc. are available for the thermometers; suitable for any thermowell dimension and any application. Operation without thermowell is only recommended in certain applications.
