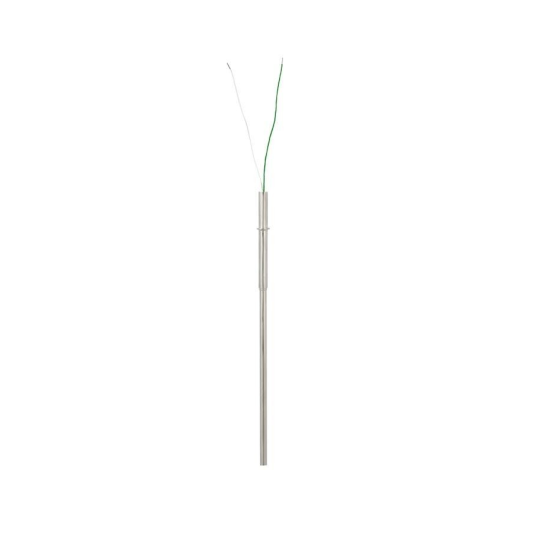

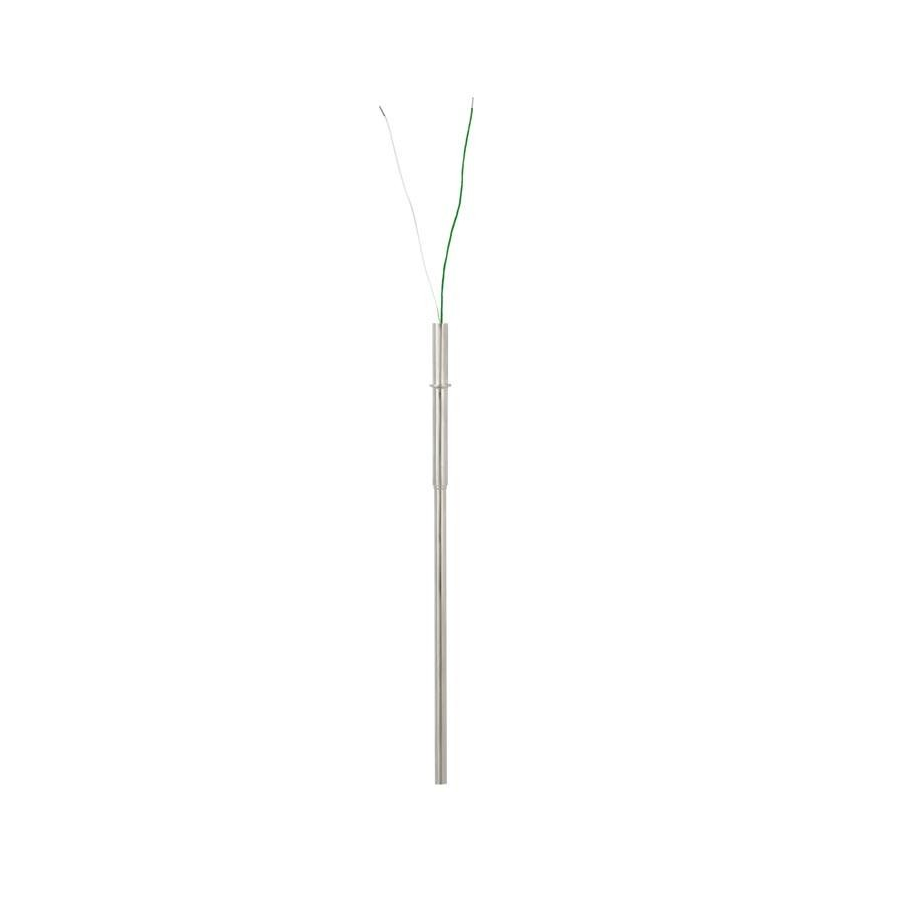

Measuring insert for process thermocouple WIKA Model TC12-A

Applications

• Replacement measuring insert for servicing

Special features

• Application ranges from 0 ... 1,200 °C [32 ... 2,192 °F]

• Made of mineral-insulated sheathed cable

• Explosion-protected versions

Description

The measuring inserts described here are intended for installation in model TC12-B or TC12-M process resistance thermometers (see figures at right). Operation without thermowell is appropriate only in special cases.

The measuring insert is made of flexible, mineral-insulated sheathed cable. The sensor is located in the tip of the measuring insert. Type of sensor, number of sensors and accuracy can each be selected to suit the respective application.
